Trunk / Liftgate Striker: Service and Repair

LATCH STRIKER

REMOVAL

1. Remove the trunk rear trim panel. Refer to Trim Panel.

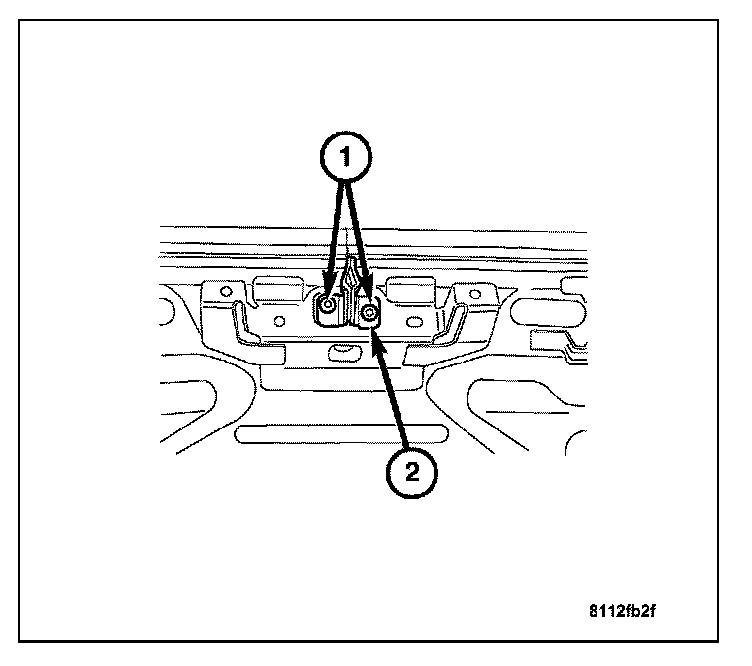

2. Remove the bolts (1) attaching the striker (2) to the vehicle.

INSTALLATION




1. Align the striker (2) to the witness marks in the paint then install the striker's bolts (1). Tighten to 10 N.m (88 in.lbs.).
2. Install the trunk rear trim panel.
