Front Door Limiter: Service and Repair

CHECK STRAP

REMOVAL

1. Remove the door trim panel.

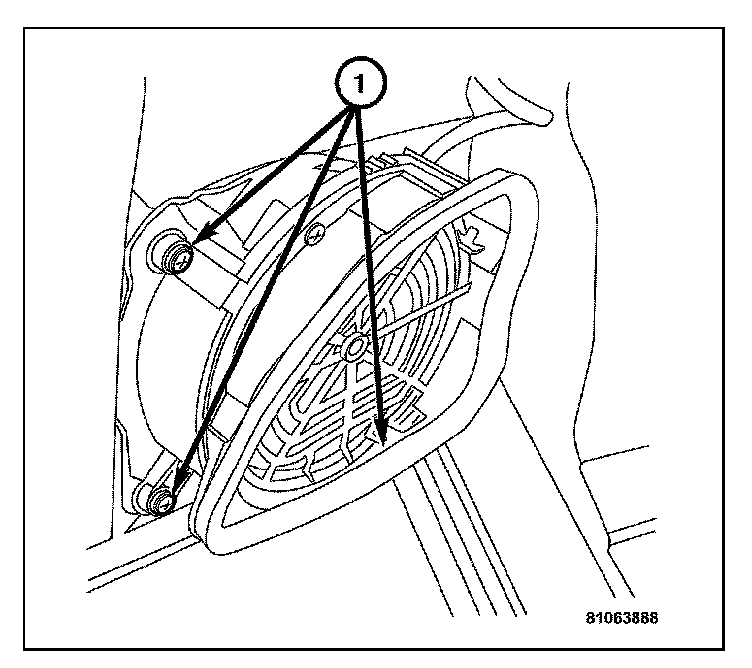

2. Remove the door speaker by removing the screws (1) attaching it to the door.
3. Remove the door foil from the inner door panel front area. Replace any damaged door foil.

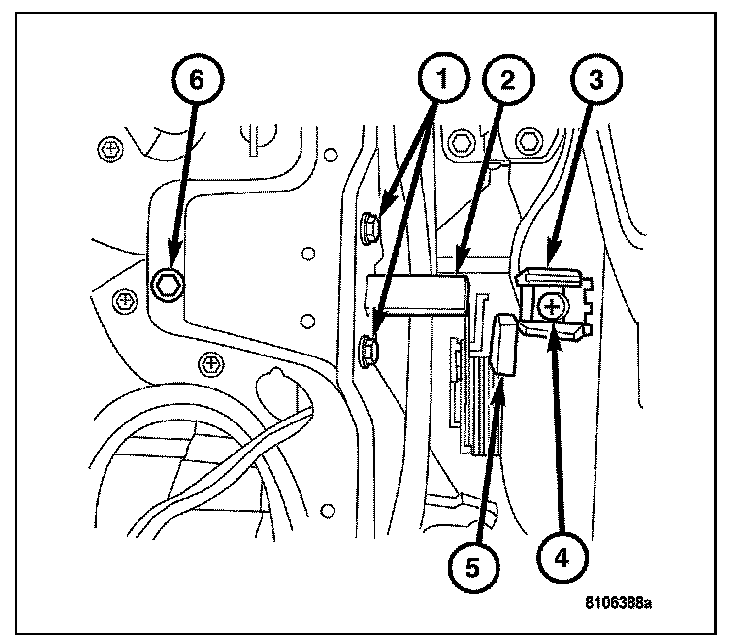

4. Remove the plastic seal located over the check strap bolt (6).

CAUTION: Avoid damaging the vehicle's paint.

5. Remove the torx screw (4) and then remove the retaining plate (3).
6. Remove the bolts (1) attaching the check strap to the door.
7. Remove the seal from the door check strap.
8. Remove the door check strap through the installation opening in the inner door panel.

INSTALLATION

NOTE: Lubricate the door check strap below the plastic cover.




1. Install the door check strap through the installation opening in the inner door panel.

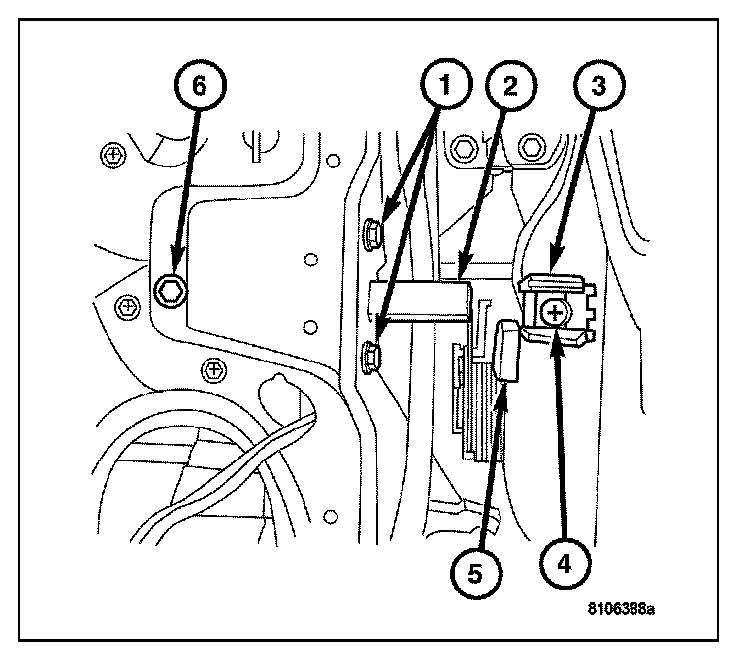

2. Install the screw (3), then install the seal (5) to the door check strap.

NOTE: Tighten the bolts on the end first.

3. Install the two bolts (1) attaching the door check strap (2) to the door. Tighten to 10 N.m (88 in.lbs.).
4. Install the torx screw (4) and install the retaining plate.
5. Install the door foil to the inner door panel front area.




6. Install the door speaker by installing the screws (1) attaching it to the door.
7. Install the door trim panel on the front door.
