Vehicle Theft Security

SENTRY KEY REMOTE ENTRY MODULE

REMOVAL





1. Disconnect the negative battery cable.
2. Remove the instrument cluster to gain access to the SKREEM module.

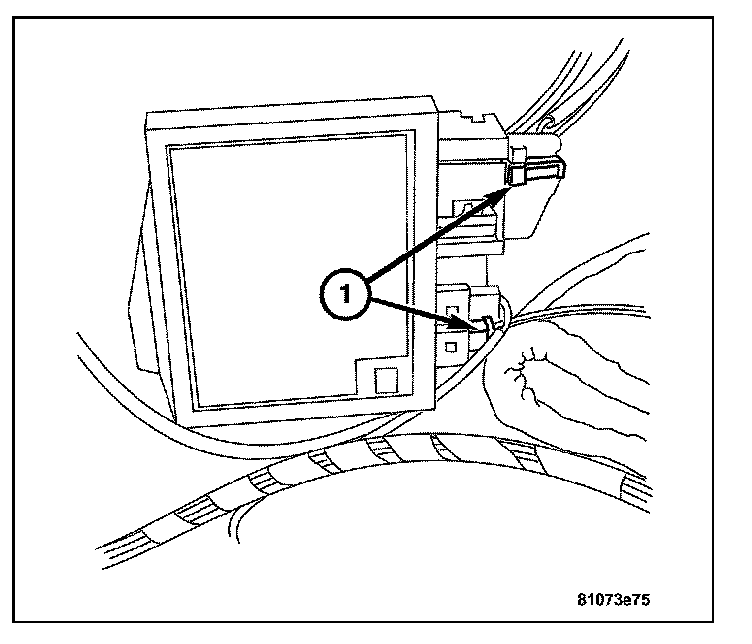

3. Disconnect the 2-pin CAN bus connector and the 18-pin electrical connector (1) from the SKREEM.
4. Disconnect the 2-pin connector for the sentry key antenna ring.
5. Press the retaining tabs apart.
6. Remove the SKREEM from the base plate.

INSTALLATION





1. Install the SKREEM module to the base plate.

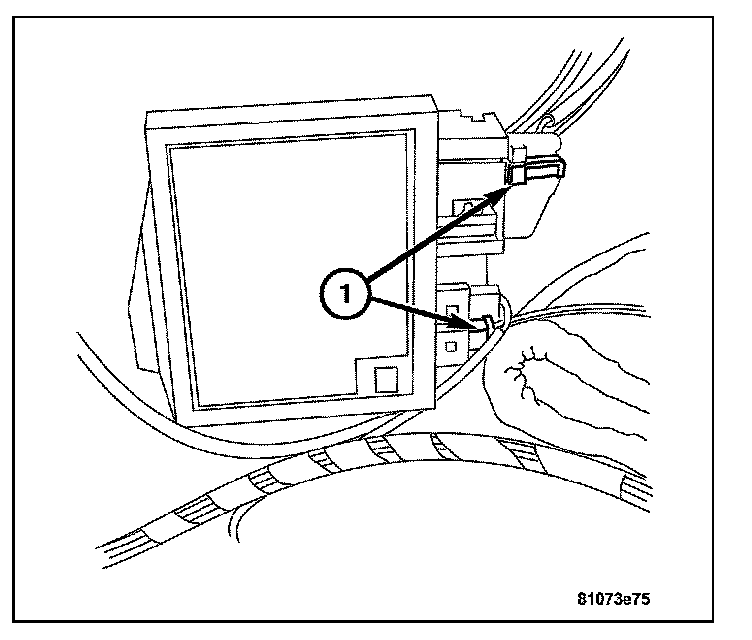

2. Connect the 18-pin electrical connector and the 2-pin CAN bus connector (1) to the SKREEM.
3. Connect the 2-pin connector for the sentry key antenna ring.
4. Install the instrument cluster.
5. Connect the negative battery cable.
