Sentry Key Antenna Ring

SENTRY KEY ANTENNA RING

REMOVAL





1. Remove the instrument cluster.

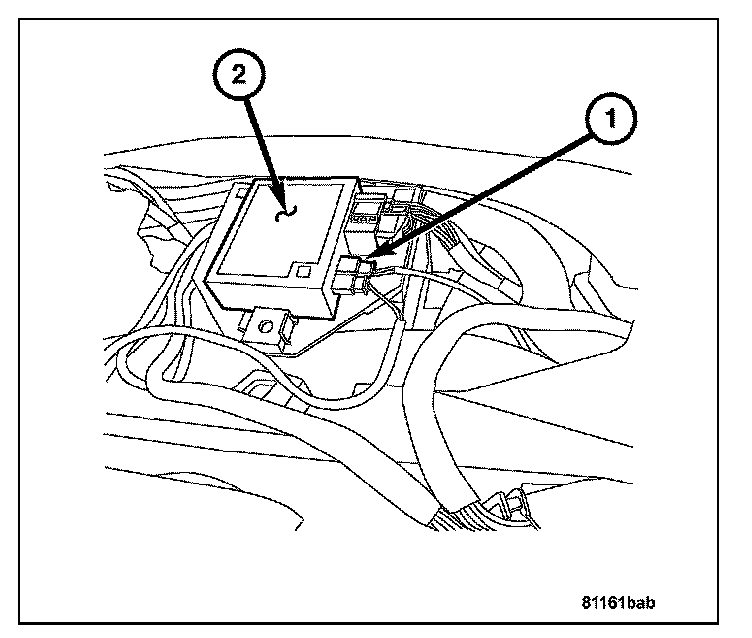

2. Disconnect the sentry key antenna ring electrical connector (1) from the sentry key remote entry module (2).





NOTE: Before disassembly, note the wire harness routing for proper reassembly.

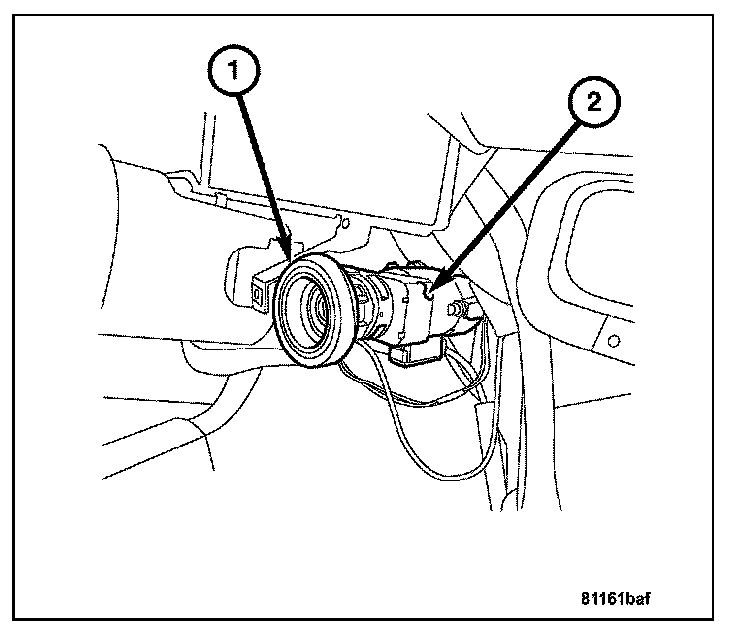

3. Pull to remove the sentry key antenna ring (1) from the ignition switch key cylinder (2).

INSTALLATION

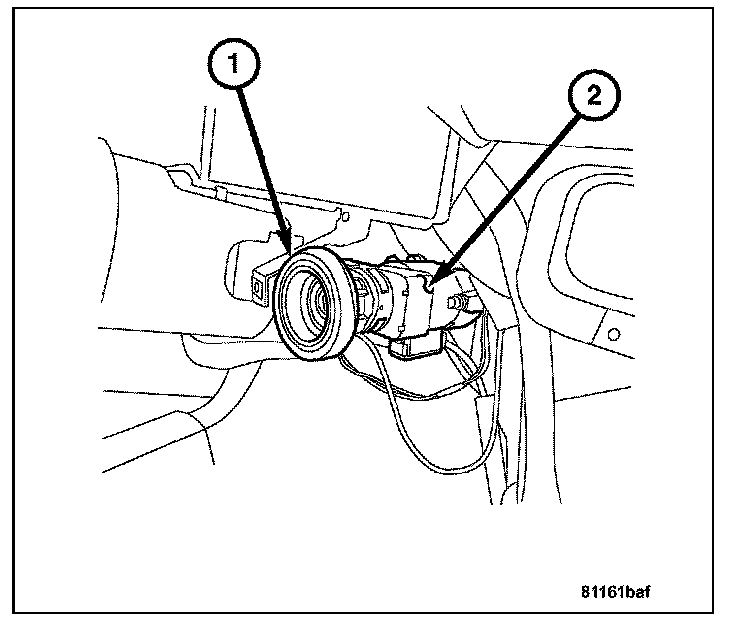

1. Install the sentry key antenna ring (1) to the ignition switch key cylinder (2).





2. Install the sentry key antenna ring electrical connector (1) to the sentry key remote entry module (2).
3. Install the instrument cluster.
