UK SECURITY SYSTEM MODULE

REMOVAL





1. Disconnect the negative battery cable.
2. Remove the trunk floor carpet.

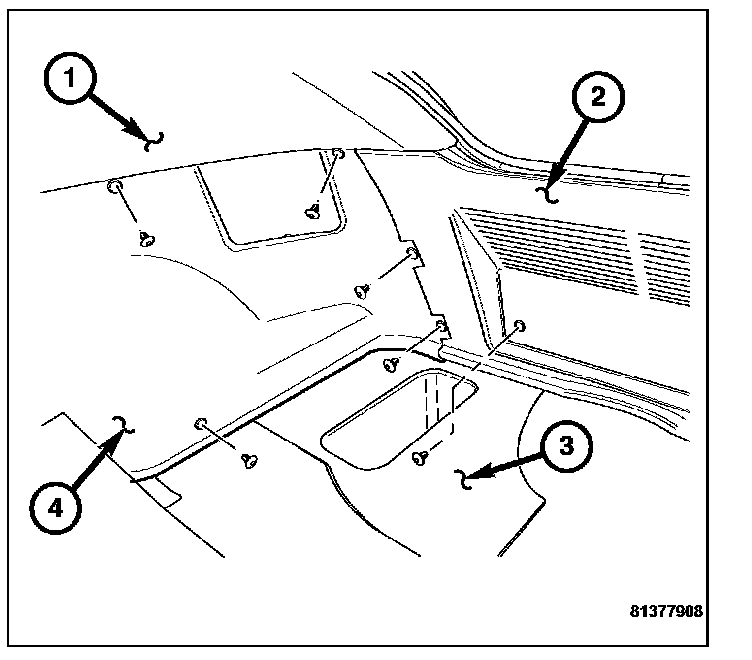

3. Remove the right side interior trim panel (4).
4. Remove the upper right roof trim panel (1).
5. Remove the rear interior trim panel (2).
6. Remove the right half of the floor covering (3).
7. Remove the sound deadening foam material from the central locking pump/security system module.

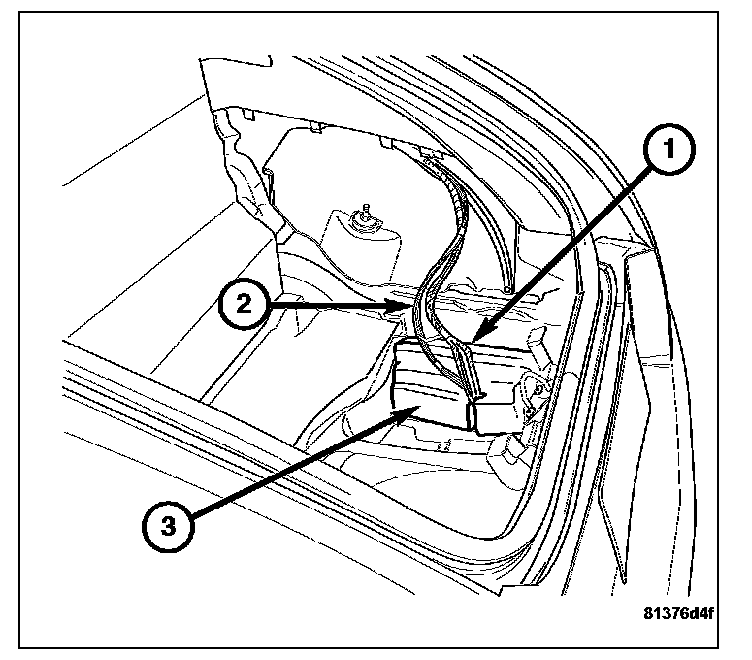

8. Disconnect the air lines (2) and the electrical harness (1) from the central locking pump/security system module (3) and remove the module.

INSTALLATION

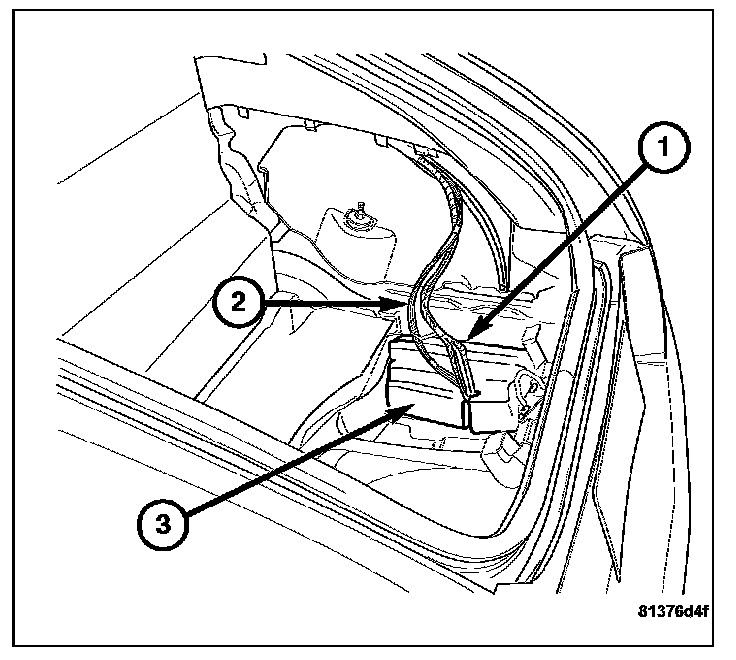

1. Install the central locking pump/security system module (3) into the trunk and connect the air lines (2) and the electrical harness (1).
2. Install the central locking pump/security system module into sound deadening foam covering and slide it back into place.





3. Install the right half of the trunk floor covering (3).
4. Install the rear interior trim panel (2).
5. Install the right side interior trim panel (4).
6. Install the right upper trim panel (1).
7. Install the trunk floor carpet.
8. Connect the negative battery cable.
