Power Seat Motor

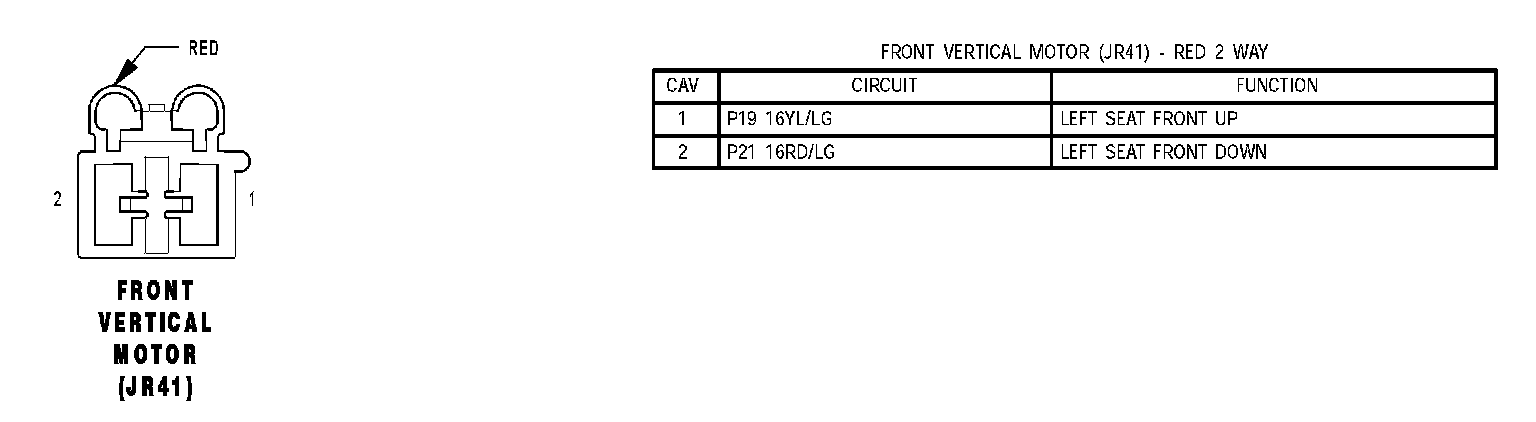

Front Vertical Motor (JR41):

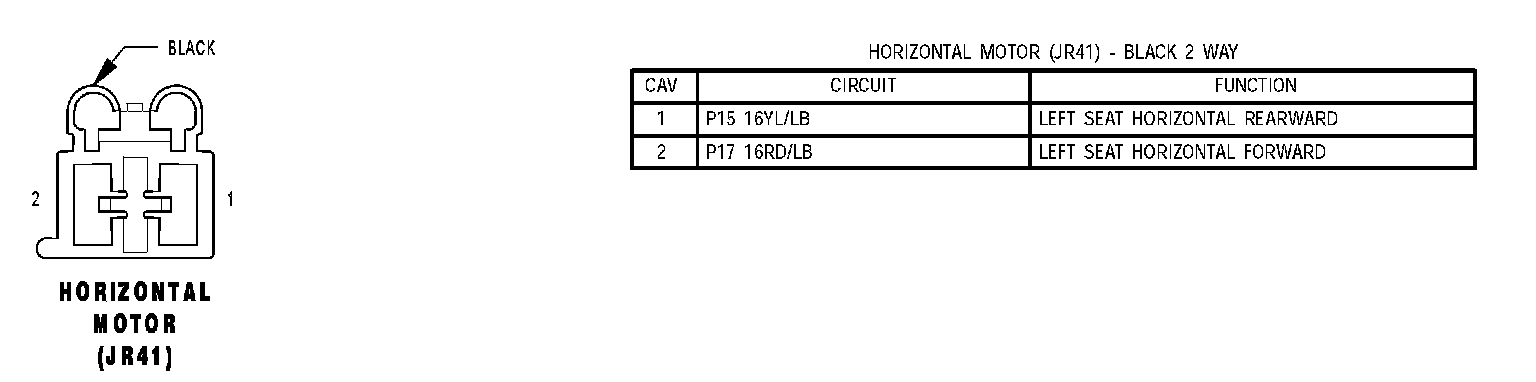

Horizontal Motor (JR41):

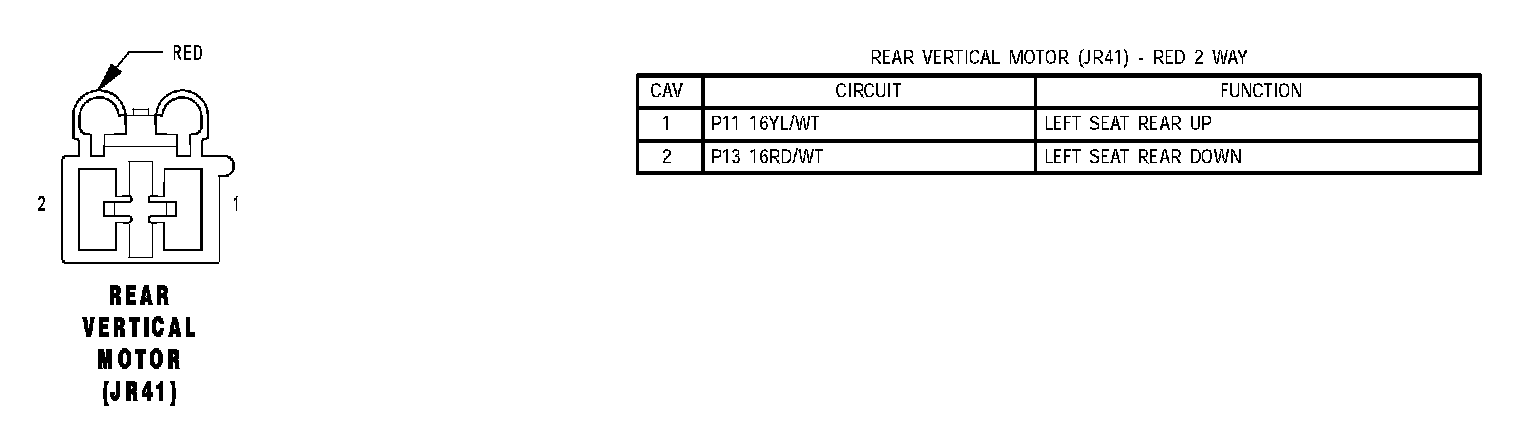

Rear Vertical Motor (JR41):

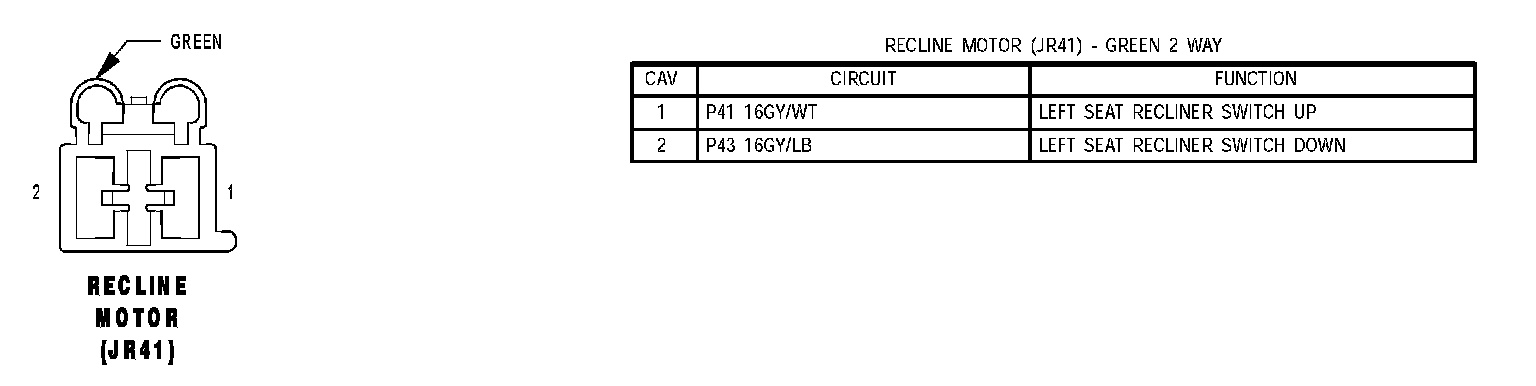

Recline Motor (JR41):
