System Diagram

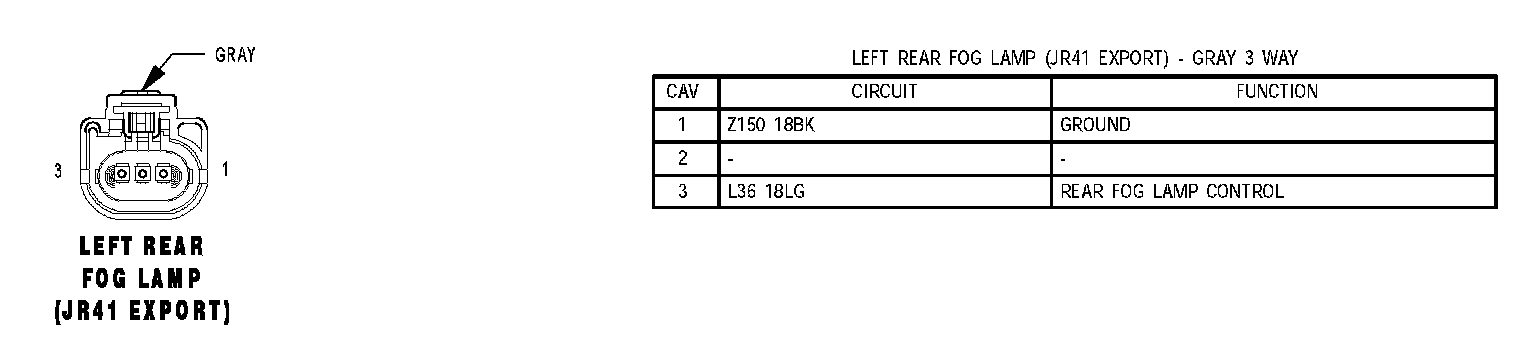

Left Rear Fog Lamp (JR41 Export):

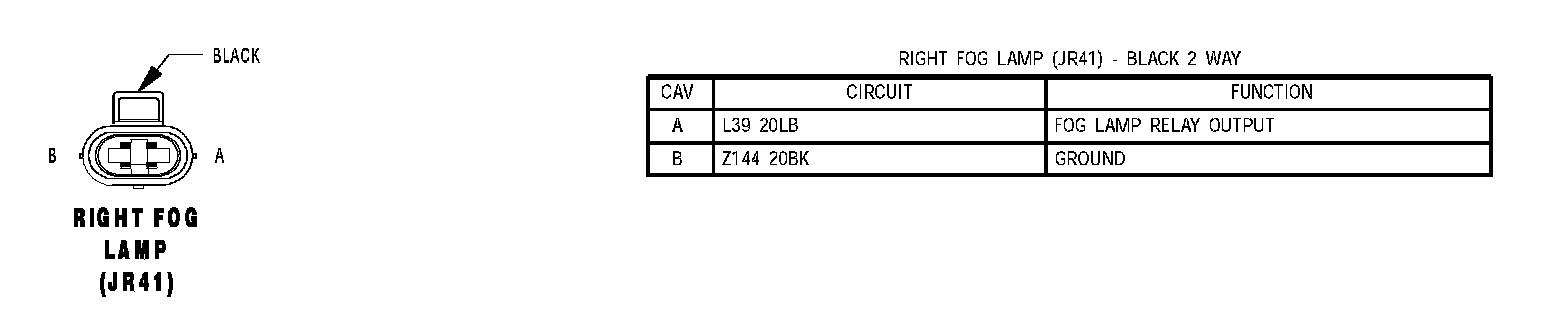

Right Fog Lamp (JR41):

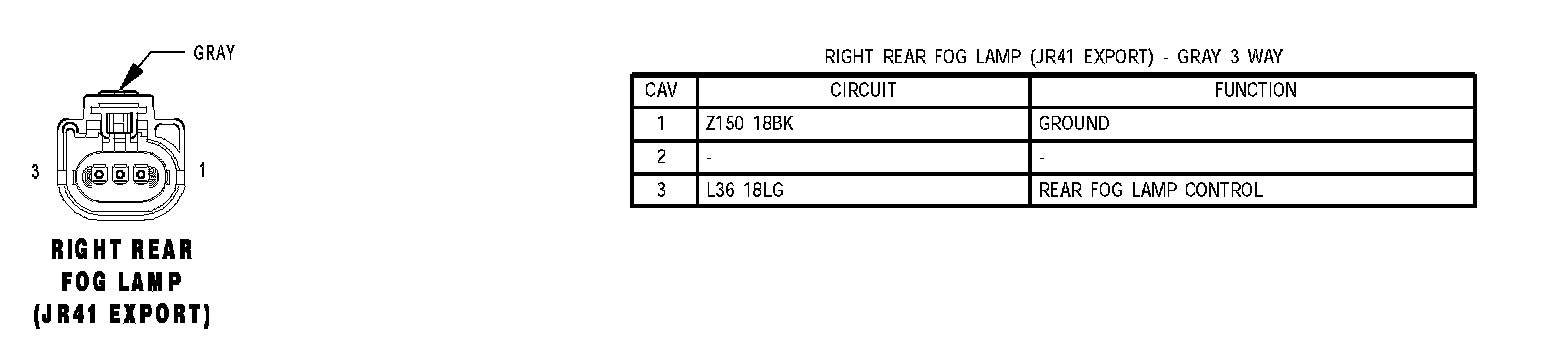

Right Rear Fog Lamp (JR41 Export):
