Transmission Fluid Temperature Sensor Check

TRANSMISSION FLUID TEMPERATURE SENSOR CHECK

1. Remove the transmission fluid temperature sensor.

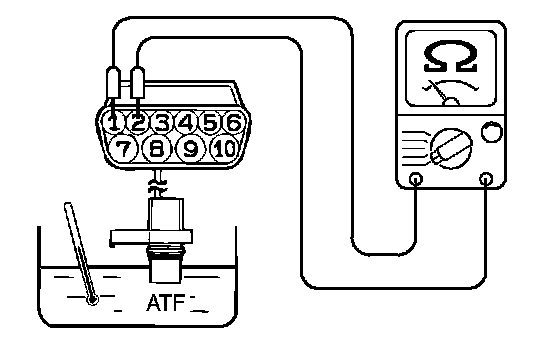

2. Measure the resistance between terminals 1 and 2 of the transmission fluid temperature sensor connector.

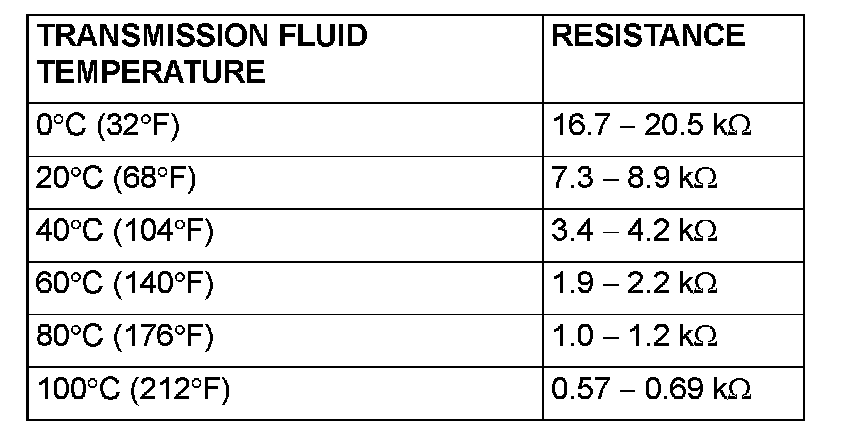

Standard value:

3. If the transmission fluid temperature sensor resistance is outside the specified range and the "N" range indicator light is flashing, replace the transmission fluid temperature sensor.

NOTE: The "N" range indicator light on the combination meter flashes when the temperature reaches approximately 125°C (257°F) or greater, and then stops flashing when the temperature drops below approximately 15°C (238°F).
