Removal and Installation

REMOVAL AND INSTALLATION

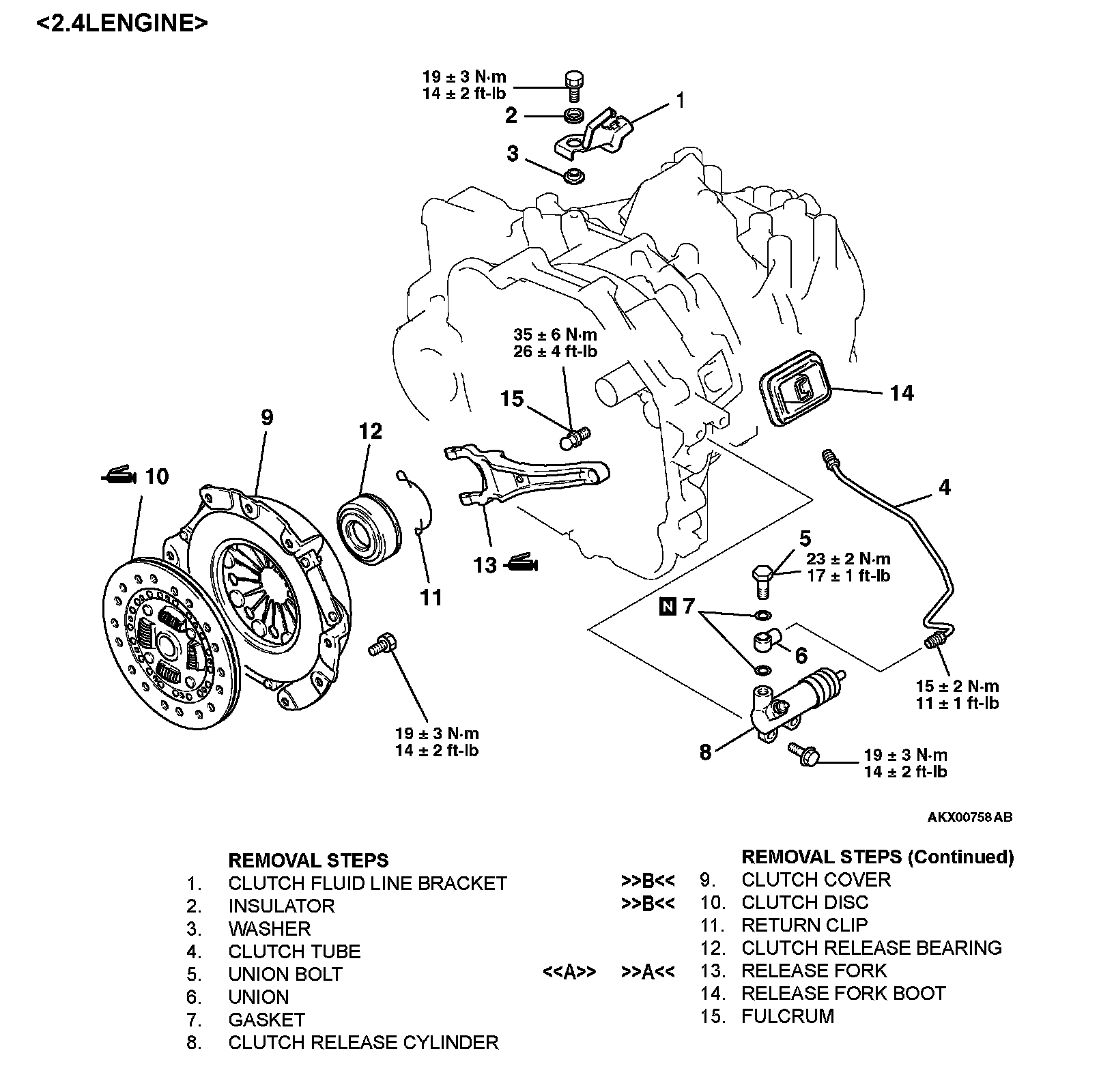

<2.4L ENGINE>

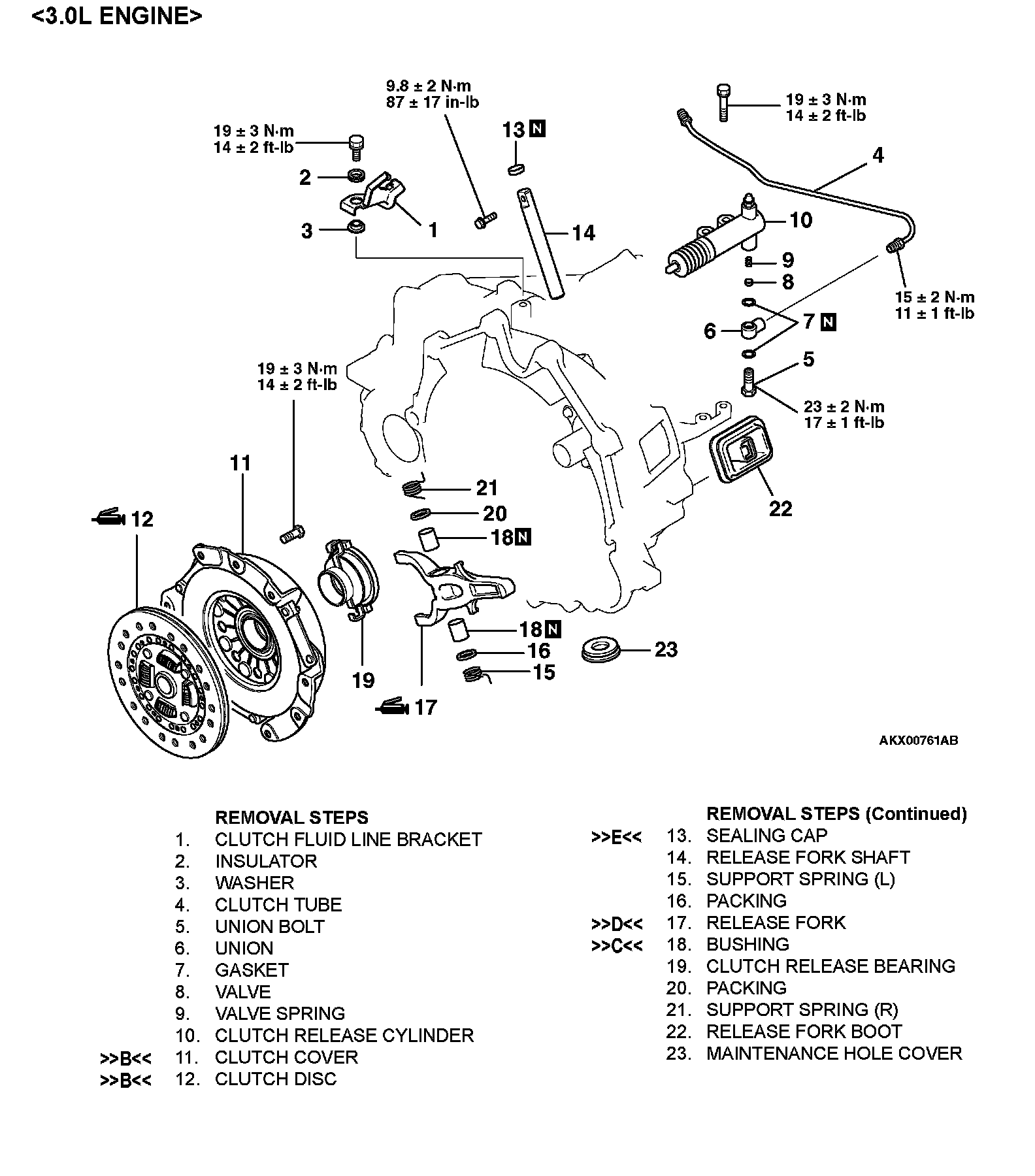

<3.0L ENGINE>

REMOVAL SERVICE POINT

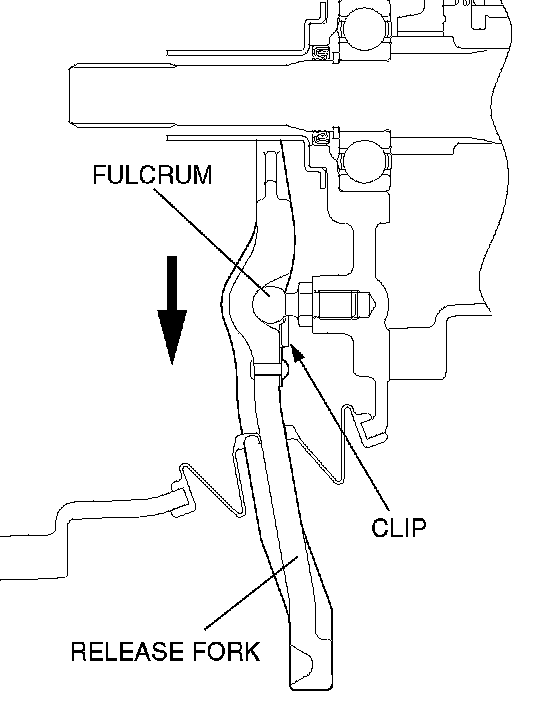

<> RELEASE FORK REMOVAL

Move the release fork in the direction shown to remove the clip from the fulcrum.

INSTALLATION SERVICE POINTS

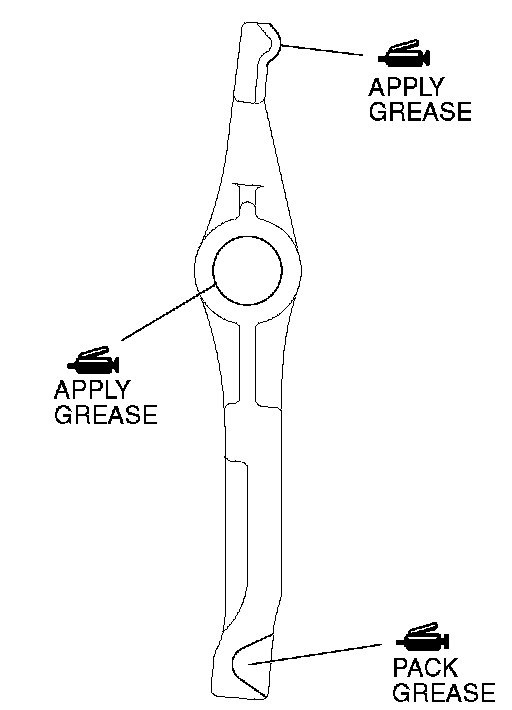

>>A<< RELEASE FORK INSTALLATION

1. Apply Mitsubishi genuine grease part number 0101011 or equivalent to the illustrated positions of the release fork.
2. Install the release fork to the fulcrum.

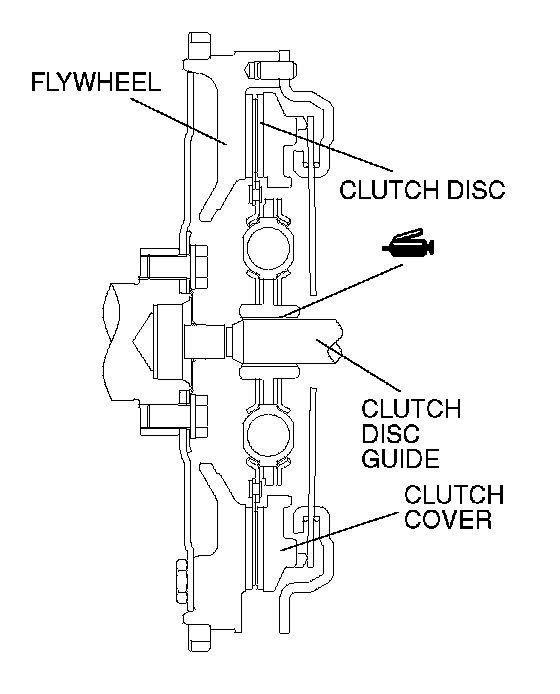

>>B<< CLUTCH DISC AND CLUTCH COVER INSTALLATION





1. Apply Mitsubishi genuine grease part number 0101011 or equivalent to the clutch disc splines and rub it in the splines with a brush.
2. Using the clutch disc guide to position the clutch disc on the flywheel.
3. Install the clutch cover onto the flywheel.

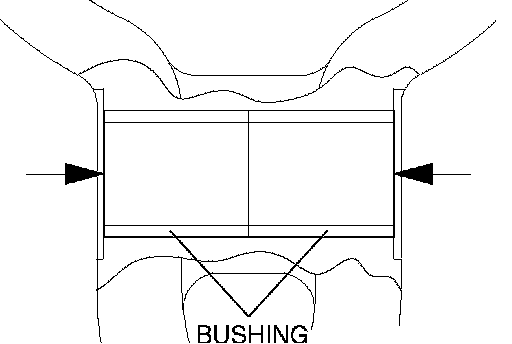

>>C<< OUTER RACE INSTALLATION





Press in the bushing into the release fork to the position shown in the illustration.

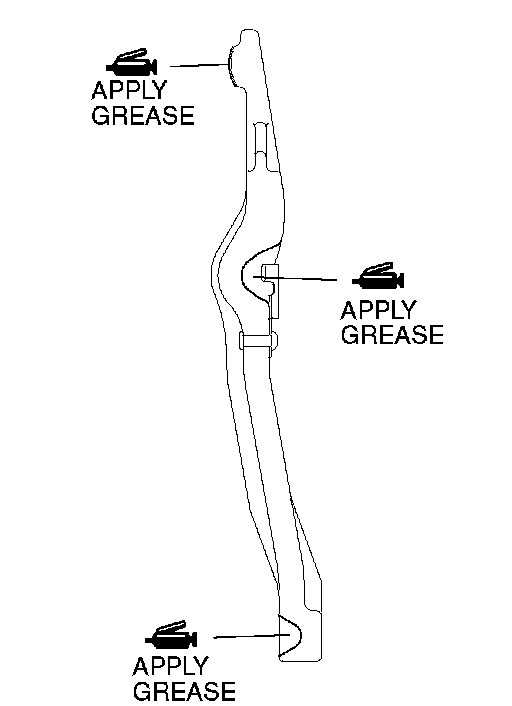

>>D<< RELEASE FORK INSTALLATION





Apply Mitsubishi genuine grease part number 0101011 or equivalent to the illustrated positions of the release fork.

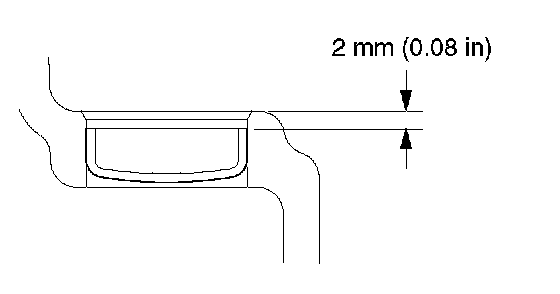

>>E<< SEALING CAP INSTALLATION





Press in the sealing cap to the position shown in the illustration. Be sure that it is not installed in a slanted position.
