Disassembly and Assembly

DISASSEMBLY AND ASSEMBLY

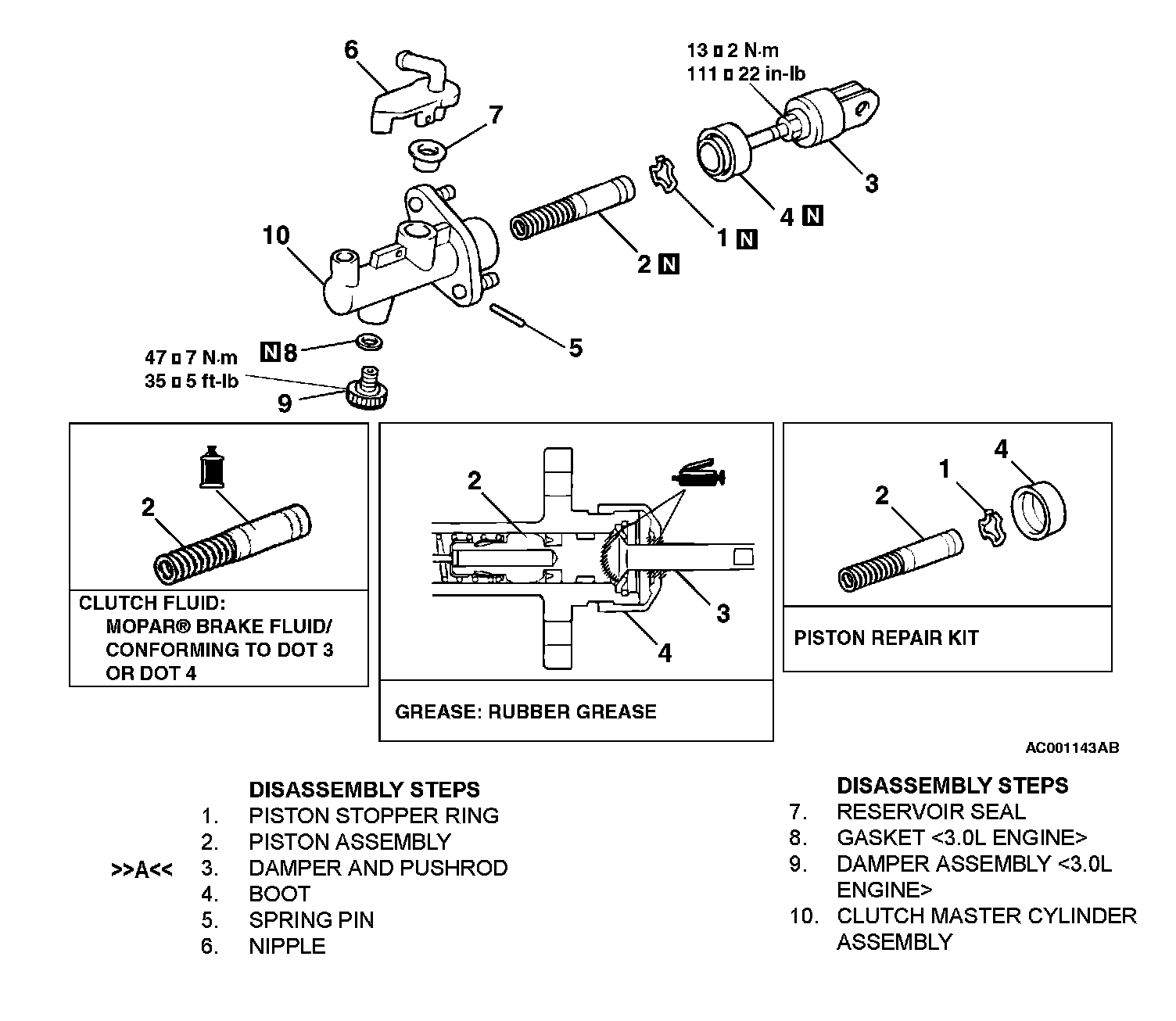

CLUTCH MASTER CYLINDER

CAUTION: Do not disassemble the piston assembly.

ASSEMBLY SERVICE POINT

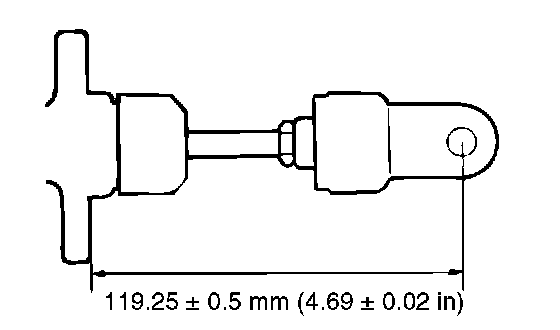

>>A<< DAMPER AND PUSHROD INSTALLATION





Set the length of the pushrod assembly to the shown dimension to make the adjustment of the clutch pedal easier.
