Planetary Gear

PLANETARY GEAR

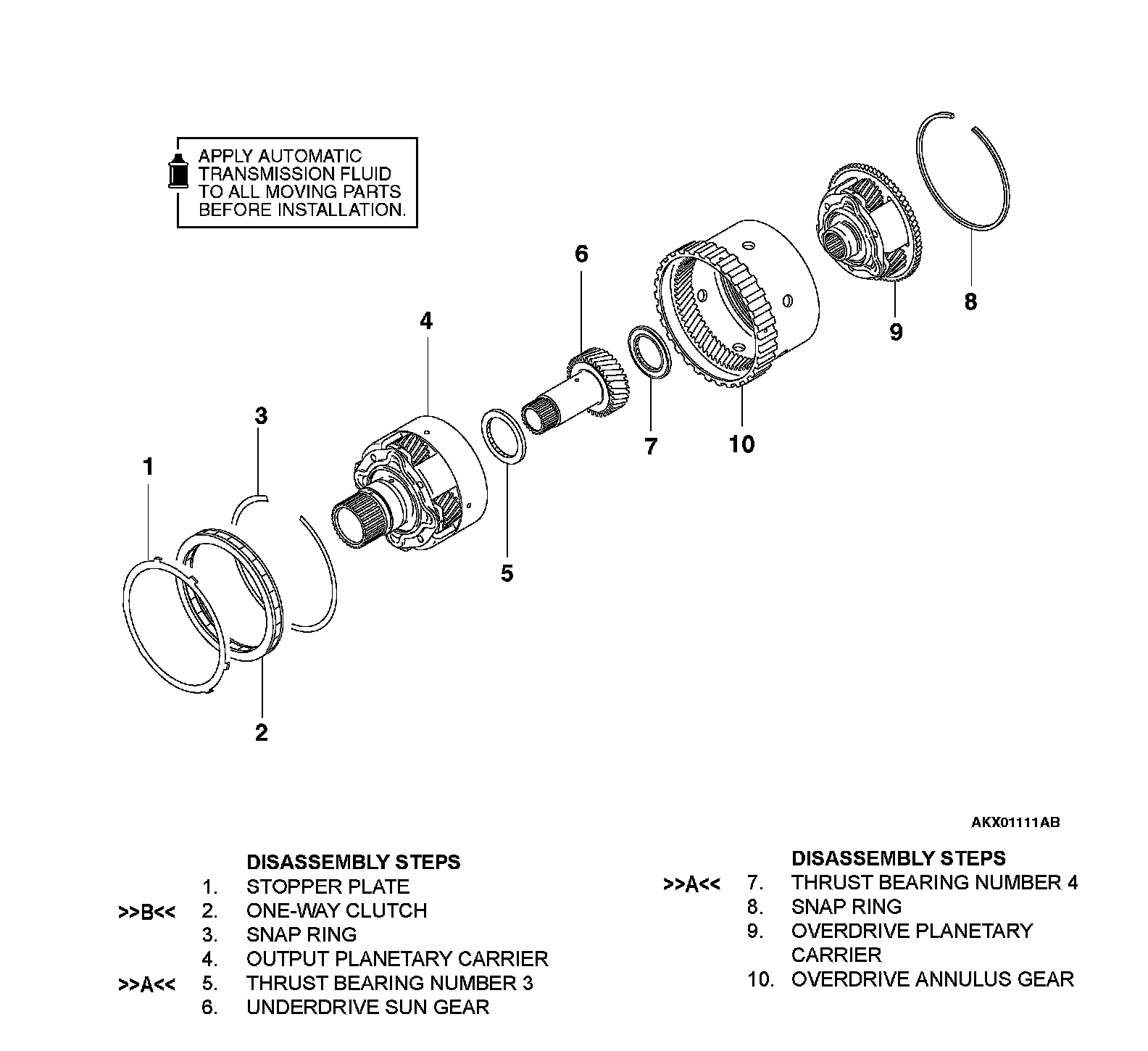

DISASSEMBLY AND ASSEMBLY

ASSEMBLY SERVICE POINTS

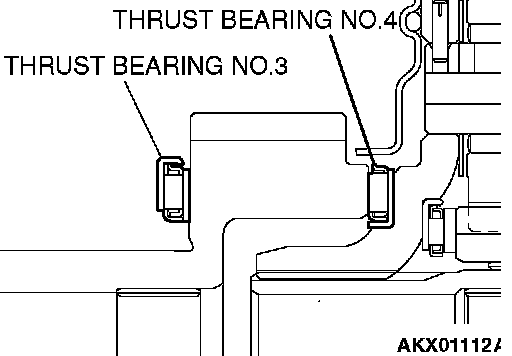

>>A<< THRUST BEARING NUMBER 4 AND THRUST BEARING NUMBER 3 INSTALLATION





CAUTION: Use care to install the thrust bearings in the correct direction.

Check the installation direction of thrust bearings number 3 and 4, and install them as shown.

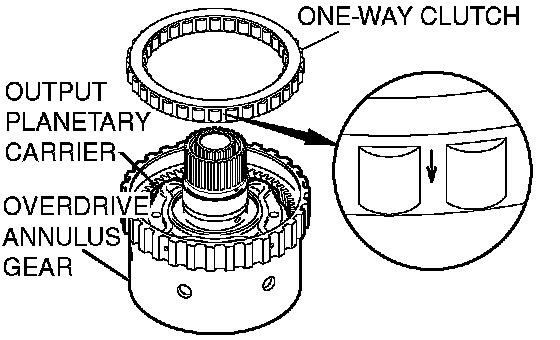

>>B<< ONE-WAY CLUTCH INSTALLATION





Insert the one-way clutch into the overdrive annulus gear so that the arrow points towards the output planetary carrier.
