Trailing Arm: Service and Repair

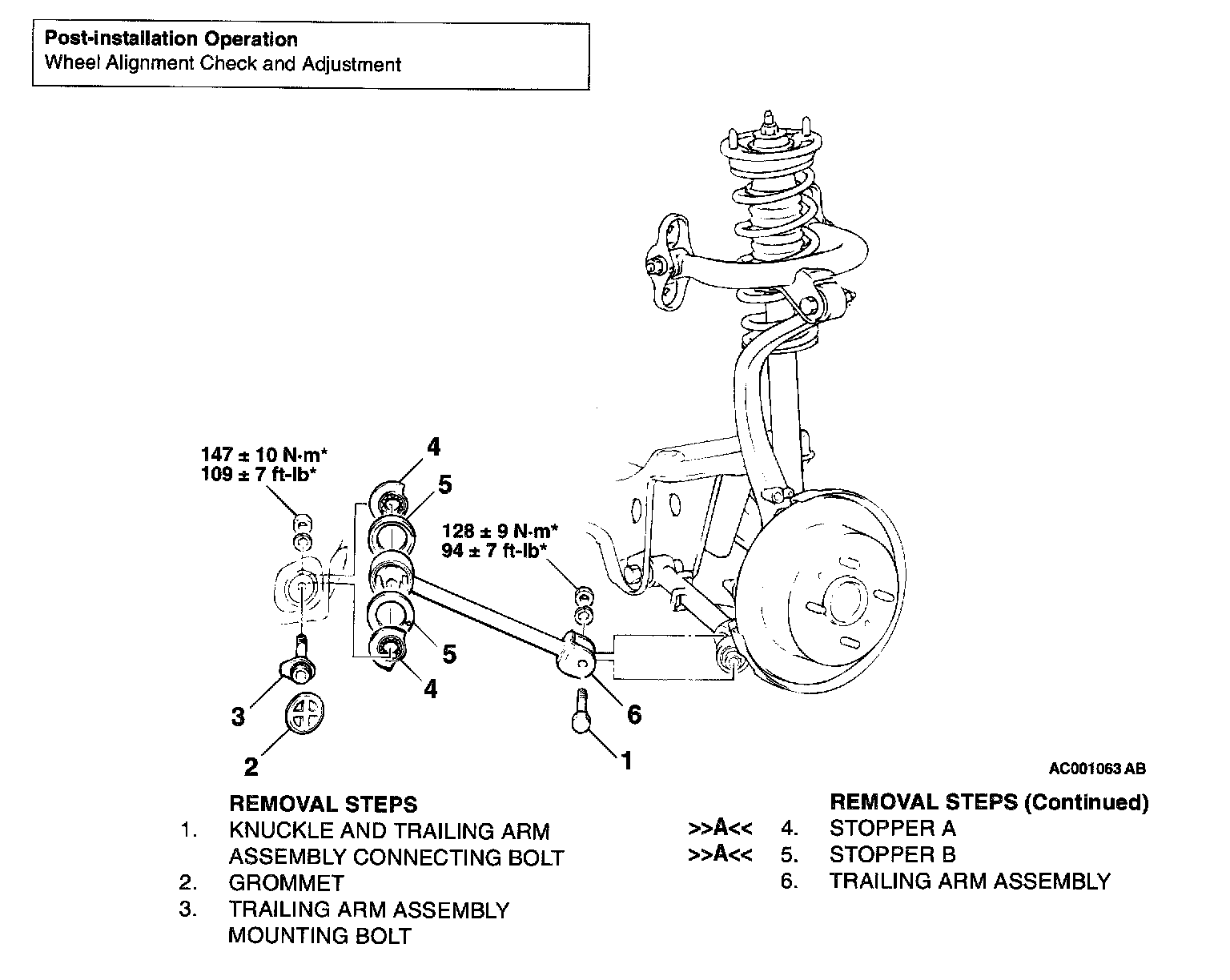

TRAILING ARM ASSEMBLY





REMOVAL AND INSTALLATION

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

INSTALLATION SERVICE POINT

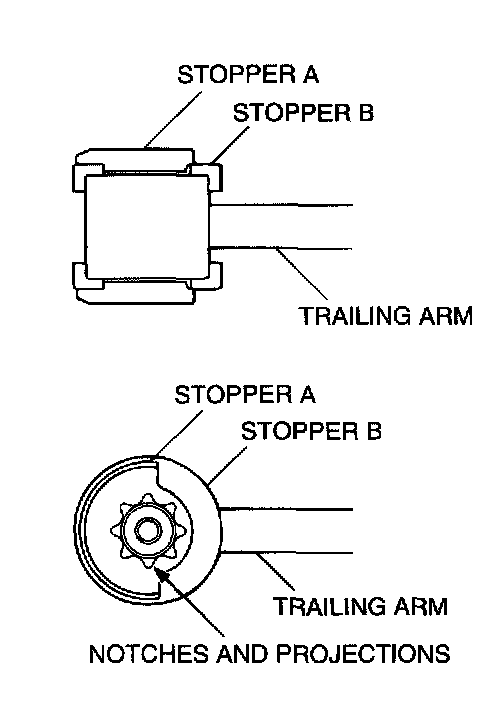

>>A<< STOPPER B/STOPPER A INSTALLATION





1. Install stopper B in the shown direction.
2. Install stopper A in the shown direction while checking that the notches on stopper A are engaged with the projections on the trailing arm bushing.

INSPECTION
- Check the bushings for wear and deterioration.
- Check the trailing arm for bends or damage.
