Rear Knuckle: Service and Repair

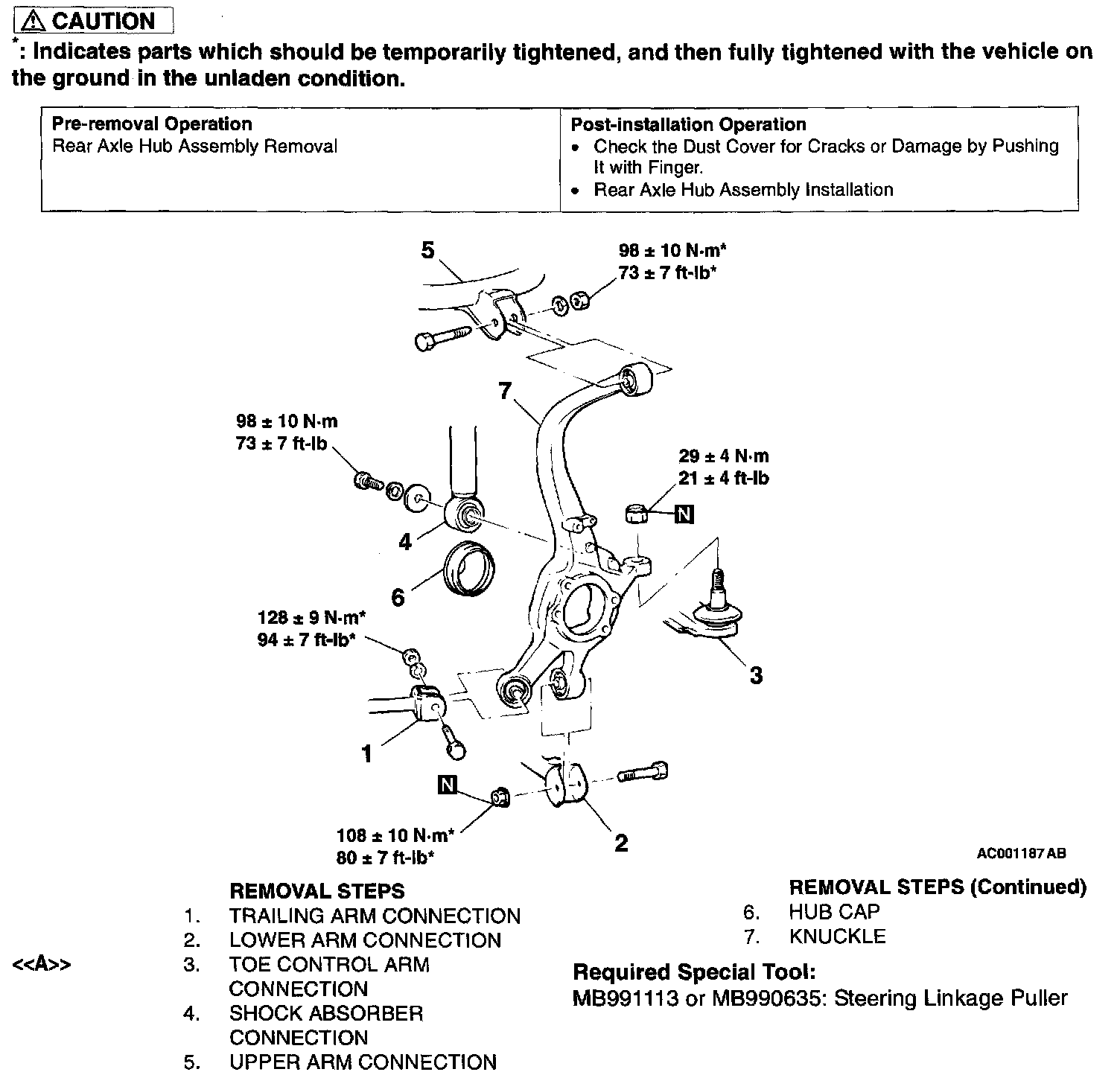

REMOVAL AND INSTALLATION



REMOVAL SERVICE POINT






<< A >>
TOE CONTROL ARM DISCONNECTION

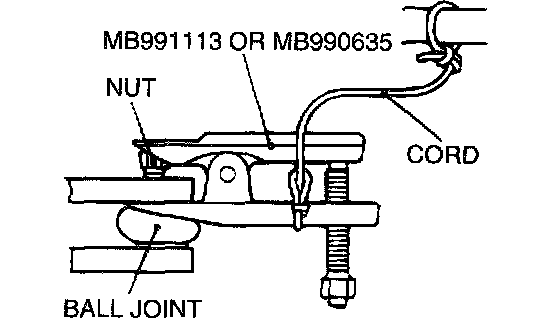

CAUTION: Use special tool MB991113 or MB990635 to loosen the nut from the ball joint instead of removing it.
Hang special tool MB99111. or MB990635 with ropes to prevent it from falling.
