Front Suspension

FRONT SUSPENSION

The front suspension is MacPherson strut type with coil springs and compression rod. Anti-dive geometry ensures excellent driving stability while negative offset geometry provides good braking stability. The offset coil spring ensures optimum riding comfort.

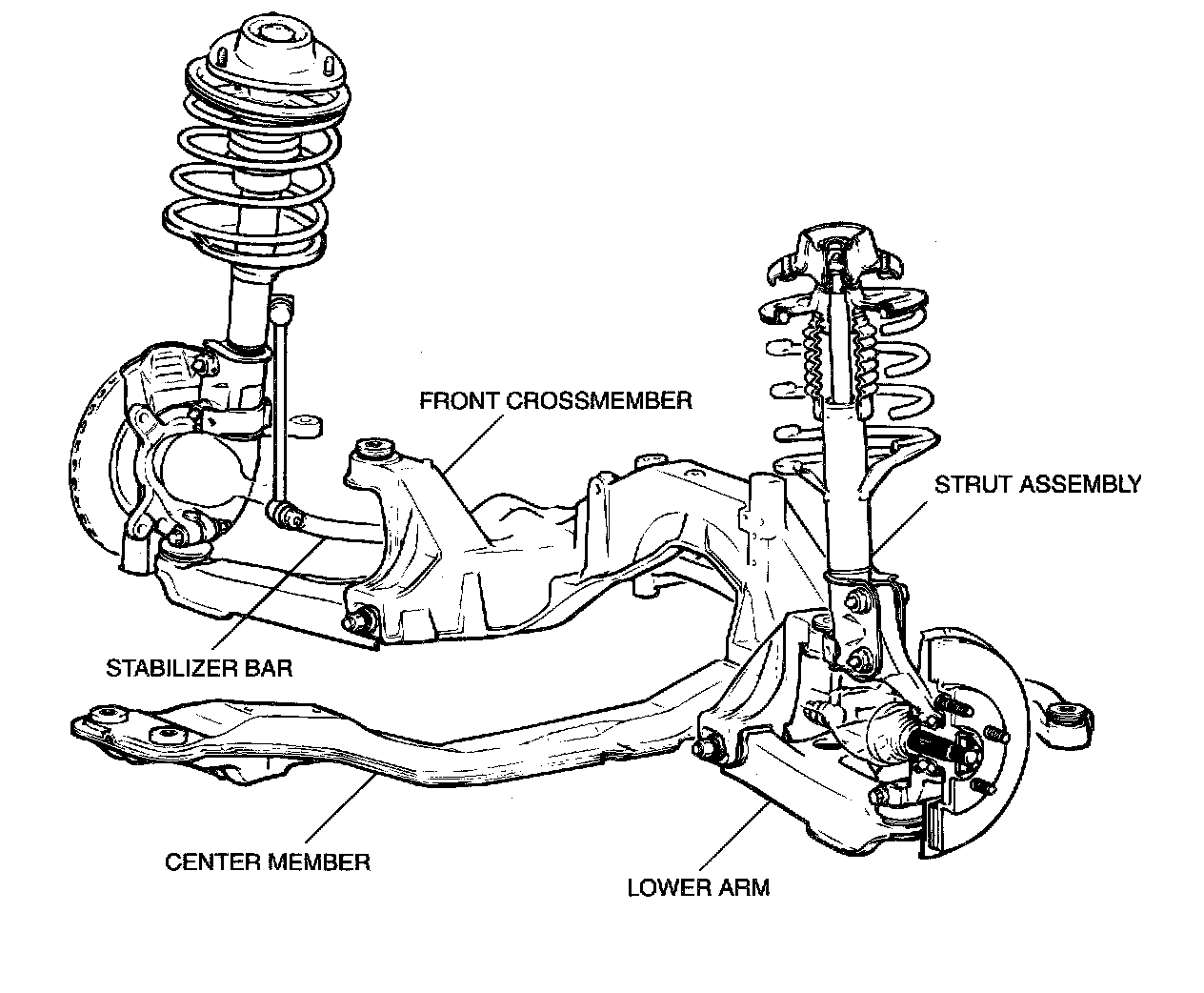

CONSTRUCTION DIAGRAM
