Front Suspension

LOWER ARM

REMOVAL AND INSTALLATION





CAUTION:
*:Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground In an unladen condition.

INSTALLATION SERVICE POINT

>>A<< LOWER ARM CLAMP INSTALLATION <2.4L ENGINE>

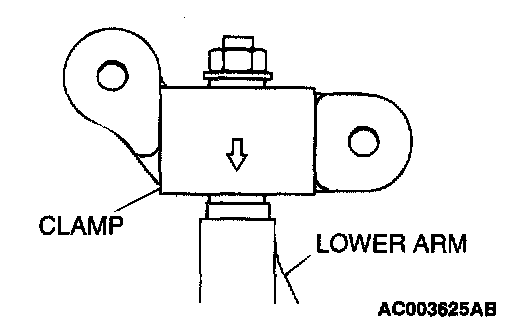

1. The arrow mark on the clamp should point as shown.

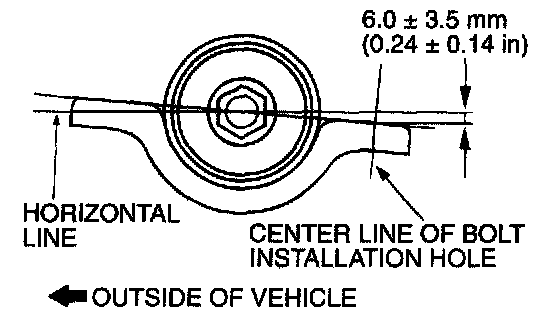

2. Install the clamp into the shaft at the angle shown in the illustration.

INSPECTION
- Check the bushing for wear and deterioration.
- Check the lower arm for bend or breakage.
- Check the lower arm clamp for deterioration or damage.
- Check all bolts for condition and straightness.

Ball Joint Breakaway Torque Check

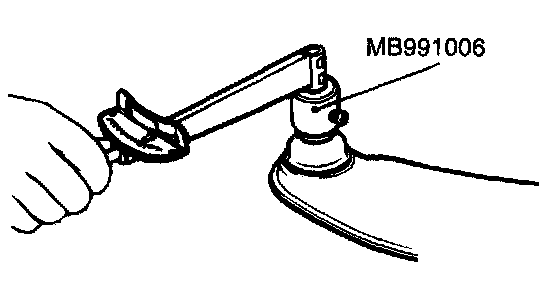

1. After shaking the ball joint stud several times, use special tool MB991006 to measure the breakaway torque of the ball joint.
Standard value: 2.5 - 6.1 Nm (22 - 54 inch lbs.)
2. If the measured value exceeds the standard value, replace the lower arm.
3. If the measured value is lower than the standard value, verify that the ball joint turns smoothly without excessive play. If so, the ball joint is reusable.

Lower Arm Ball Joint Dust Cover Check
1. Check the dust cover for cracks or damage by pushing it with your finger.
2. If the dust cover is cracked or damaged, replace the lower arm.

NOTE: Cracks or damage to the dust cover may cause damage to the balljoint. When it is damaged during service work, replace the dust cover.
