Ball Joint Dust Cover Replacement

BALL JOINT DUST COVER REPLACEMENT
If the dust cover is damaged accidentally during service work, replace the dust cover as follows:
1. Remove the dust cover.
2. Apply specified grease to the lip and inside of the dust cover.
Specified grease: Mopar Multi-mileage Lubricant Part No. 2525035 or equivalent

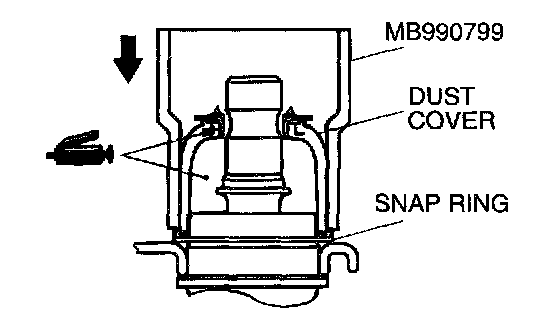

3. Using special tool MB990799, drive in the dust cover until it is fully seated.

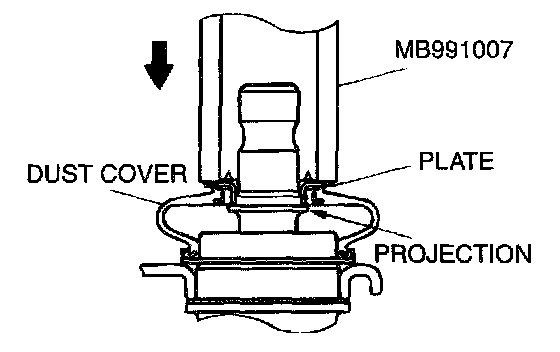

4. Using special tool MB991007, drive in the dust cover plate until it contacts the projection of the ball joint.
5. Check the dust cover for cracks or damage by pushing it with your finger.
