Steering: Description and Operation

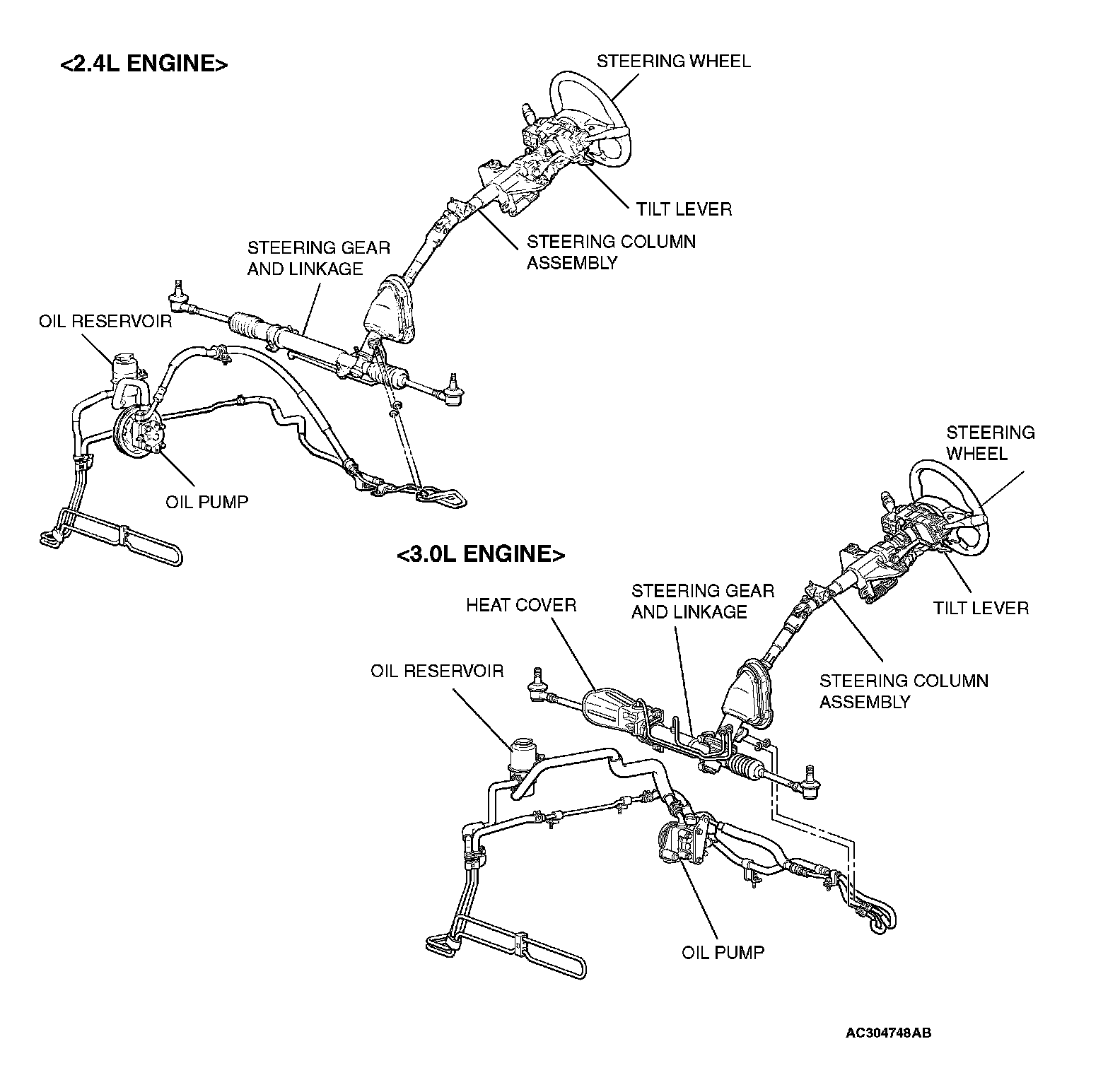

GENERAL DESCRIPTION
The vehicle uses engine speed-responsive hydraulic power steering. The steering wheel has three spokes. All vehicles are equipped with SRS (Supplemental Restraint System).





The steering column has a shock absorber mechanism and a tilt steering mechanism. A vane-type oil pump with a fluid flow control system has been included. The steering gear and linkage is rack and pinion type.
