Transmission Range Switch Check
Transmission Range Switch Check

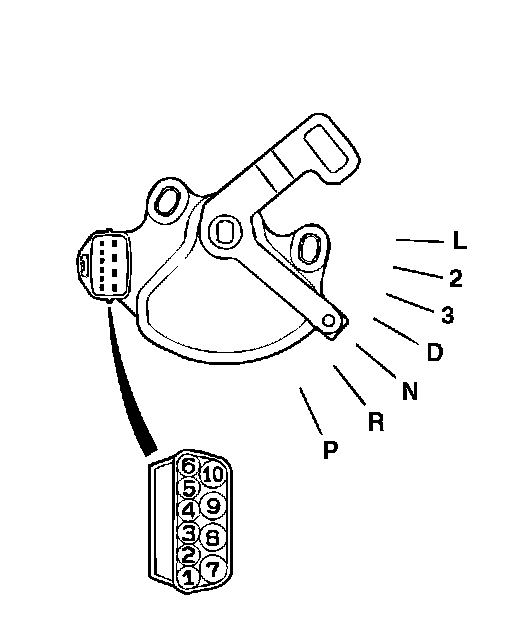

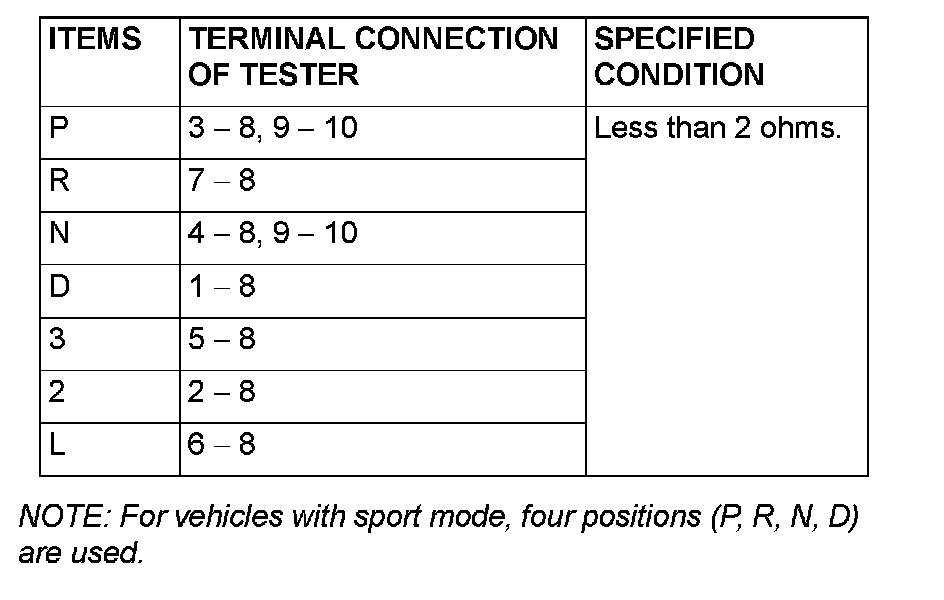

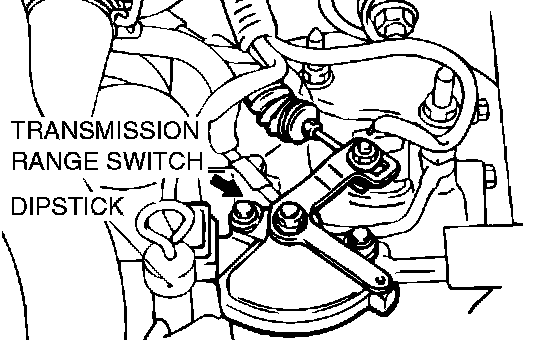

TRANSMISSION RANGE SWITCH CHECK
NOTE:
For vehicles with sport mode, four positions (P, R, N, D) are used.
