Removal and Installation

THROTTLE BODY ASSEMBLY

Throttle Body Assembly:

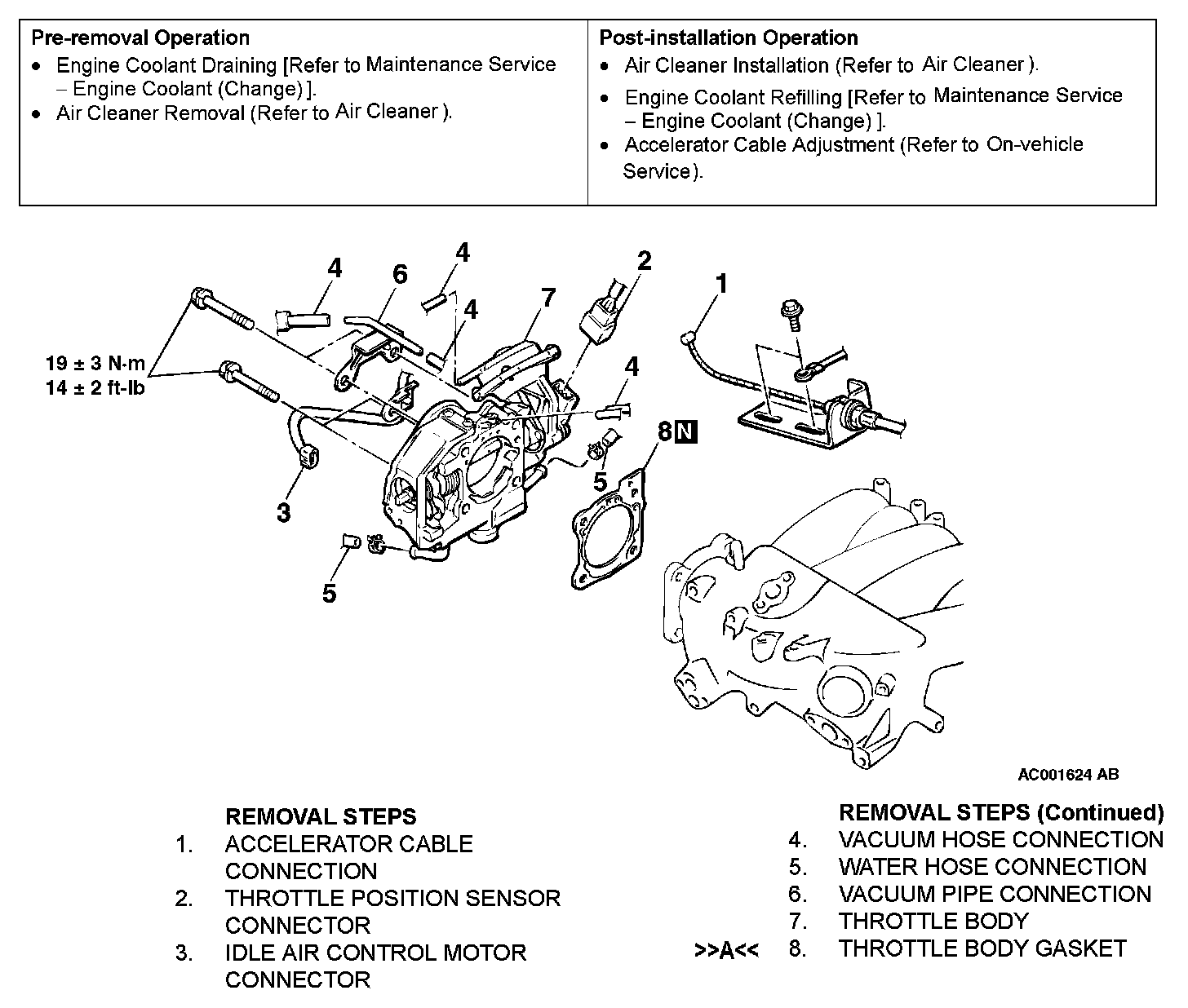

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

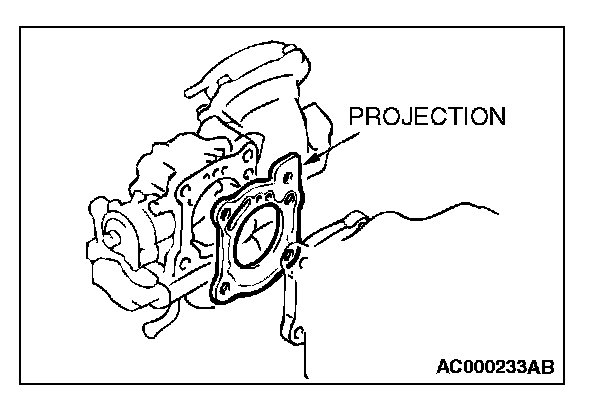

>>A<< THROTTLE BODY GASKET INSTALLATION CAUTION
Poor idling etc. may result if the throttle body gasket is installed incorrectly. Install the throttle body gasket as shown in the illustration.
