Fuel Tank: Description and Operation

FUEL SUPPLY

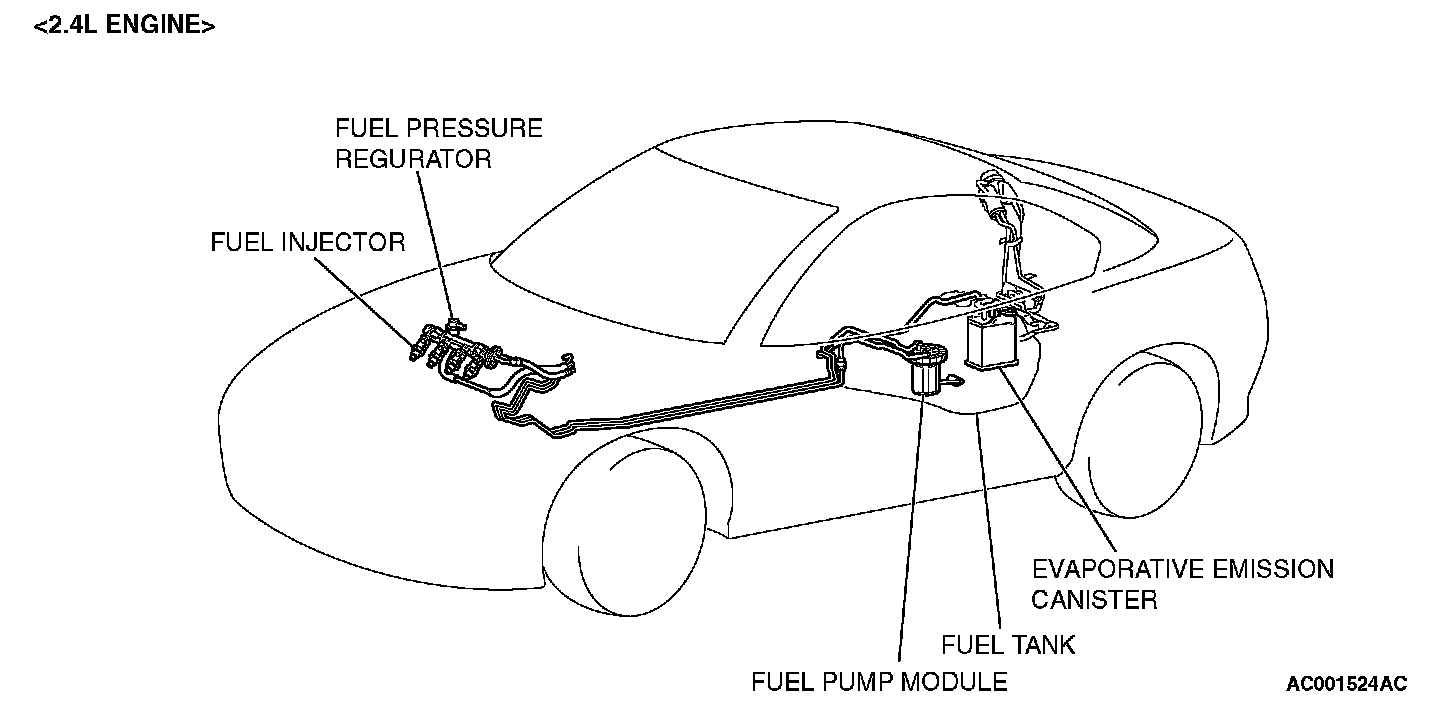

2.4L Engine:

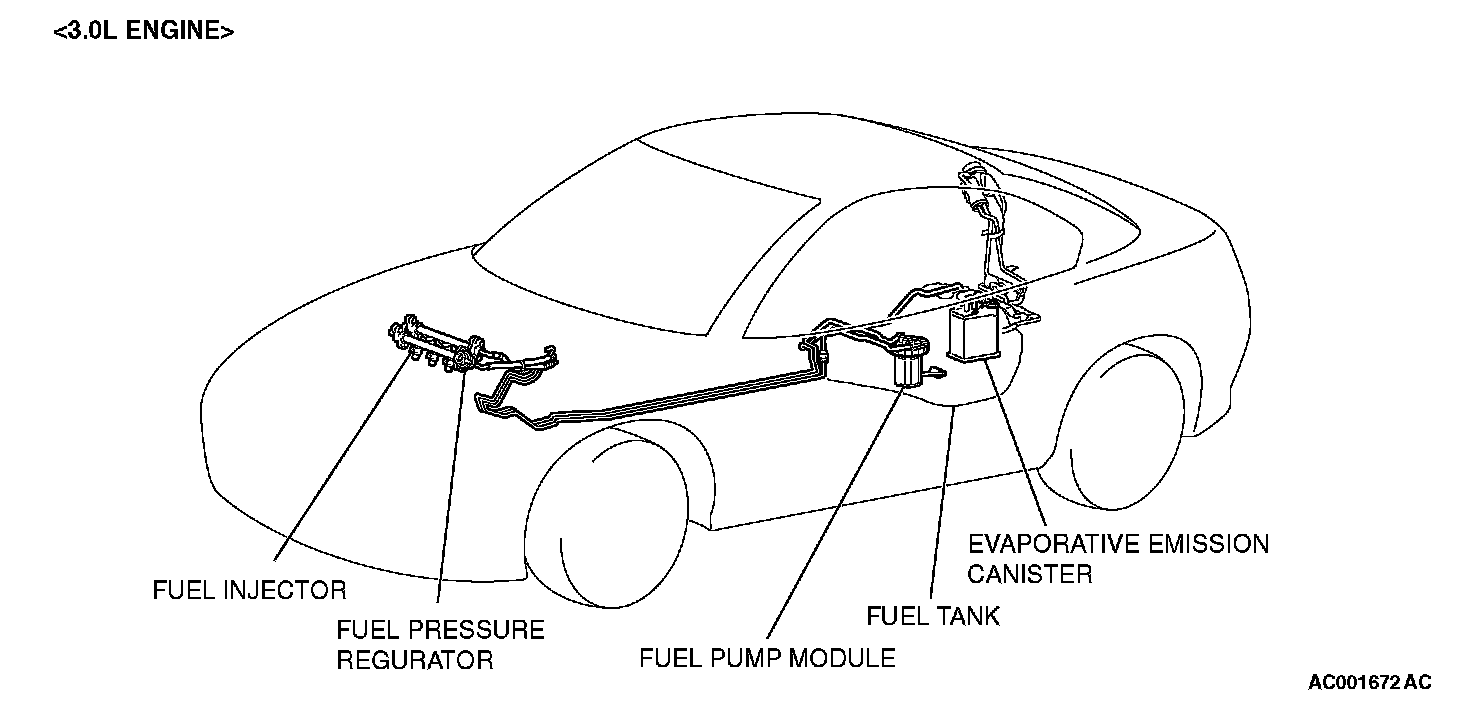

3.0L Engine:

General Description
- The fuel tank is located under the floor of the rear seats to provide increased safety and a wider luggage space.
- A plastic fuel tank has been adopted to reduce weight, and improve anti-corrosion effectiveness. <2.4L ENGINE>
- A fuel pump module, which unifies fuel pump, fuel filter, reservoir cup and fuel level sensor, has been adopted to lighten weight and improve serviceability.
