Home
>>
Chrysler
>>
2005
>>
Sebring Coupe V6-3.0L VIN H
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Terminal Resistance and Continuity Check
Terminal Resistance and Continuity Check

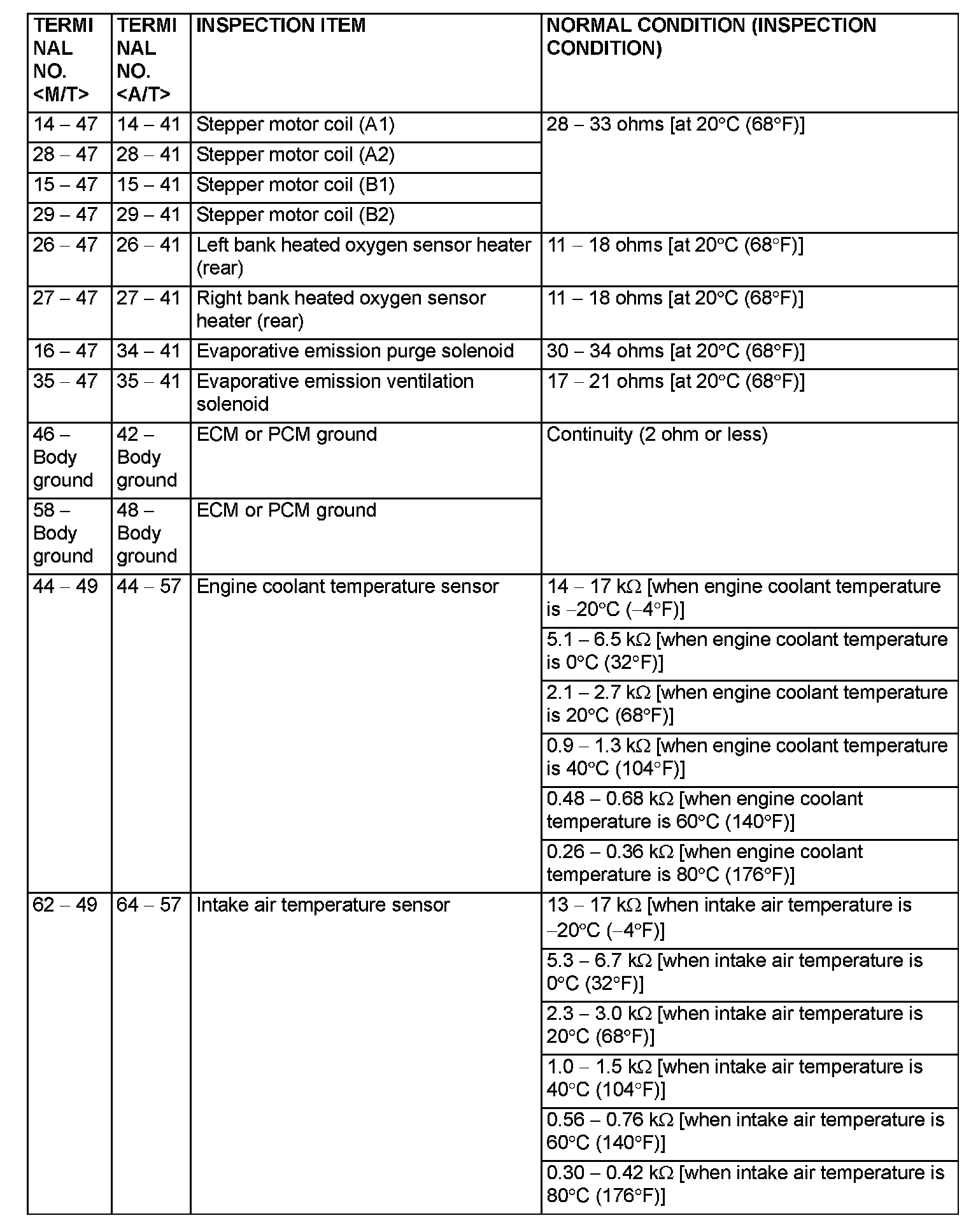

Terminal Resistance And Continuity Check - Part 1:

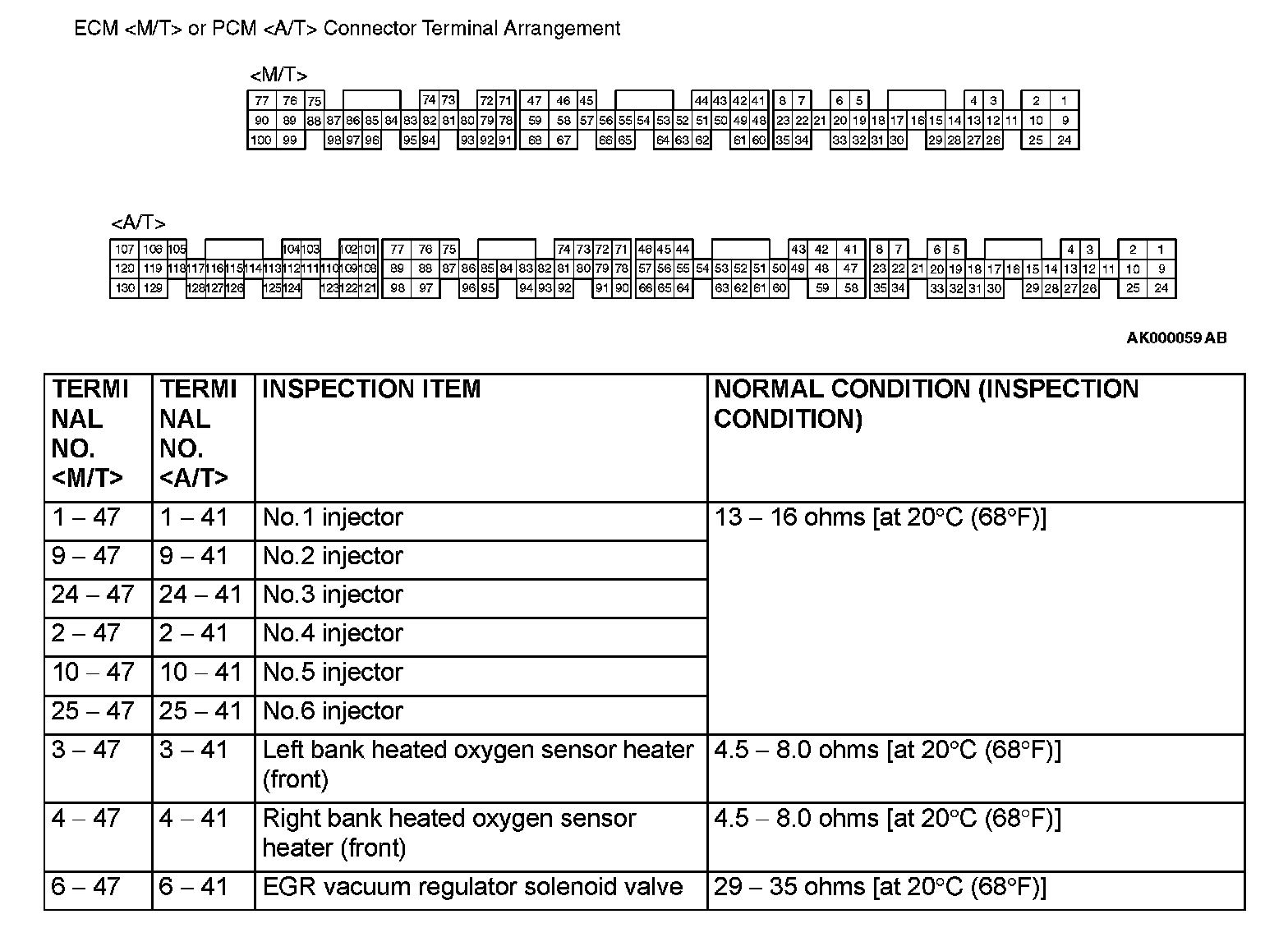

Terminal Resistance And Continuity Check - Part 2:
