Check At the Powertrain Control Module

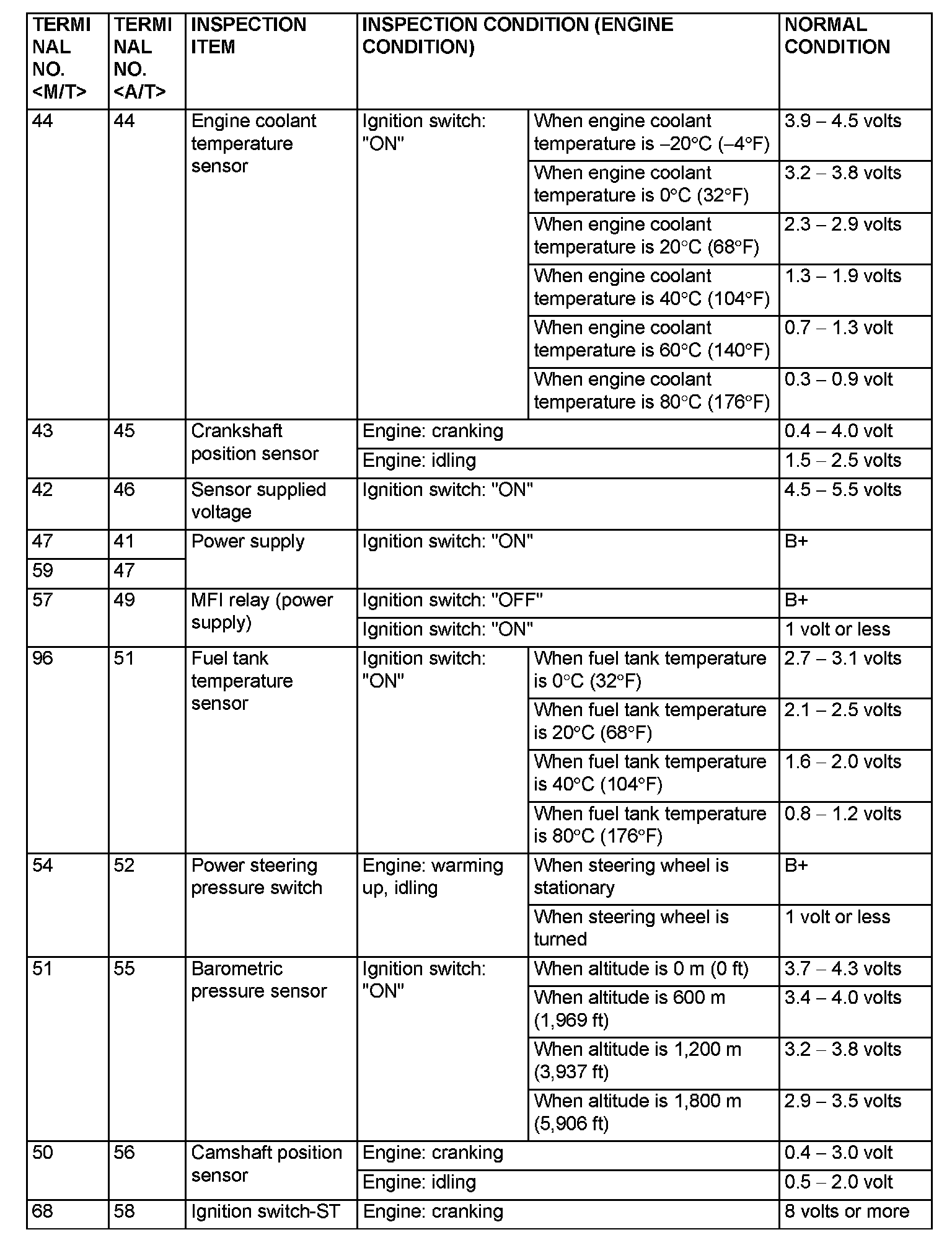

Terminal Voltage Check Chart - Part 1:

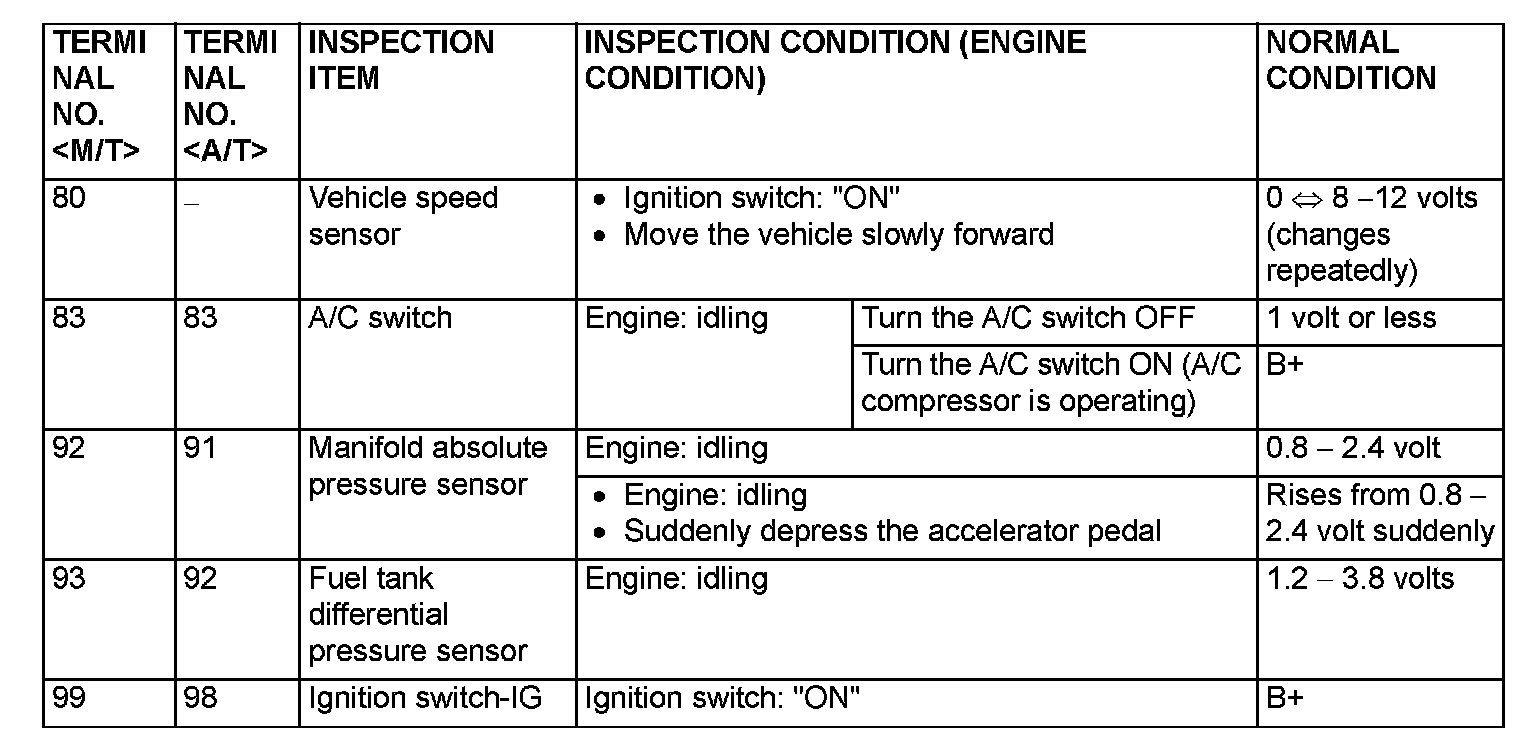

Terminal Voltage Check Chart - Part 2:

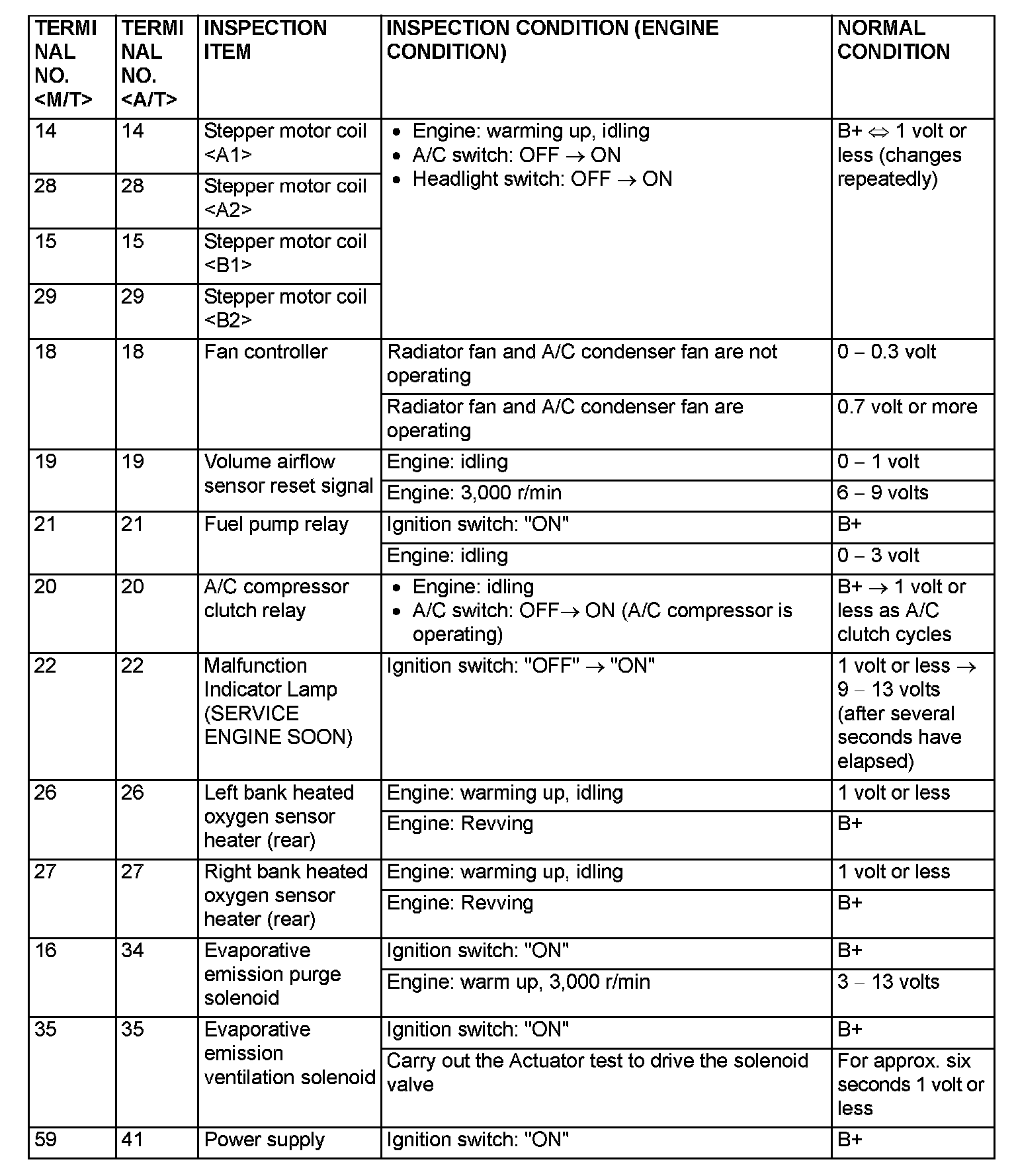

Terminal Voltage Check Chart - Part 3:

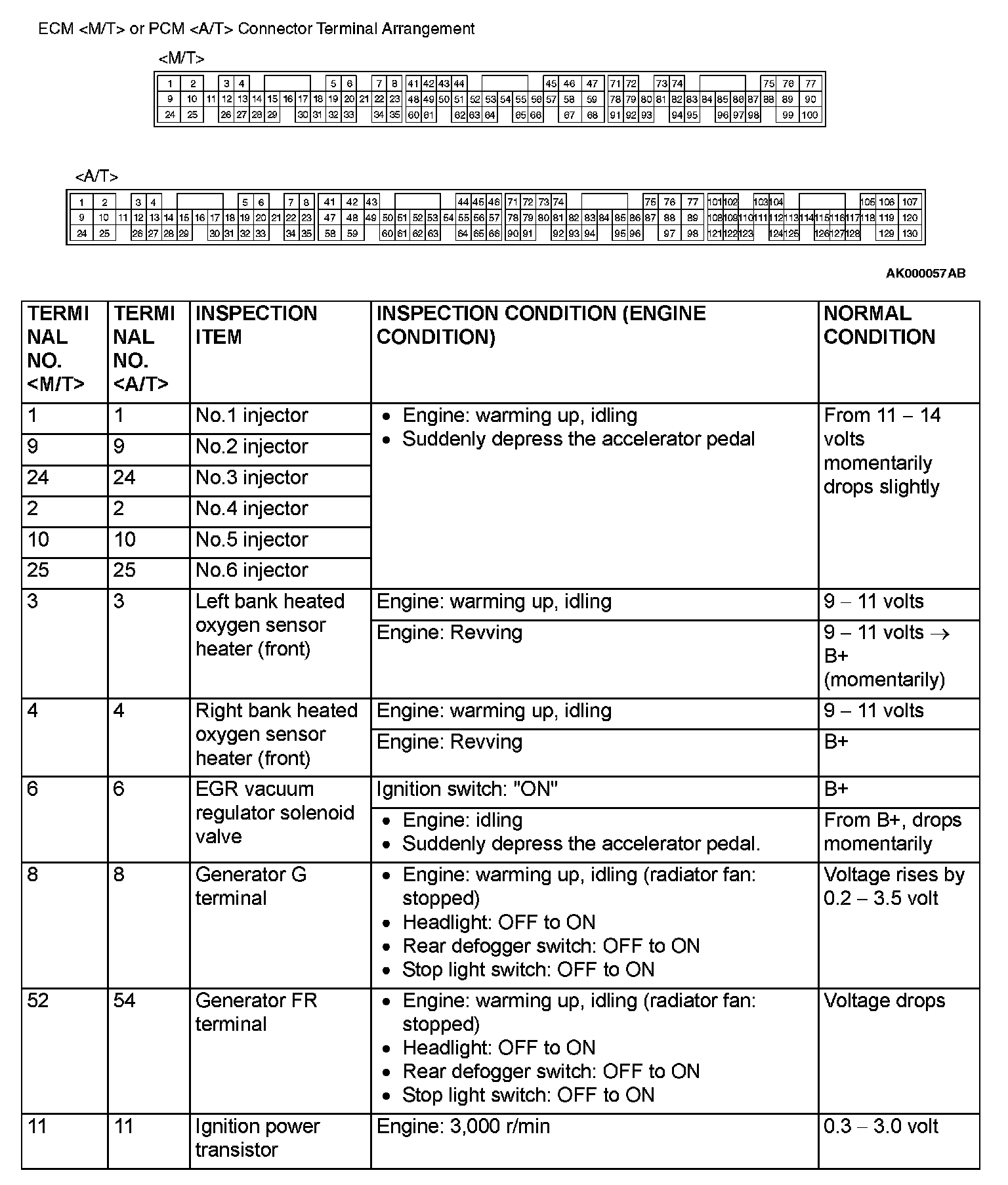

Terminal Voltage Check Chart - Part 4:

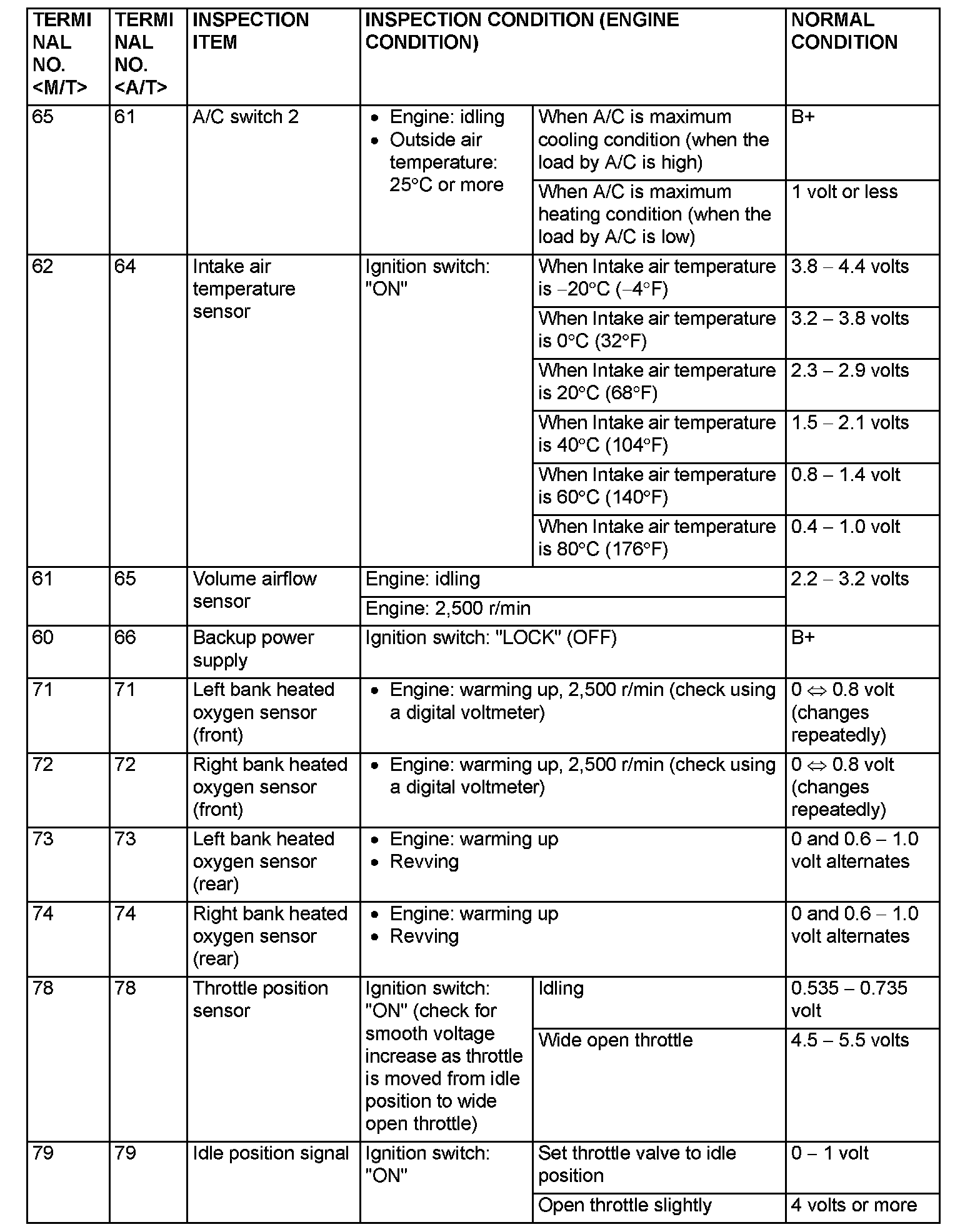

Terminal Voltage Check Chart - Part 5:

CHECK AT THE ENGINE CONTROL MODULE (ECU) OR POWERTRAIN CONTROL MODULE (PCM)

TERMINAL VOLTAGE CHECK CHART
