Power Steering Line/Hose: Service and Repair

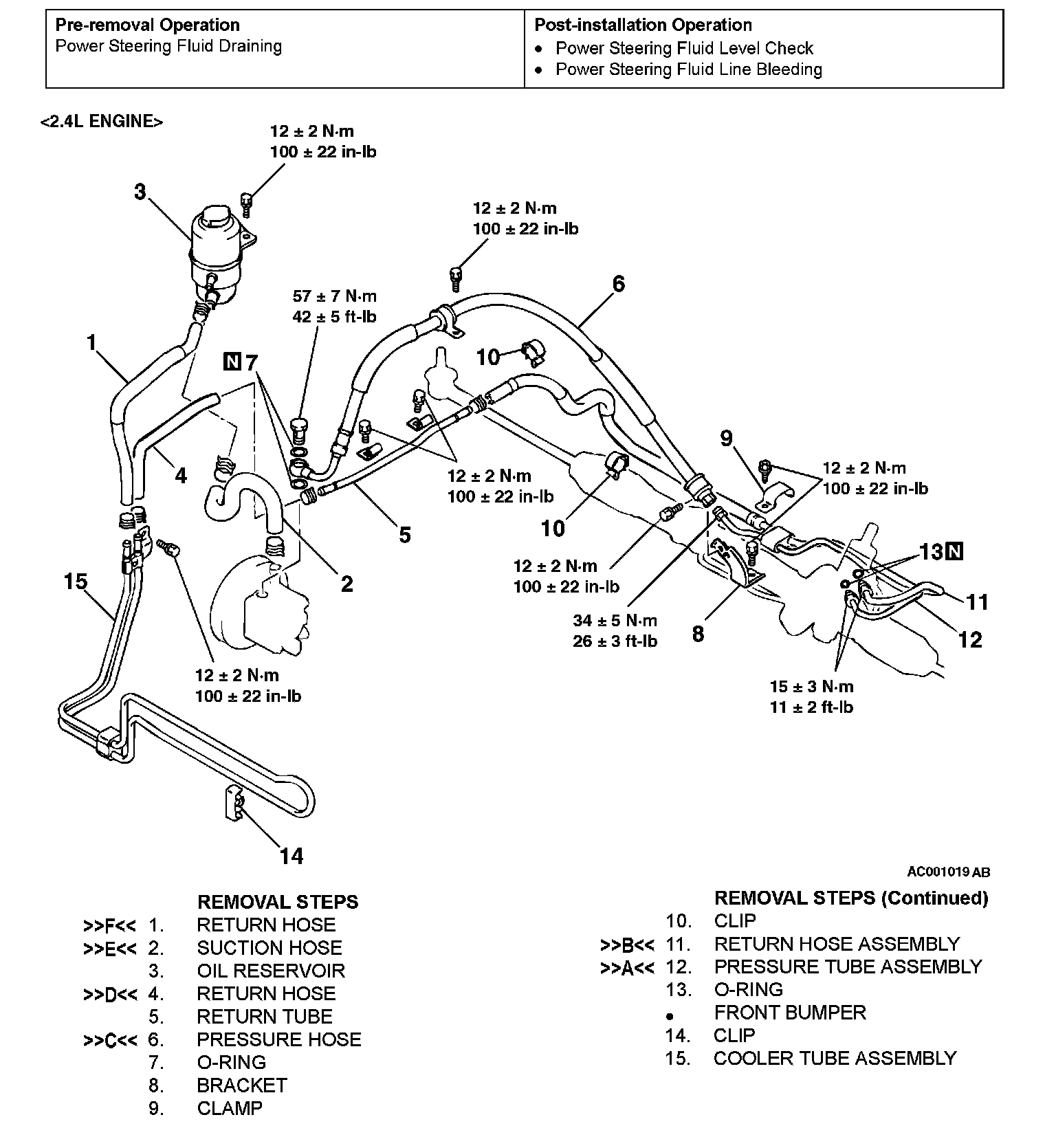

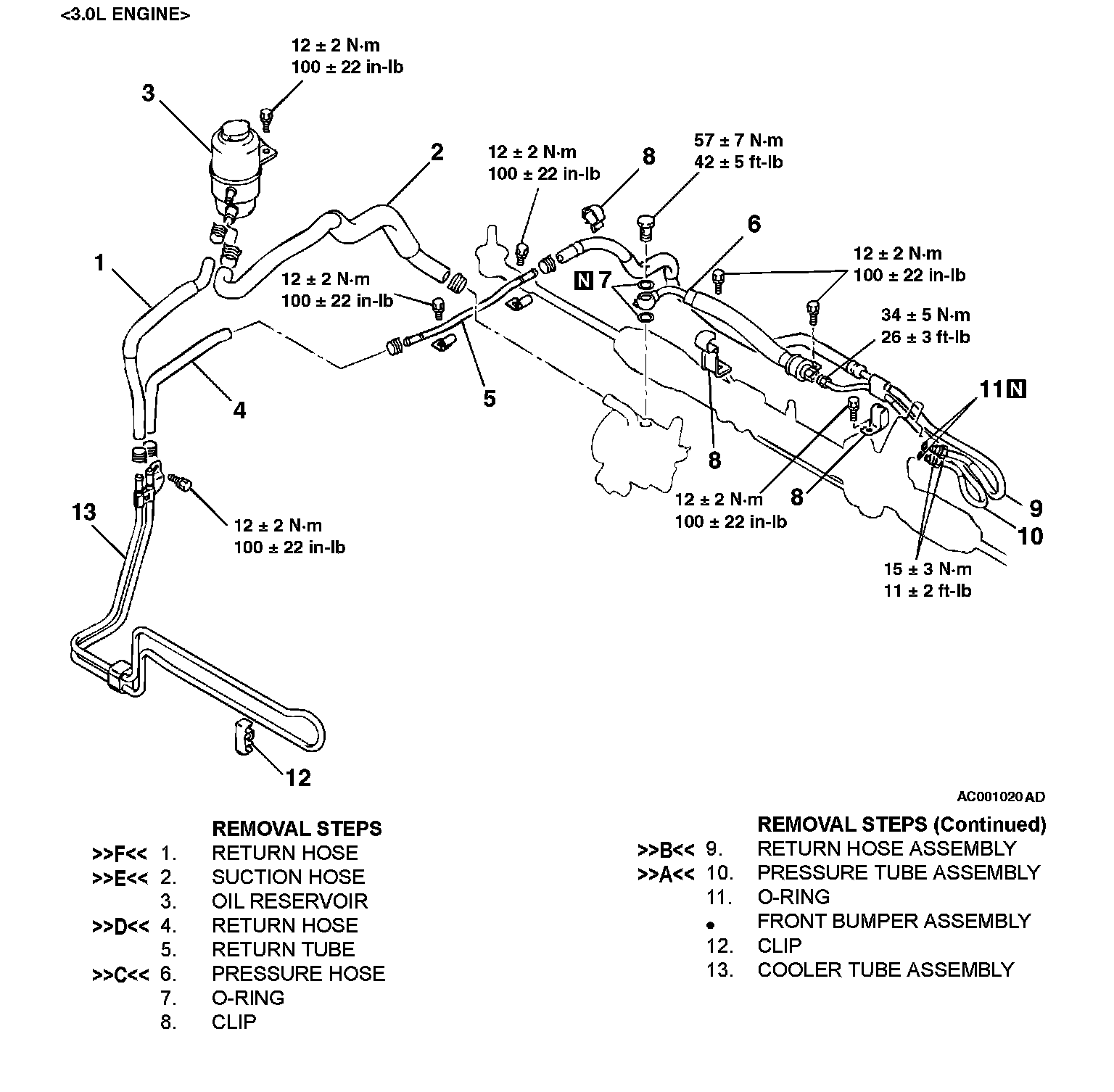

POWER STEERING HOSES








REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINTS

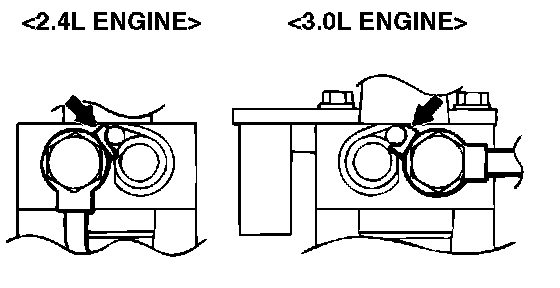

>>A<< PRESSURE TUBE ASSEMBLY INSTALLATION





Align the marks on the pressure tube assembly and steering gear box, and install the pressure tube assembly.

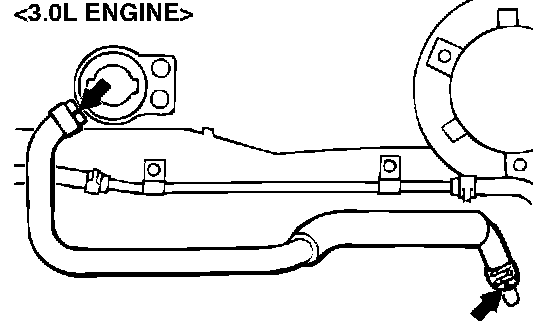

>>B<< RETURN HOSE ASSEMBLY INSTALLATION

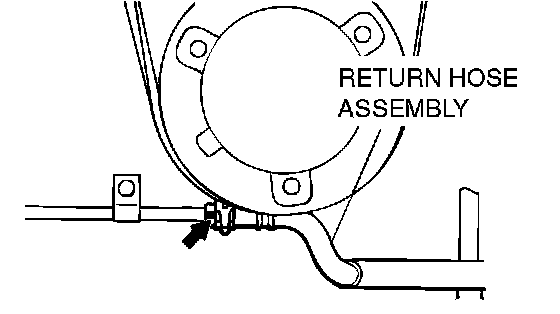

1. Align the marks on the return hose assembly and steering gear box, and install the return hose assembly.





2. Install the return hose assembly so that the marking is positioned as shown in the illustration.

>>C<< PRESSURE HOSE INSTALLATION

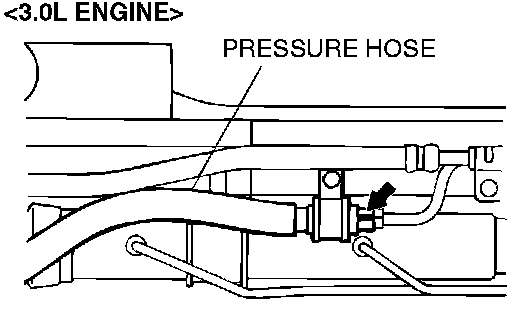

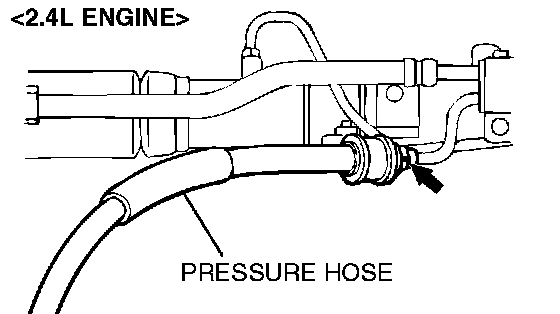

1. Install the pressure hose at the gear box side so that the marking is positioned as shown in the illustration.

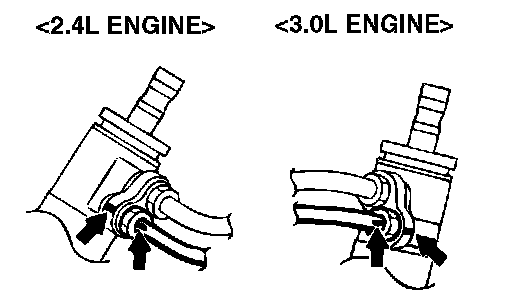

2. Install the pressure hose at the power steering oil pump side as shown in the illustration.

>>D<< RETURN HOSE INSTALLATION

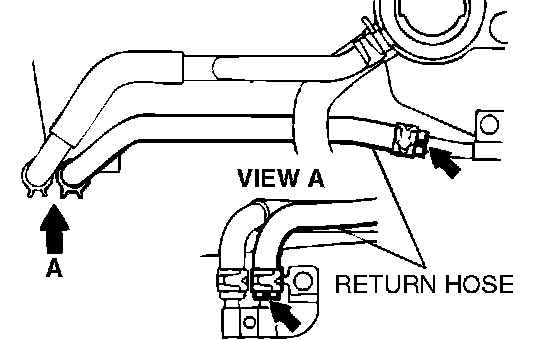

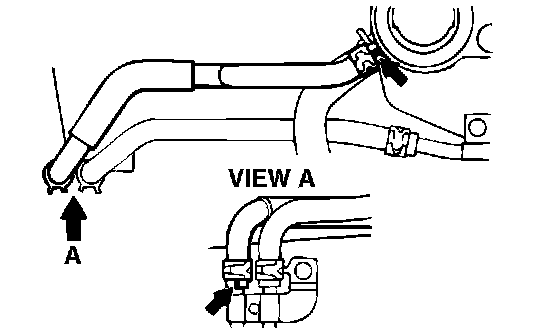

Install the return hose so that the markings are positioned as shown in the illustration.

>>E<< SUCTION HOSE INSTALLATION

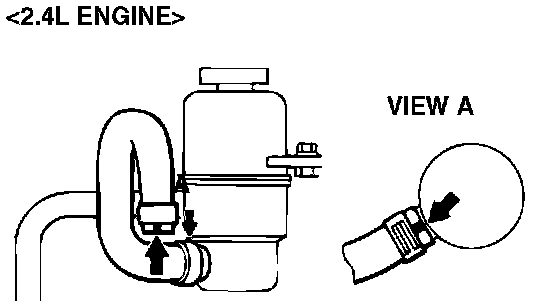

Install the suction hose so that the markings are positioned as shown in the illustration.

>>F<< RETURN HOSE INSTALLATION

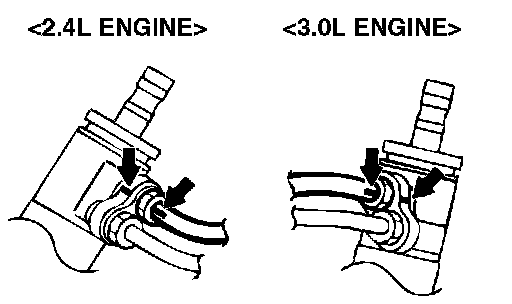

Install the return hose so that the markings are positioned as shown in the illustration.
