Home >> Chrysler >> 2005 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Locations >> Splice Locations >> S008 - S169 (Engine and Transaxle)

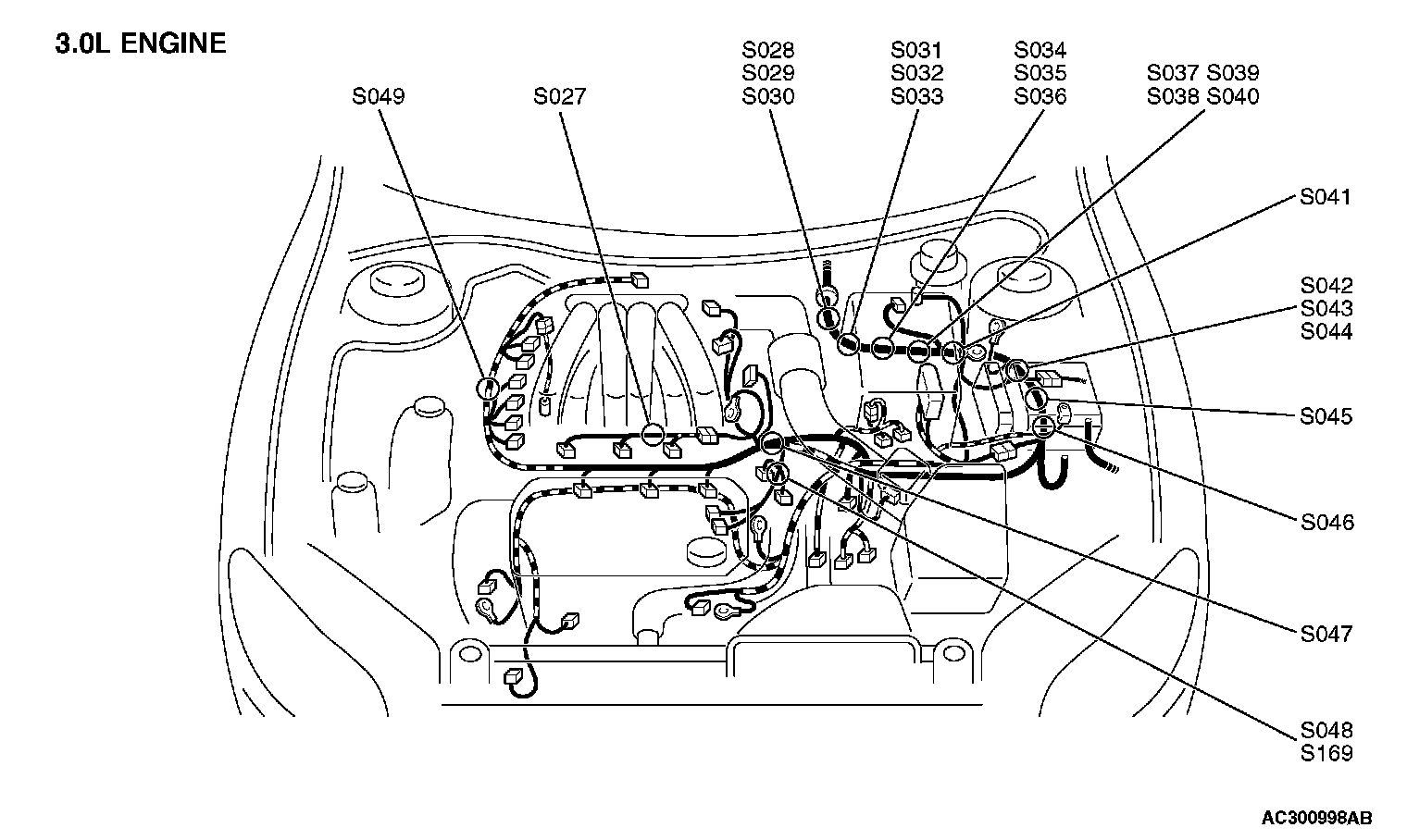

S008 - S169 (Engine and Transaxle)

S027 - S169:
