Fuse and Fusible Link Locations

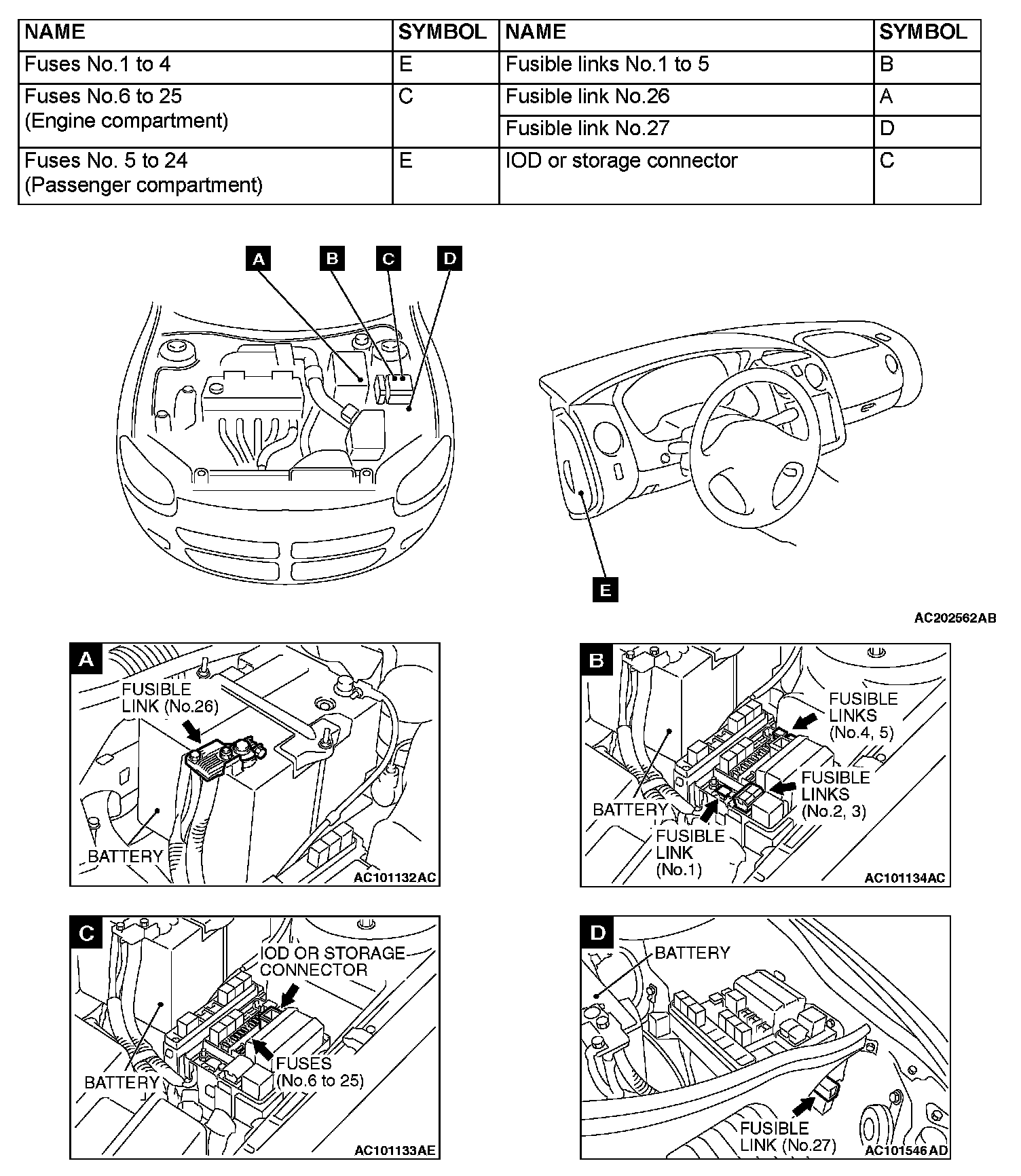

Fusible Link, Fuse And IOD Or Storage Connector Location Index, Overall View And Views A - D:

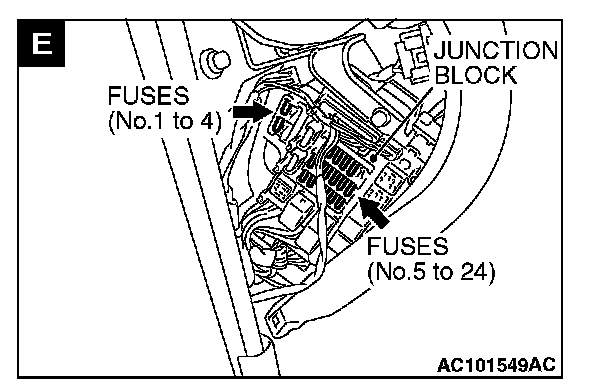

View E:
