Chrysler
>>
2005
>>
Sebring Coupe V6-3.0L VIN H
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Control Unit Locations
Control Unit Locations

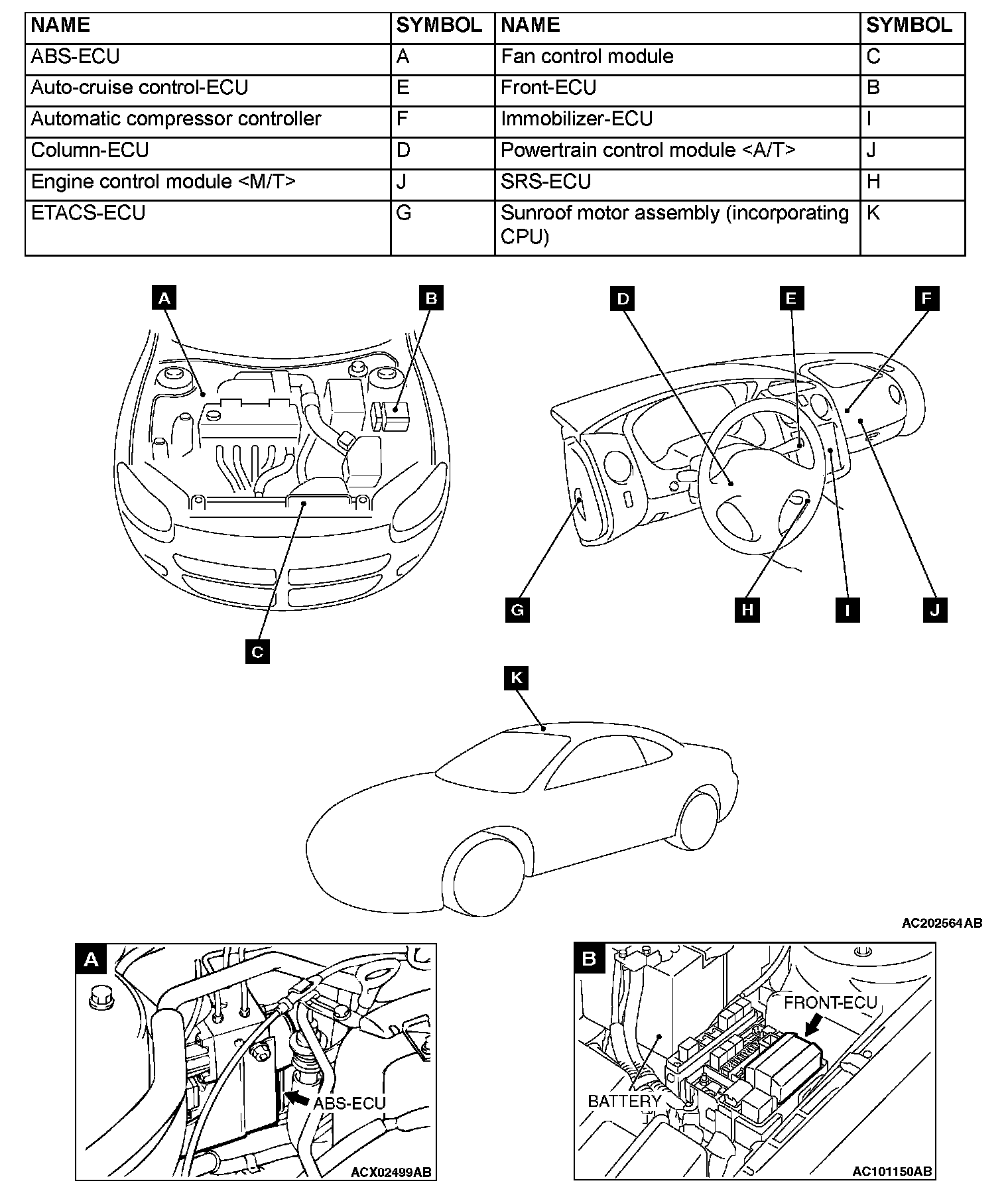

Views A - K:

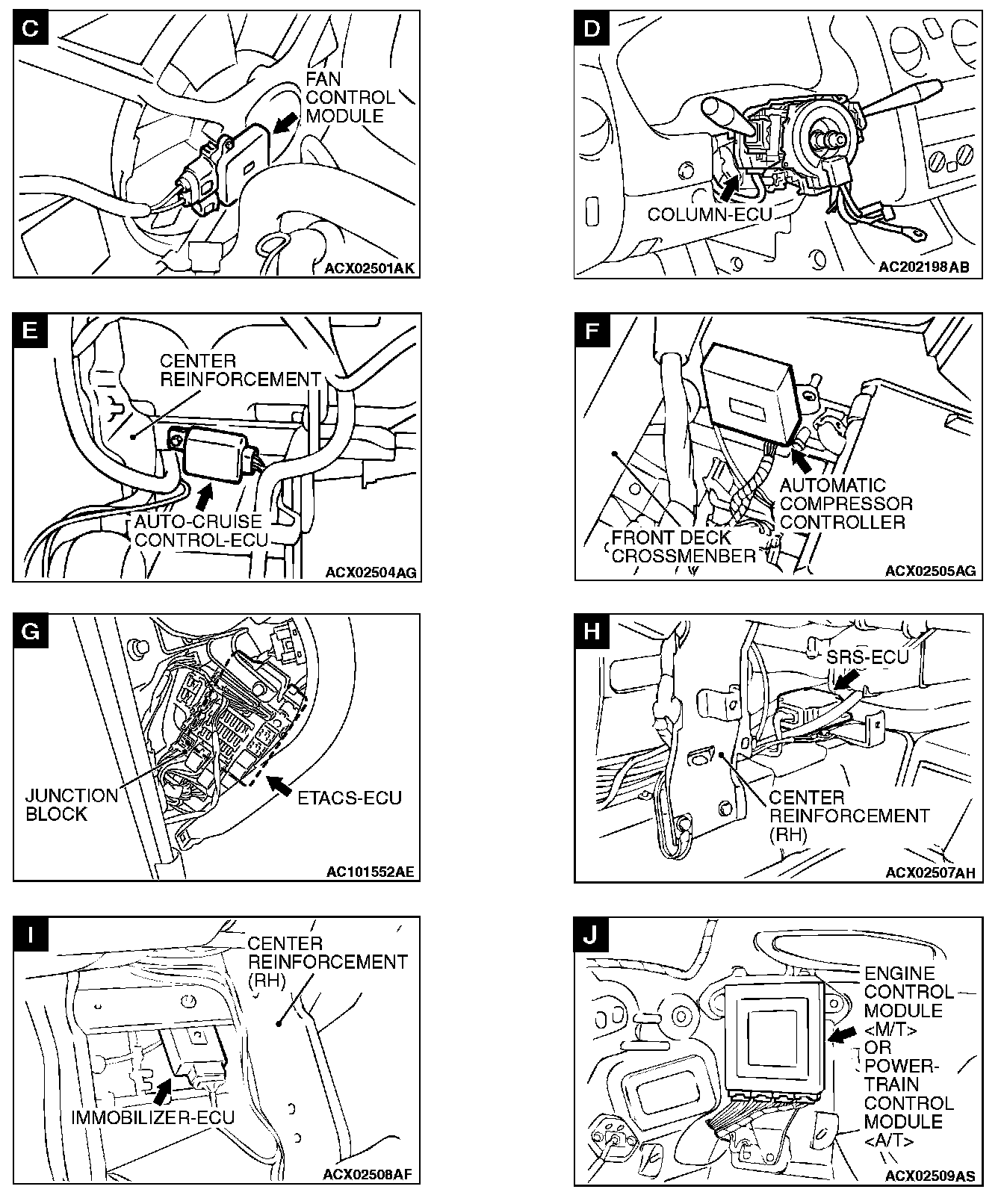

View C - J:

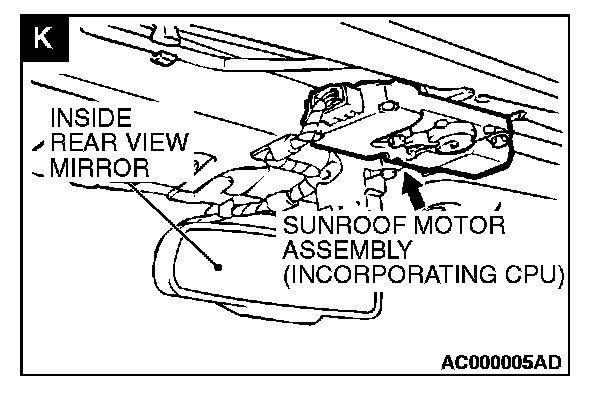

View K:
