Front Crankshaft Seal: Service and Repair

CRANKSHAFT FRONT OIL SEAL





REMOVAL AND INSTALLATION

Required Special Tool:
^ MD998717: Crankshaft Front Oil Seal Installer

INSTALLATION SERVICE POINTS
>>A<< CRANKSHAFT FRONT OIL SEAL INSTALLATION
1. Apply a small amount of engine oil to the oil seal lip and then insert.

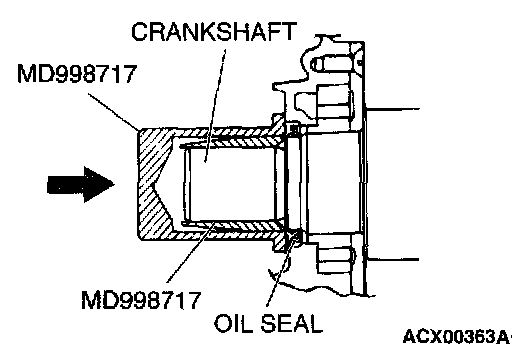

2. Using special tool MD998717, tap the oil seal into the front case.

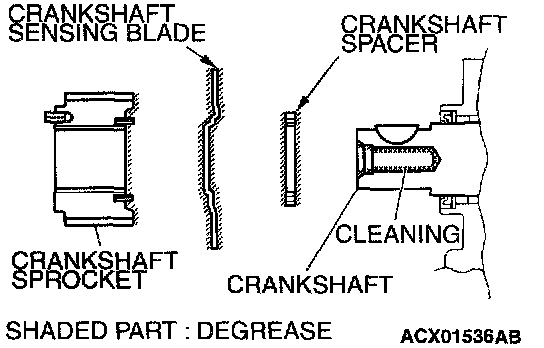

>>B<< CRANKSHAFT SPACER/CRANKSHAFT SENSING BLADE/CRANKSHAFT SPROCKET INSTALLATION





To prevent the crankshaft pulley mounting bolt from loosening, degrees or clean the crankshaft, the crankshaft spacer, the crankshaft sensing blade and the crankshaft at the shown positions.
