Engine Mounts

ENGINE MOUNTING

REMOVAL AND INSTALLATION

CAUTION: Mounting locations marked by * should be provisionally tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.





<2.4L ENGINE>

INSTALLATION SERVICE POINT

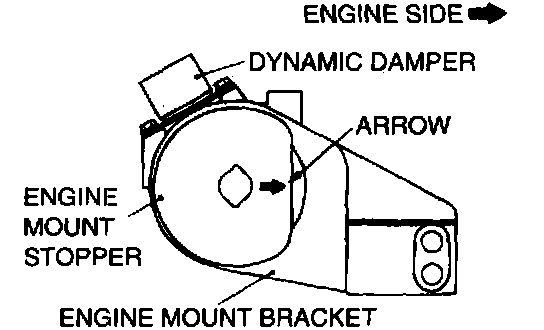

>>A<< ENGINE MOUNT STOPPER INSTALLATION





Clamp the engine mount stopper so that the arrow points in the direction as shown in the diagram.

INSPECTION
^ Check the insulators for cracks, separation or deformation.
^ Check the front insulator stoppers for deformation.
