Coolant Line/Hose: Service and Repair
WATER HOSE AND WATER PIPE REMOVAL AND INSTALLATION
<2.4L ENGINE>
<3.0L ENGINE>
REMOVAL SERVICE POINT

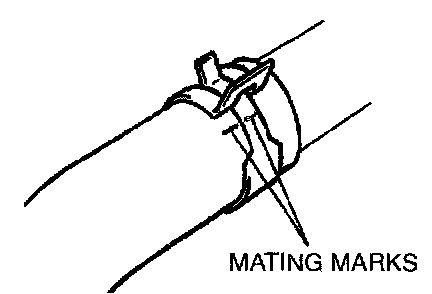

<> RADIATOR UPPER HOSE DISCONNECTION
After making mating marks on the radiator hose and hose clamp, disconnect the radiator hose.
INSTALLATION SERVICE POINTS

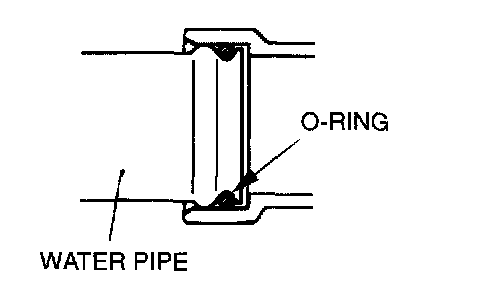

>>A<< O-RING INSTALLATION
CAUTION Do not allow engine oil or other grease to adhere to the O ring.
Install the O-ring to the water pipe, and coat the outer portion of the O-ring with water or engine coolant
>>B<< WATER OUTLET FITTING <2.4L Engine>/ THERMOSTAT CASE ASSEMBLY <2.4L Engines INSTALLATION
Apply a continuous bead of MITSUBISHI GENUINE Sealant Part number MD970389 or equivalent to the thermostat housing mating surface.

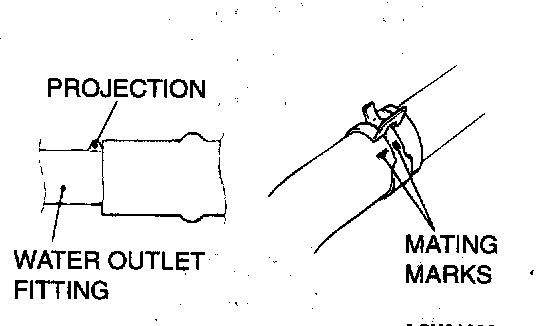

>>C<< RADIATOR UPPER/LOWER HOSE CONNECTION
1. Insert each hose as far as the projection of the water outlet fitting.
2. Align the mating marks on the radiator hose and hose clamp, and then connect the radiator hose.
INSPECTION
Water Pipe and Hose Check
Check the water pipe and hose for cracks, damage and clogs.
Replace them if necessary.
