C Connector - Dash Panel
>>
C-301 to C-319
C-301 to C-319

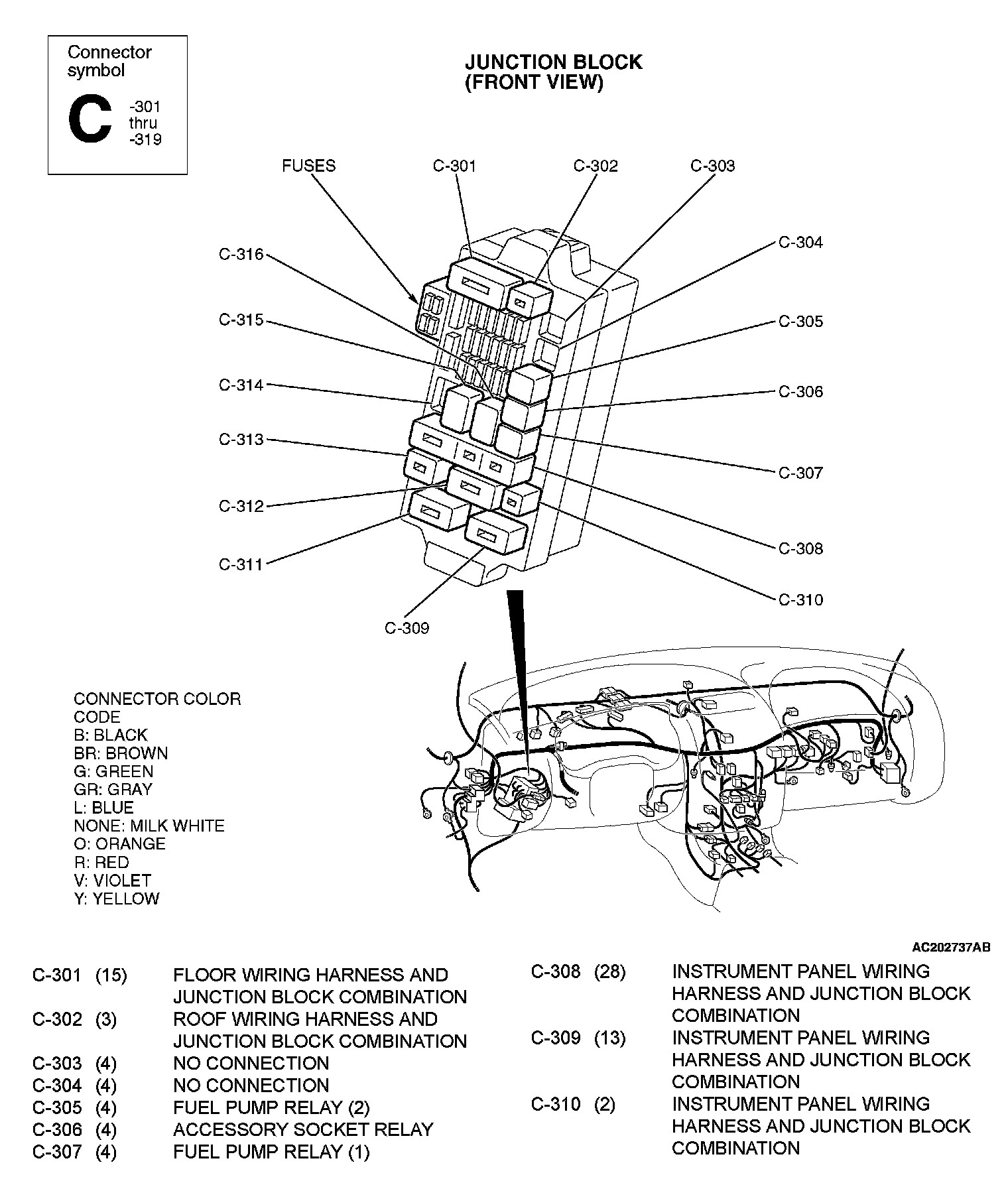

Dash Panel - C Connector [ 301(15) Thru 310(2) ]:

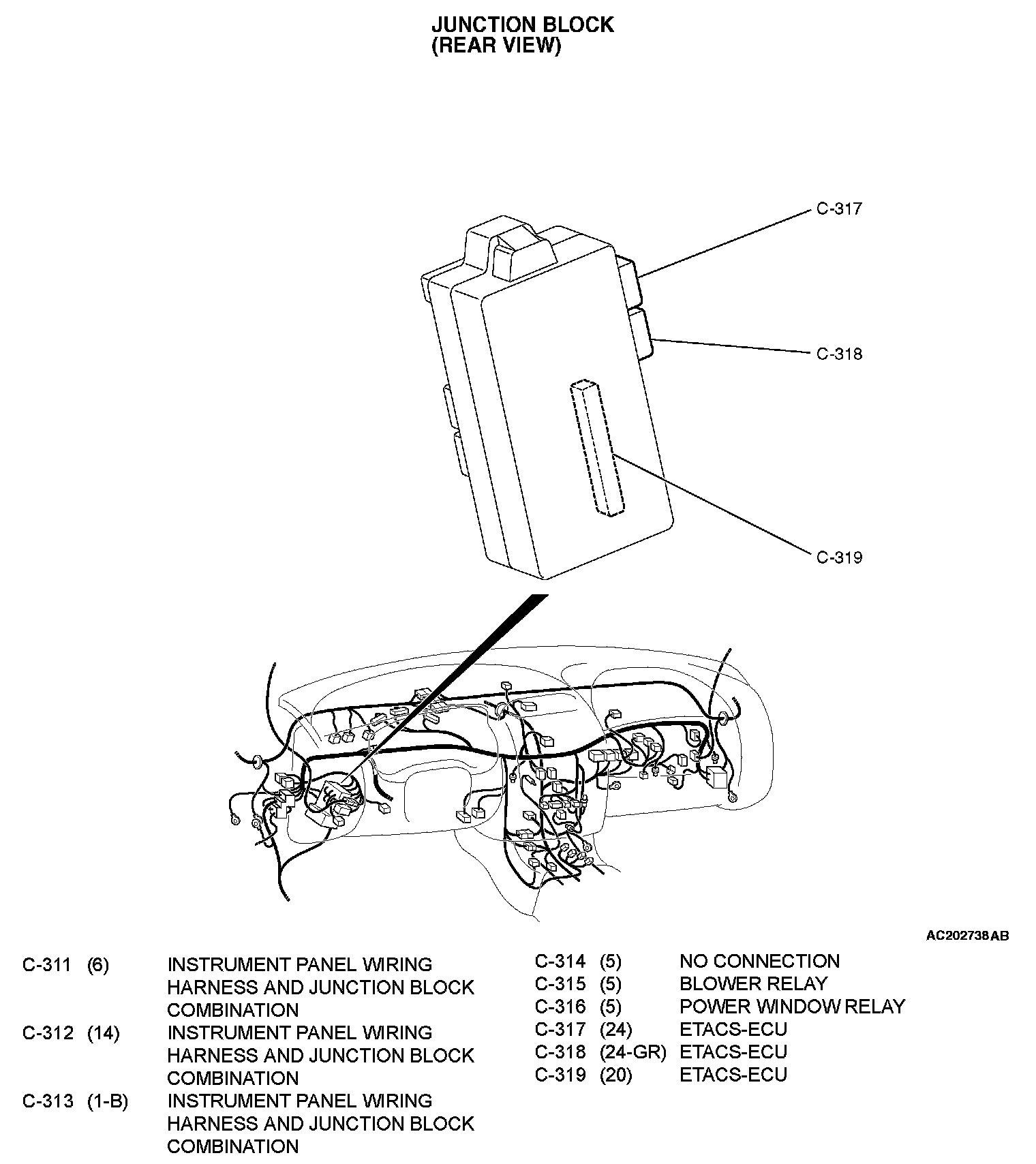

Dash Panel - C Connector [ 311(6) Thru 319(20) ]:
