C-201 to C-216

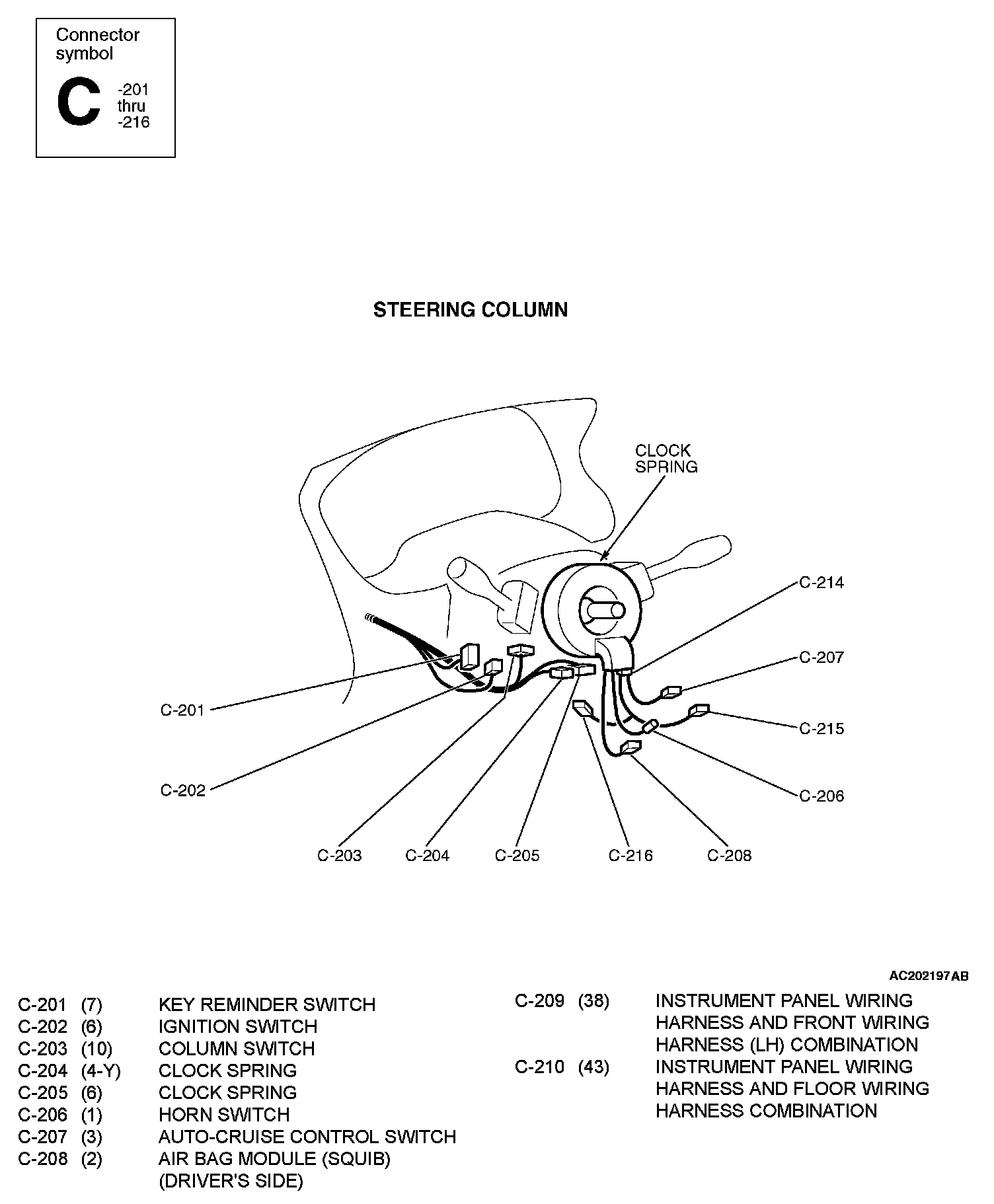

Dash Panel - C Connector [ 201(7) Thru 210(43) ]:

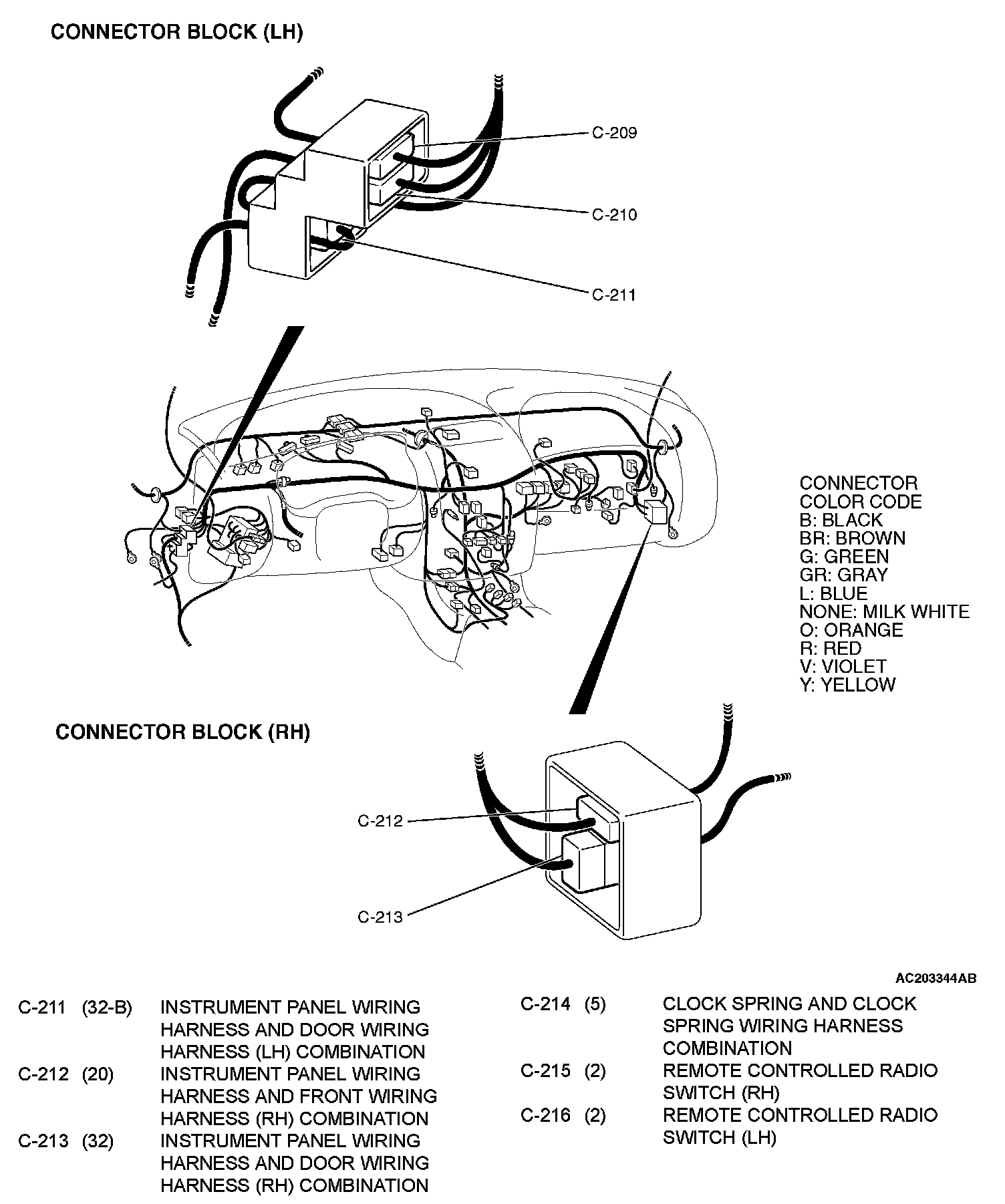

Dash Panel - C Connector [ 211(32-B) Thru 216(2) ]:
