C Connector - Dash Panel
>>
C-101 to C-145
C-101 to C-145
Dash Panel - C Connector [ 101(22-L) Thru 119(28-GR) ]:

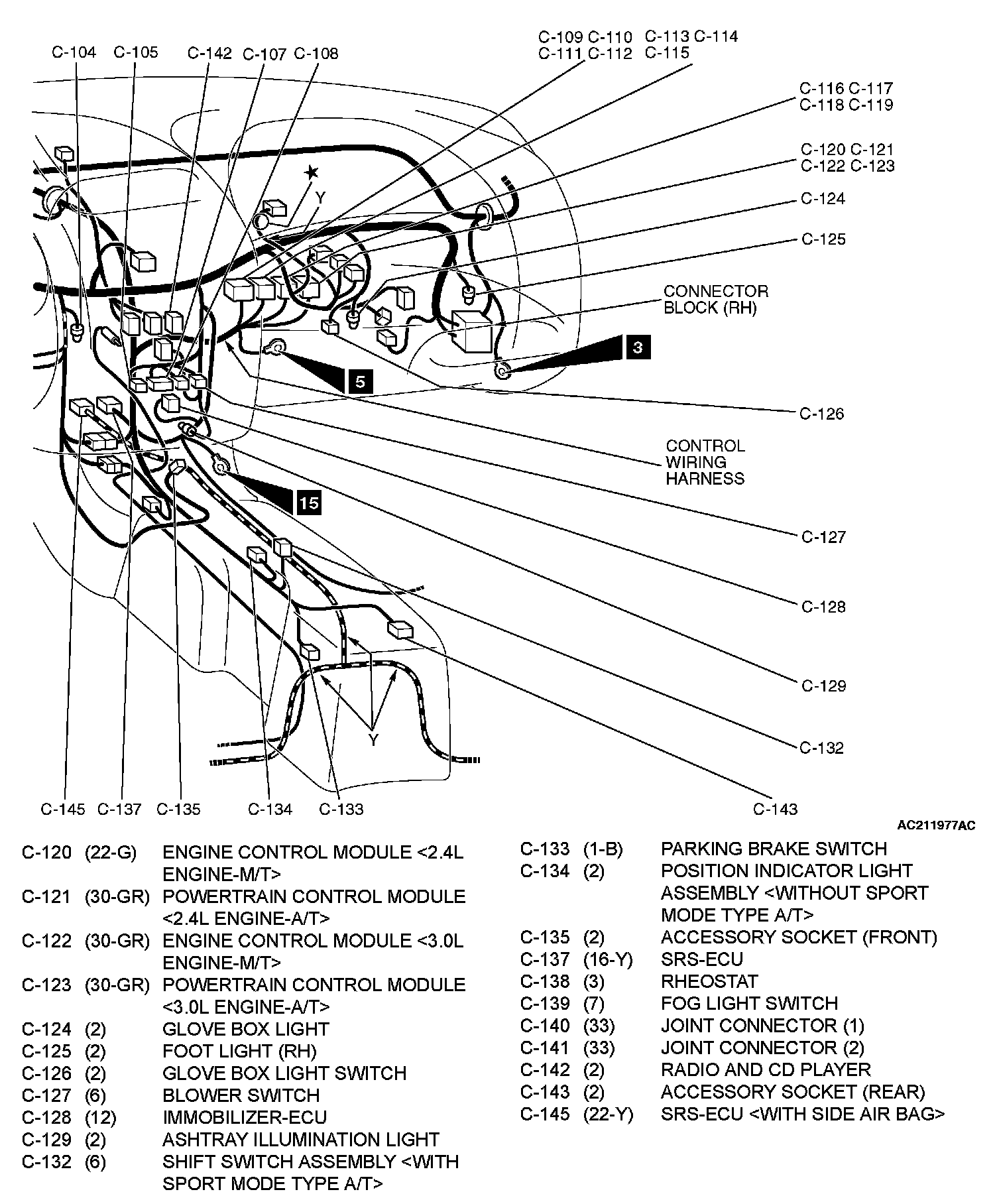

Dash Panel - C Connector [ 120(22-G) Thru 145(22-Y) ]:
