C-01 to C-32

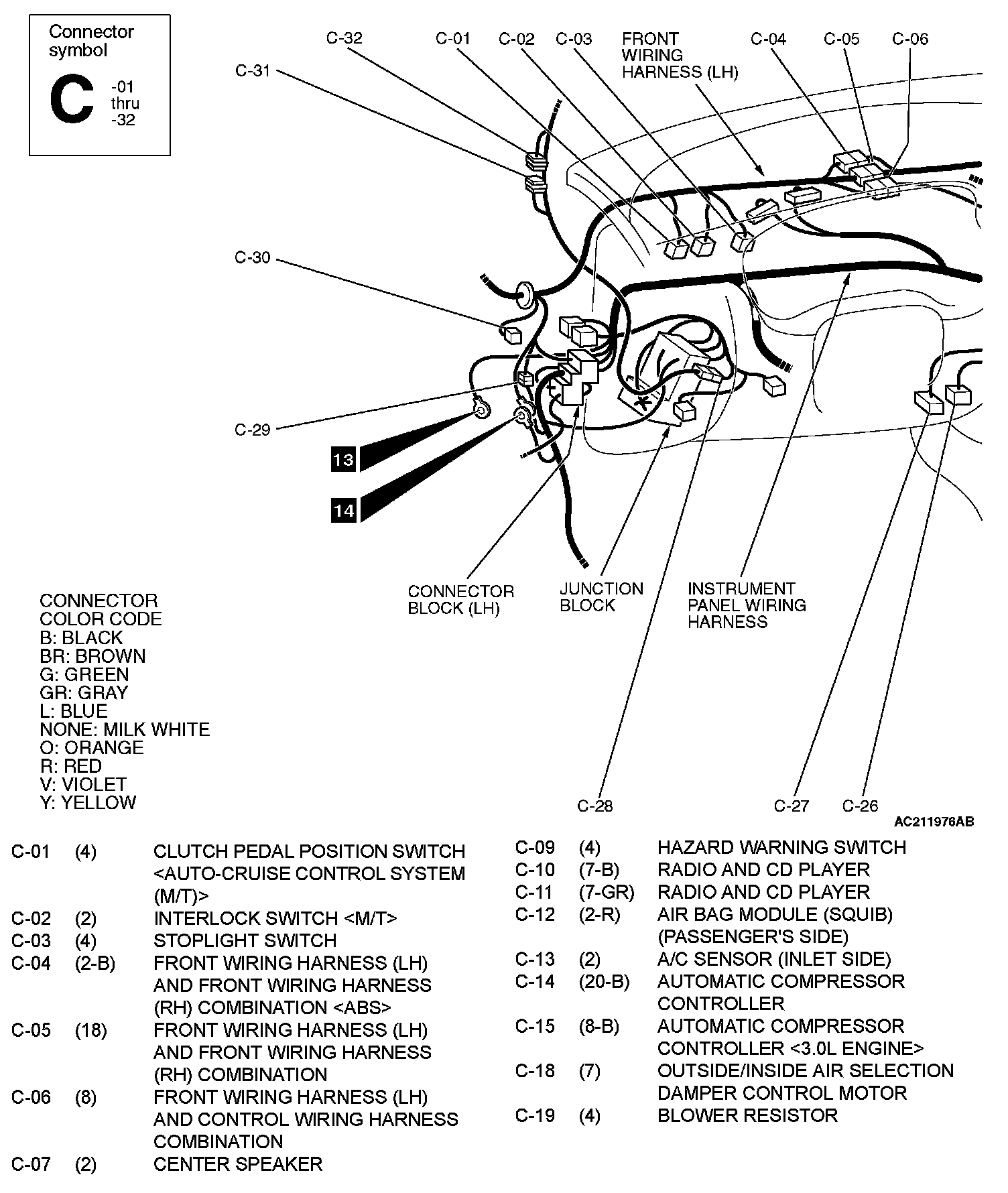

Dash Panel - C Connector [ 01(4) Thru 19(4) ]:

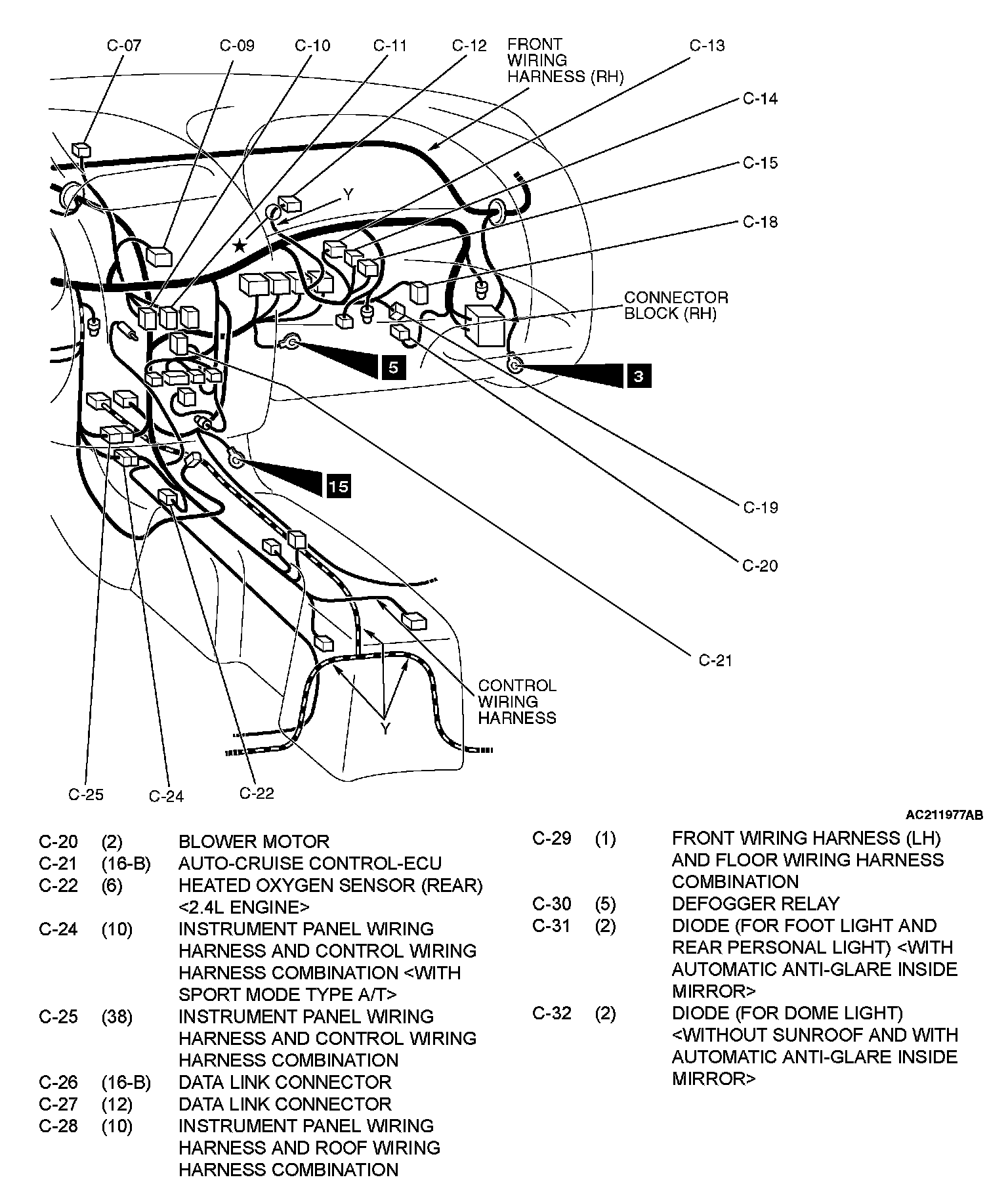

Dash Panel - C Connector [ 20(2) Thru 32(2) ]:
