Home >> Chrysler >> 2005 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Actuator >> Service and Repair

Power Door Lock Actuator: Service and Repair

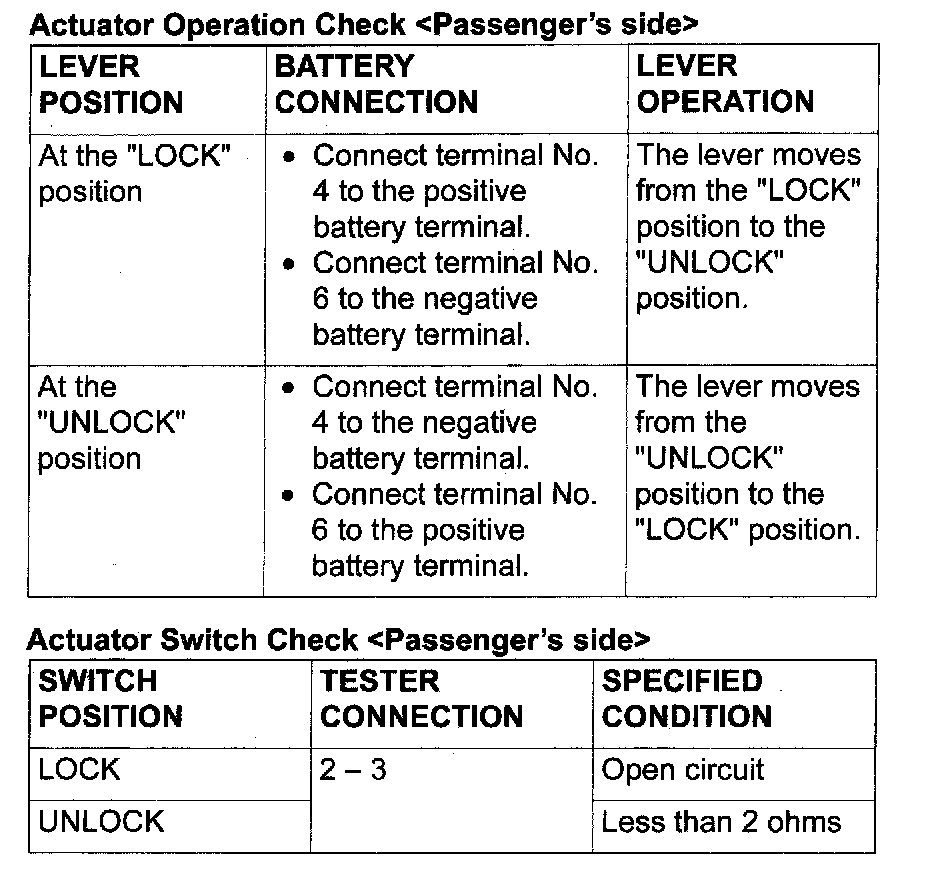

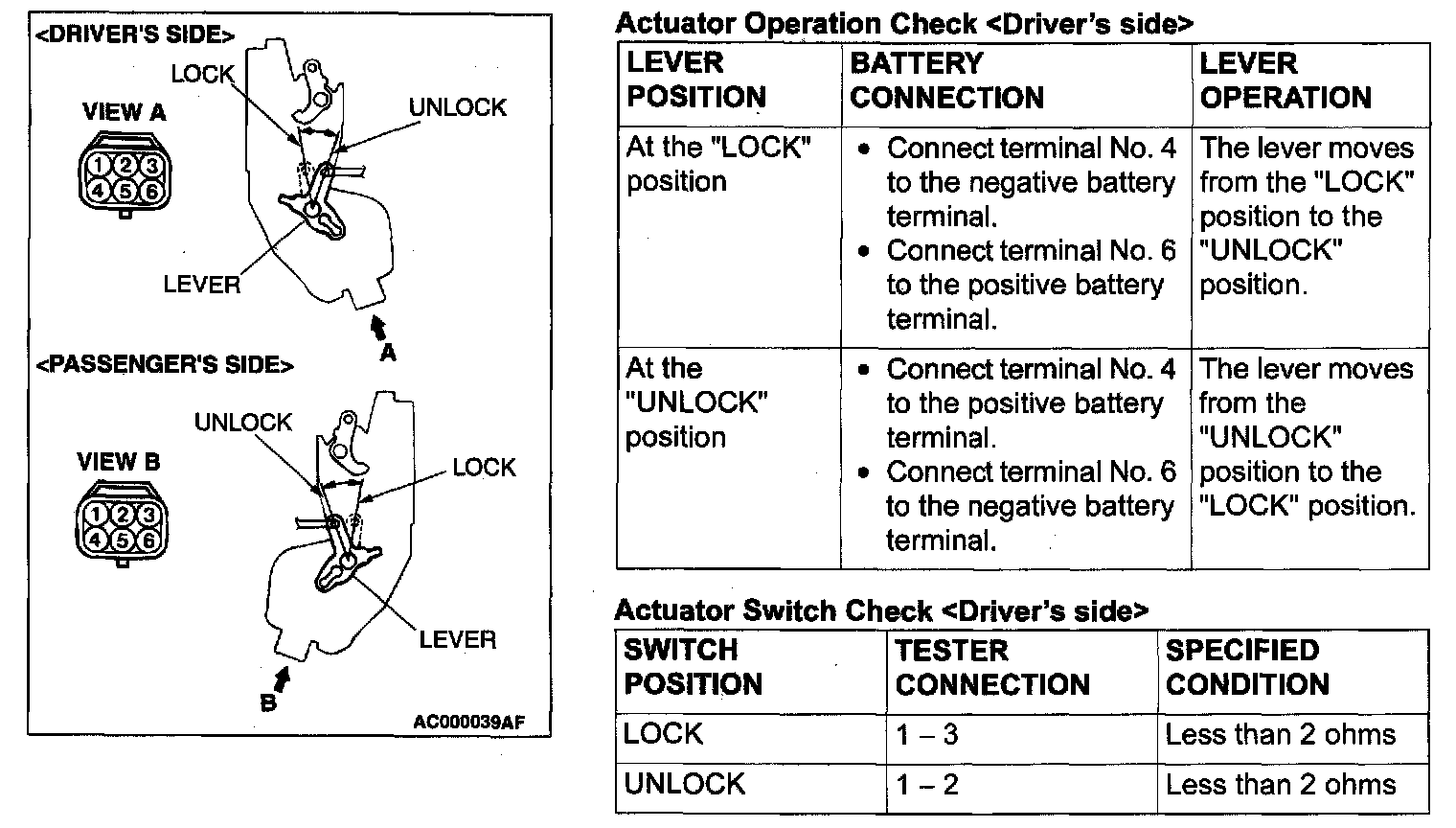

Door Lock Actuator Check:



Door Lock Actuator Check:
