Removal and Replacement

FRONT BUMPER ASSEMBLY






REMOVAL AND INSTALLATION

Required Special Tool:
- MB990784: Ornament Remover

REMOVAL SERVICE POINT

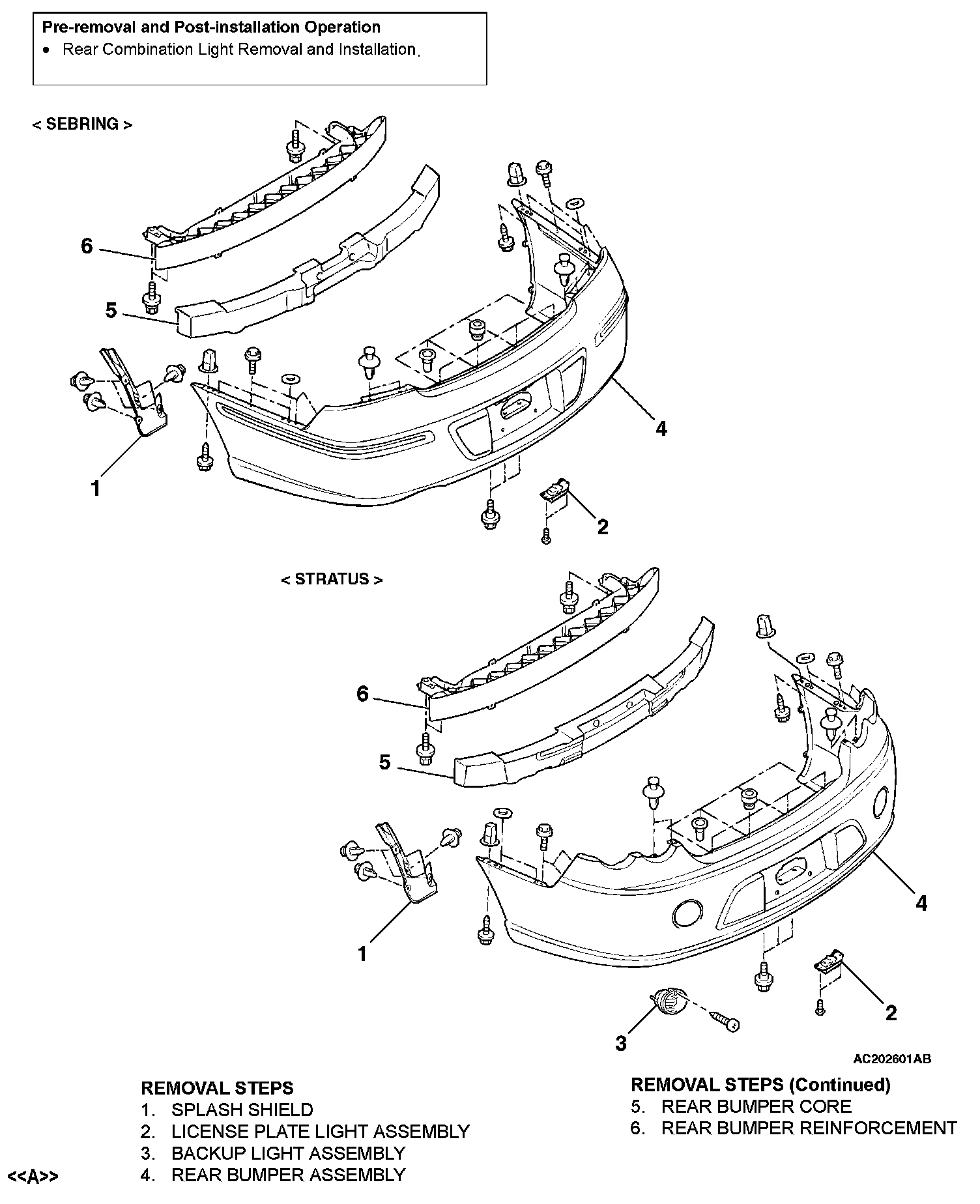

<> REAR BUMPER ASSEMBLY REMOVAL

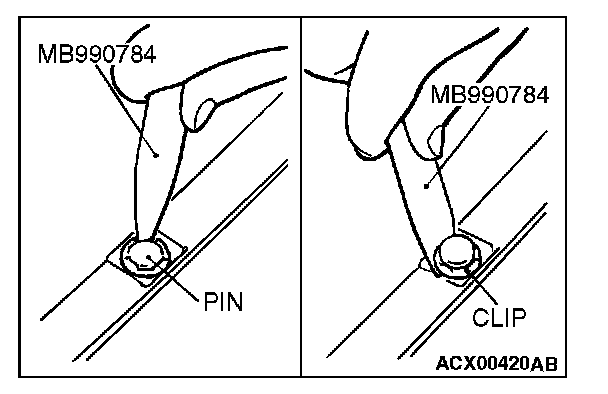

1. Use special tool MB990784 to pull up the center pin in the clip.
2. Remove the clip.
