Snap Rings, Spacers and Thrust Plate For Adjustment

SNAP RINGS, SPACERS AND THRUST PLATE FOR ADJUSTMENT

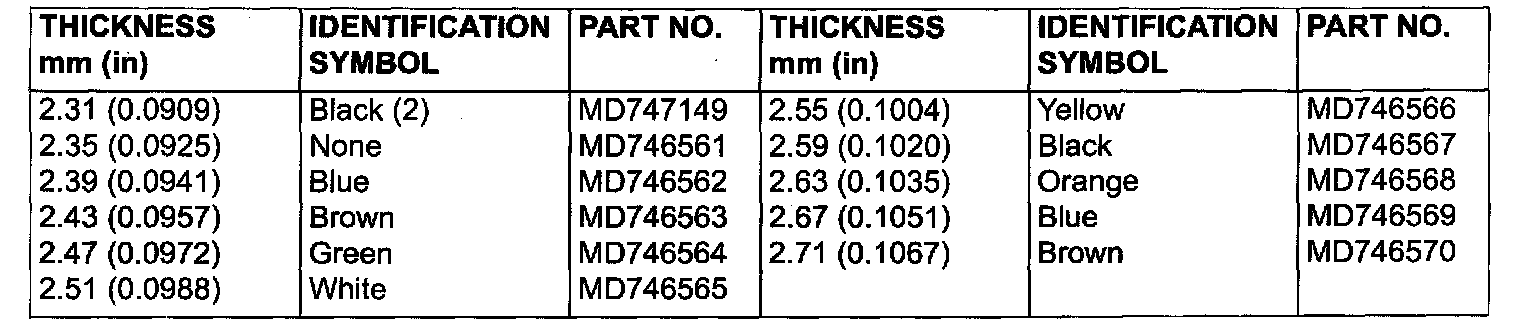

Snap ring (For adjustment of input shaft front bearing end play)

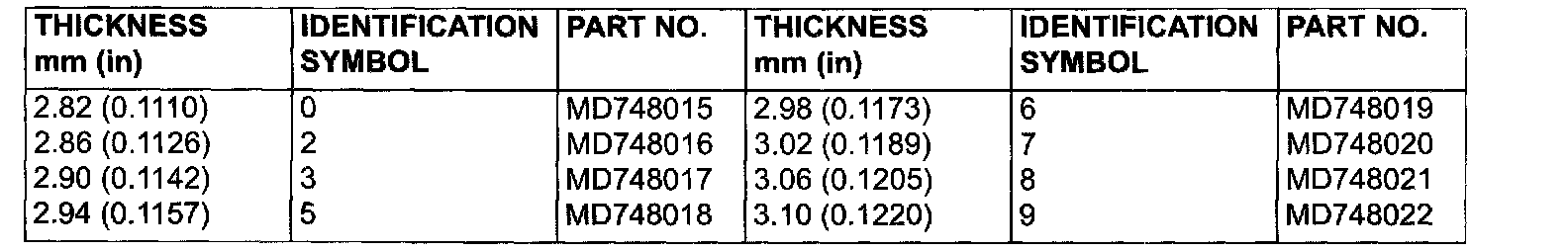

(For adjustment of input shaft rear bearing end play)
(For adjustment of output shaft front bearing end play)

Thrust plate (For adjustment of input shaft 5th speed gear end play)

Snap ring (For adjustment of output shaft 3rd speed gear end play)

Snap ring (For adjustment of output shaft rear bearing end play)
