Symptom Index

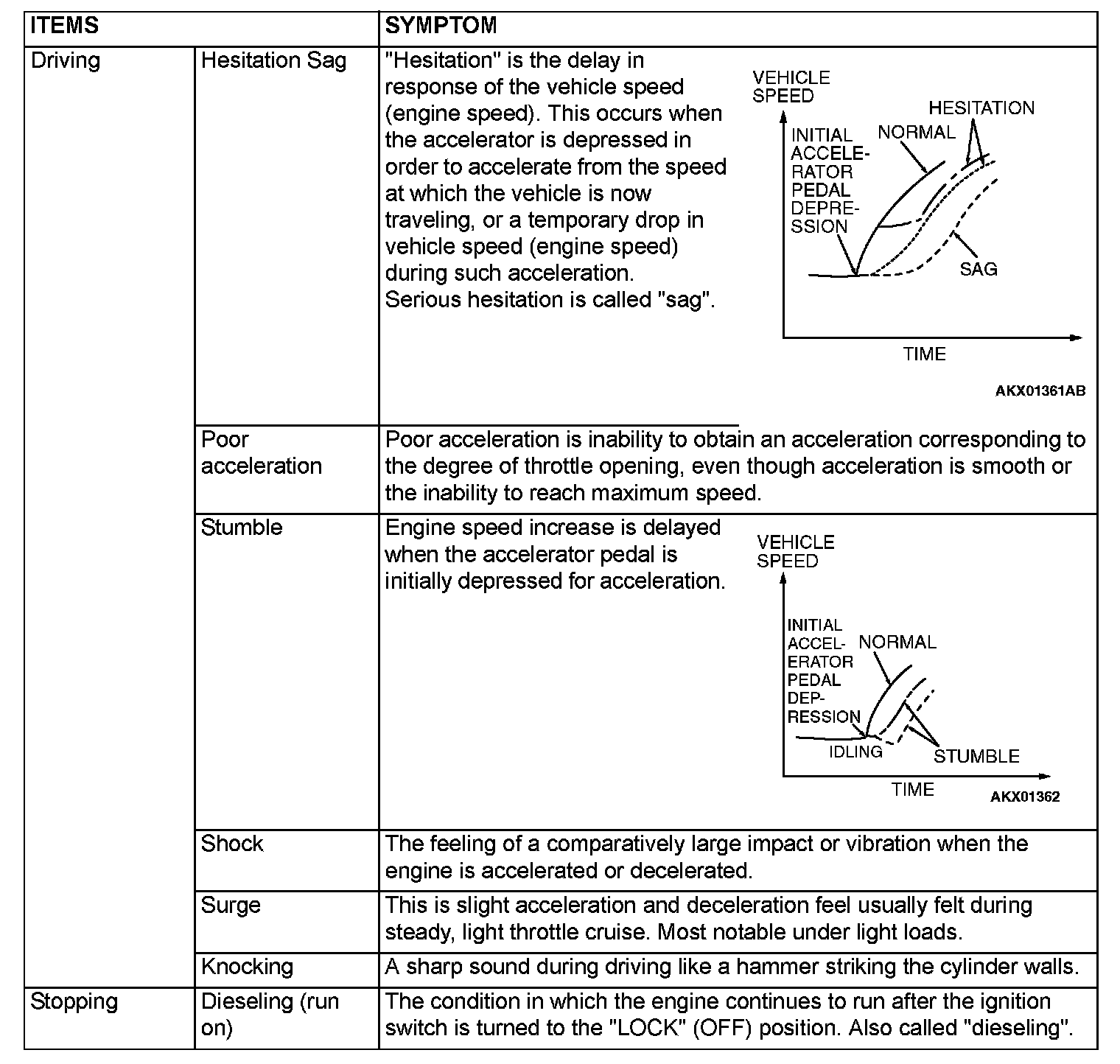

Symptoms Chart - Part 1:

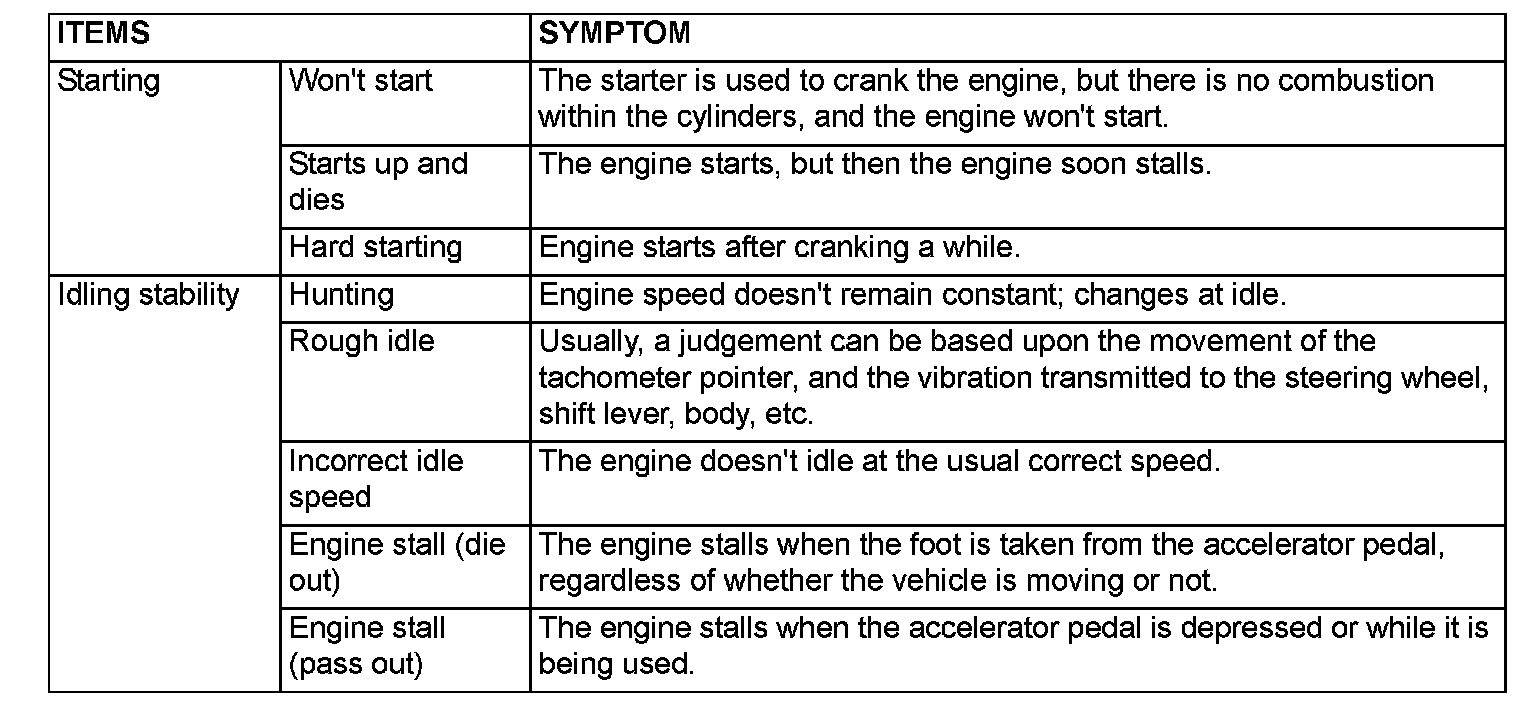

Symptoms Chart - Part 2:

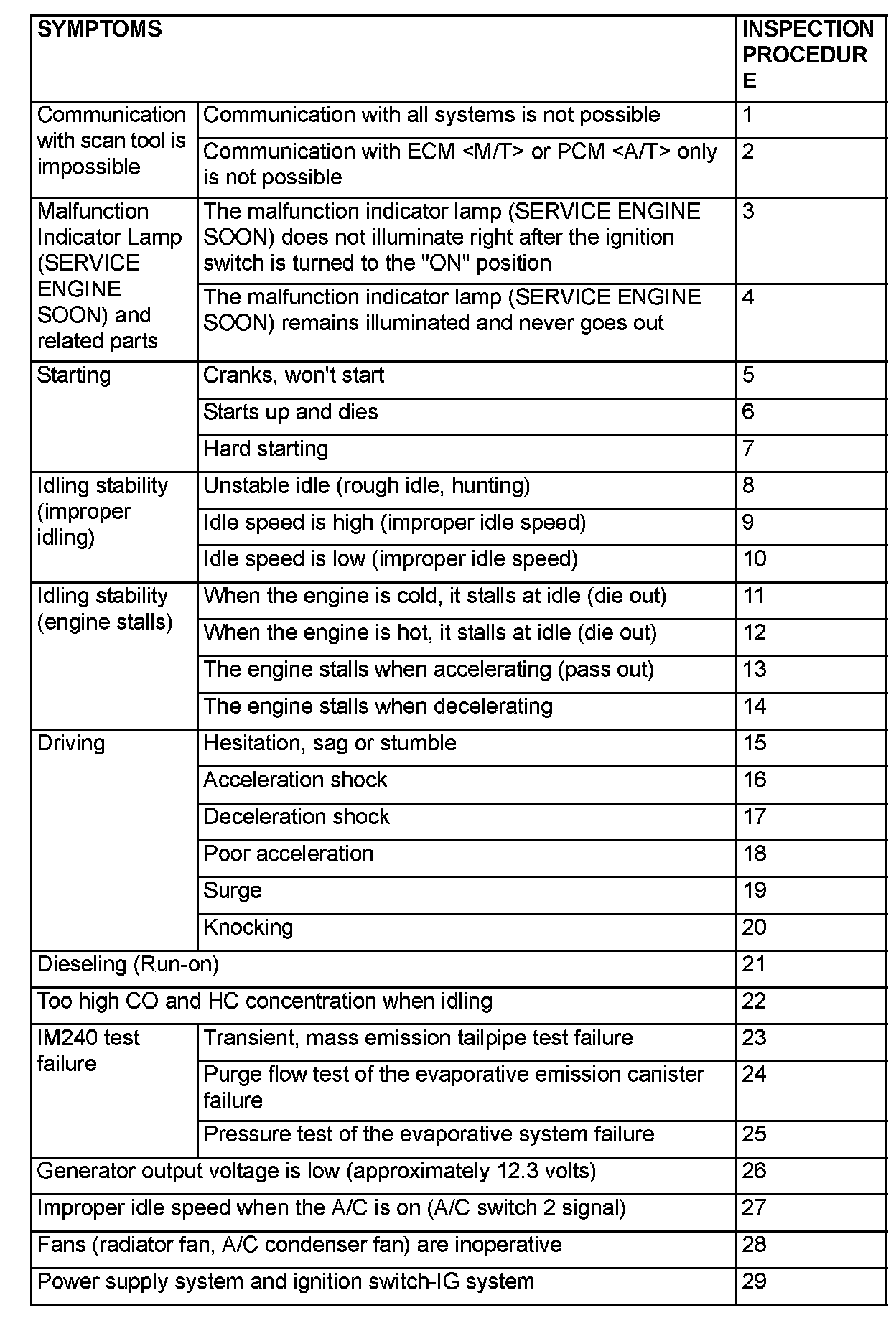

Problem Symptoms Table Part 1:

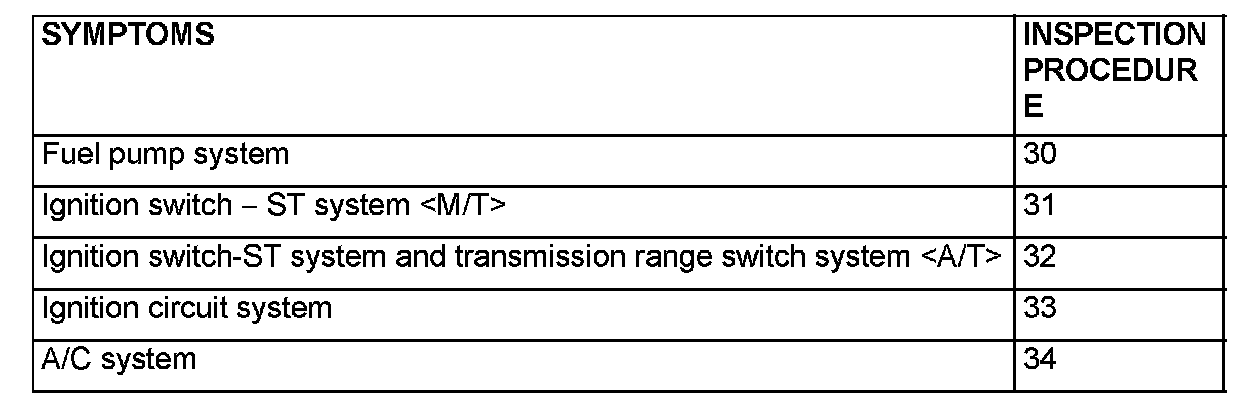

Problem Symptoms Table Part 2:

NOTE: Check that the engine control module (ECM) or powertrain control module (PCM) ground circuit is normal before checking for the cause of the problem.
