Data List Reference Table

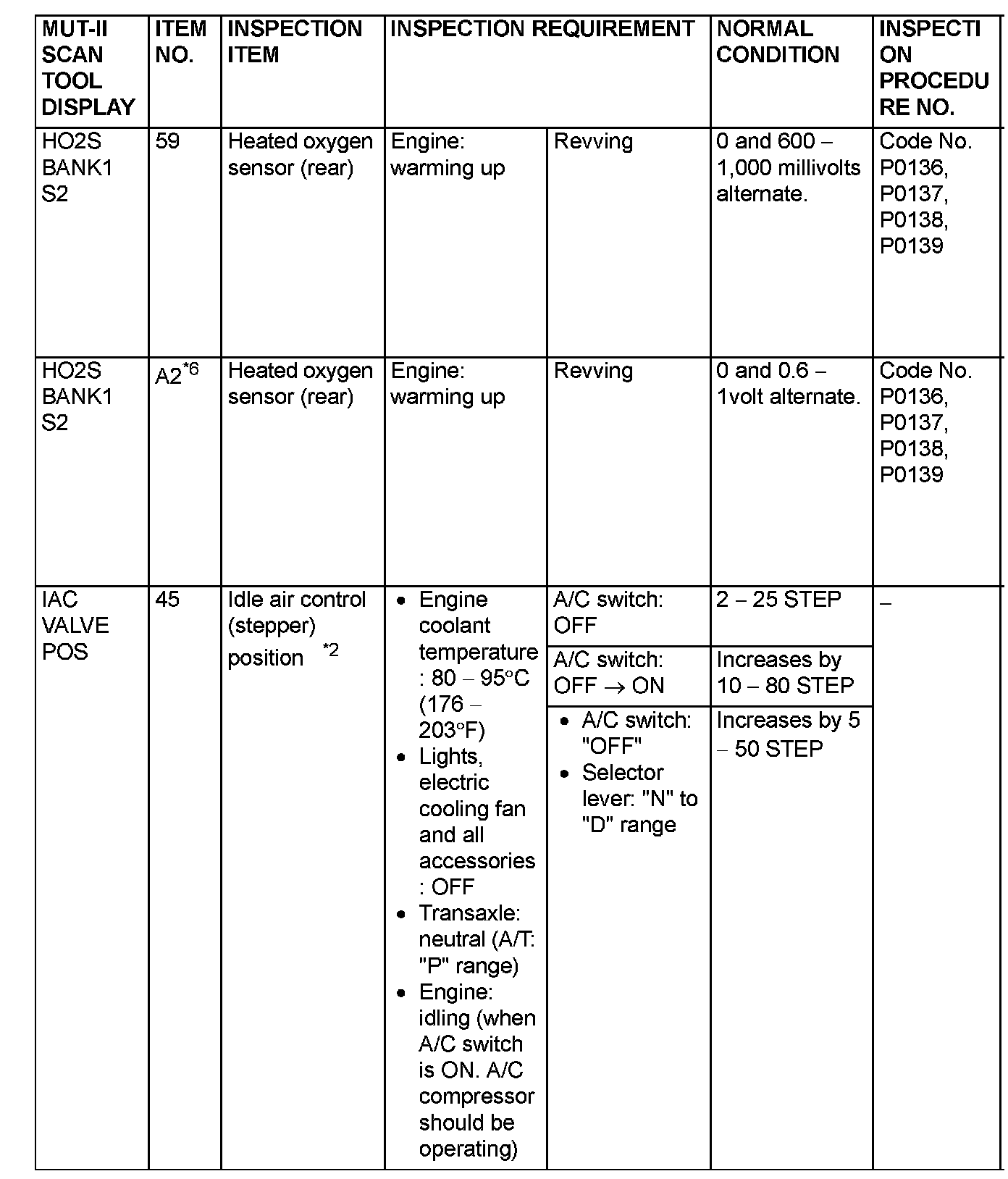

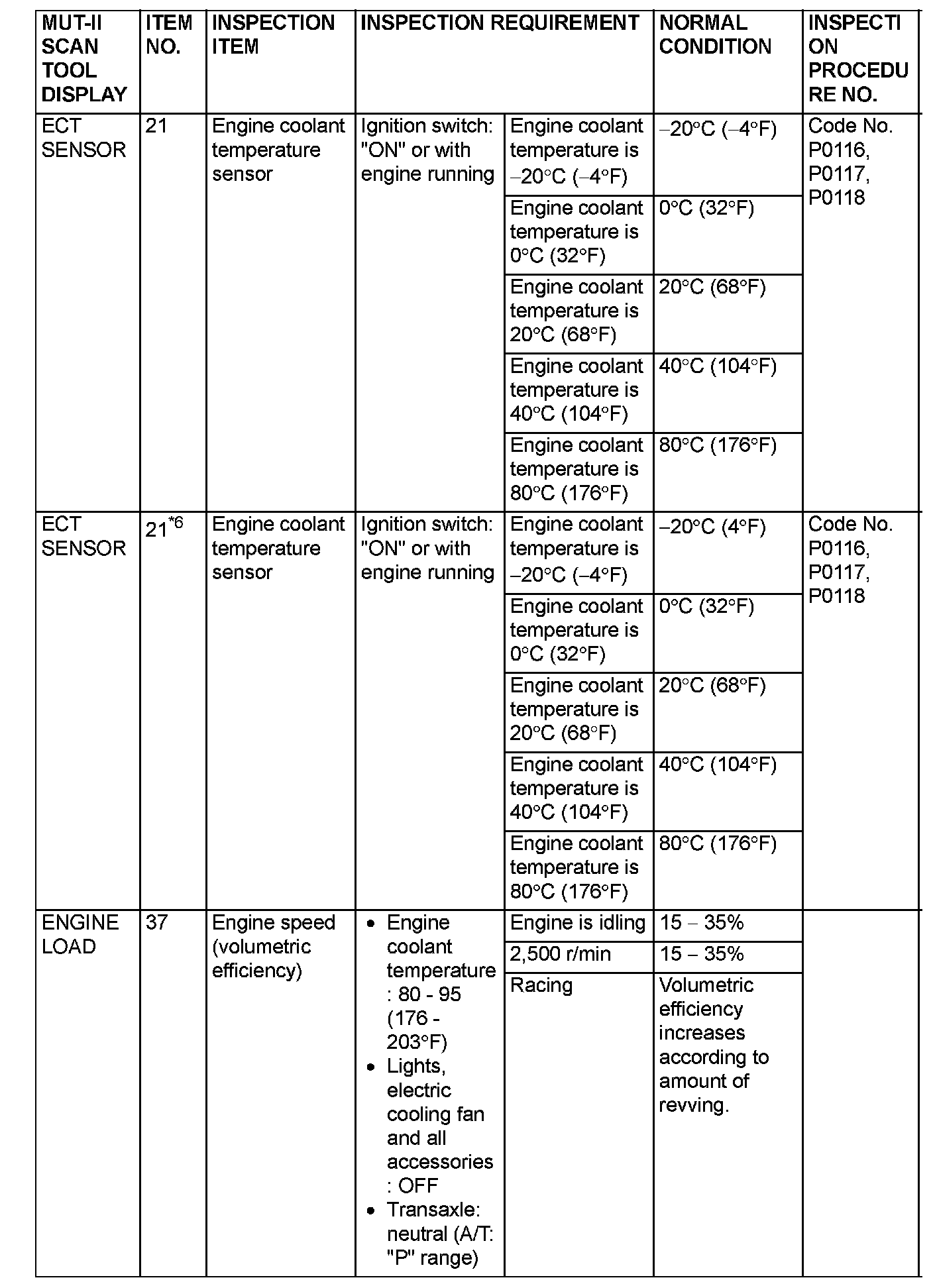

Data List Reference Table - Part 1:

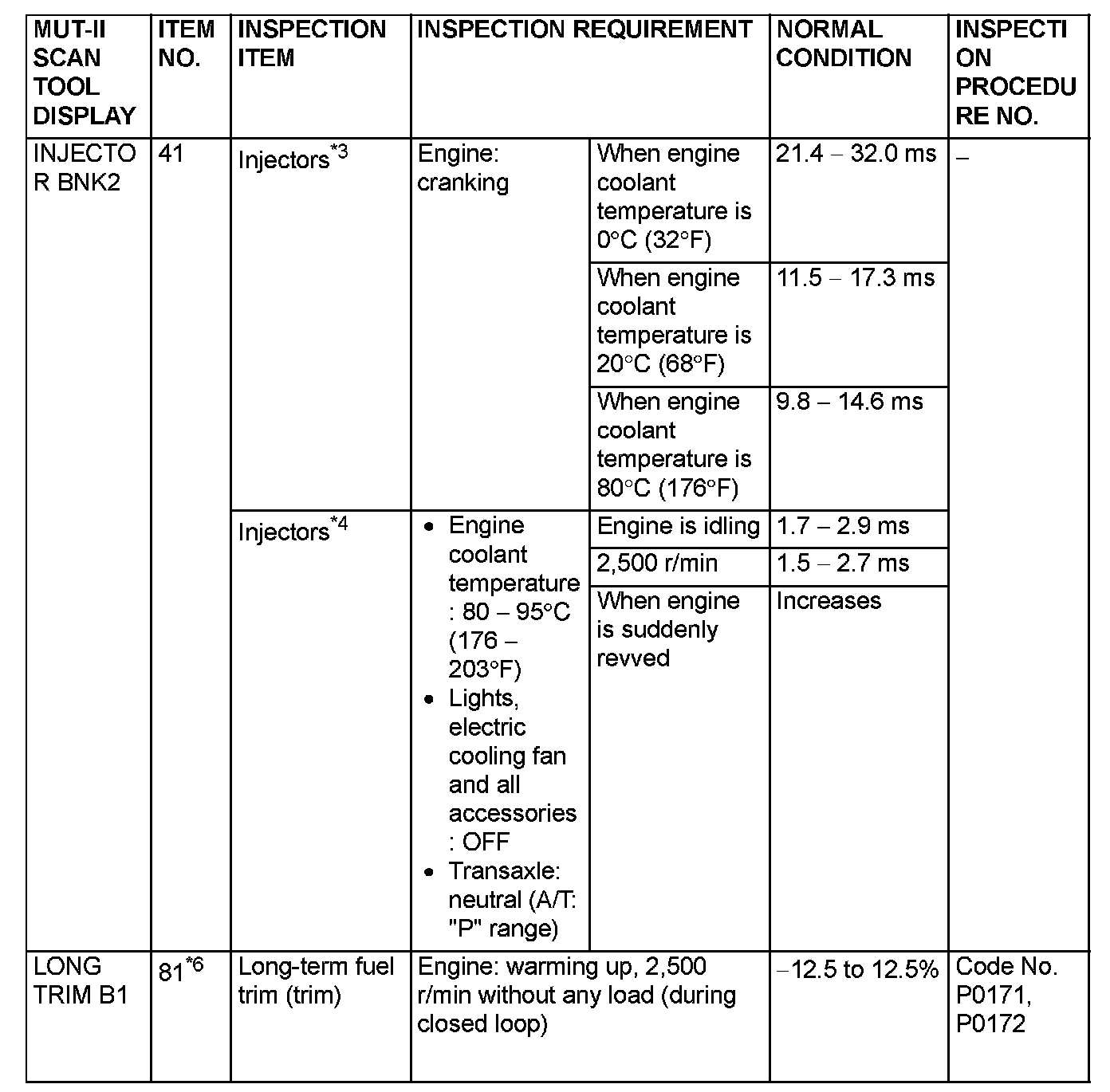

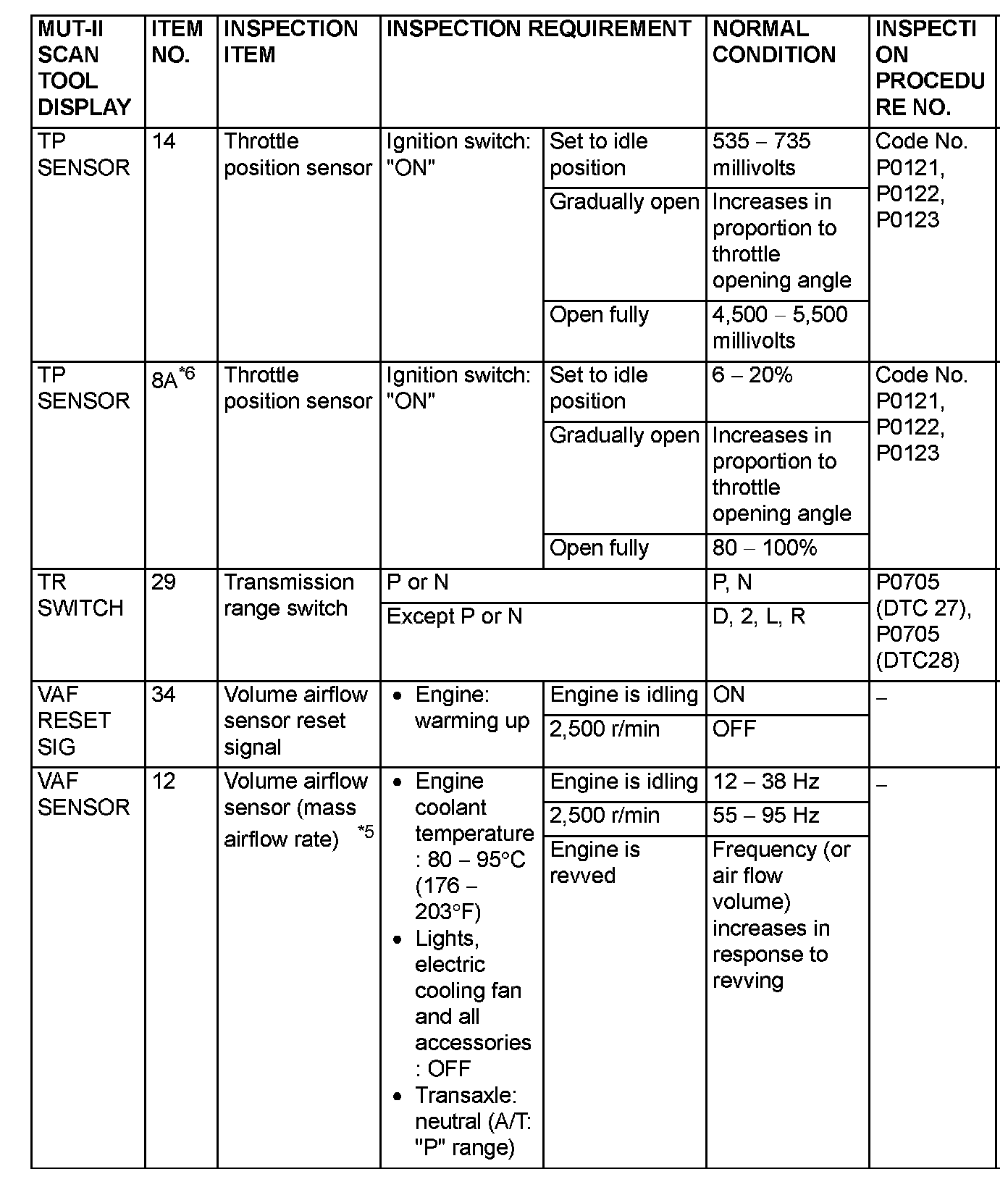

Data List Reference Table - Part 2:

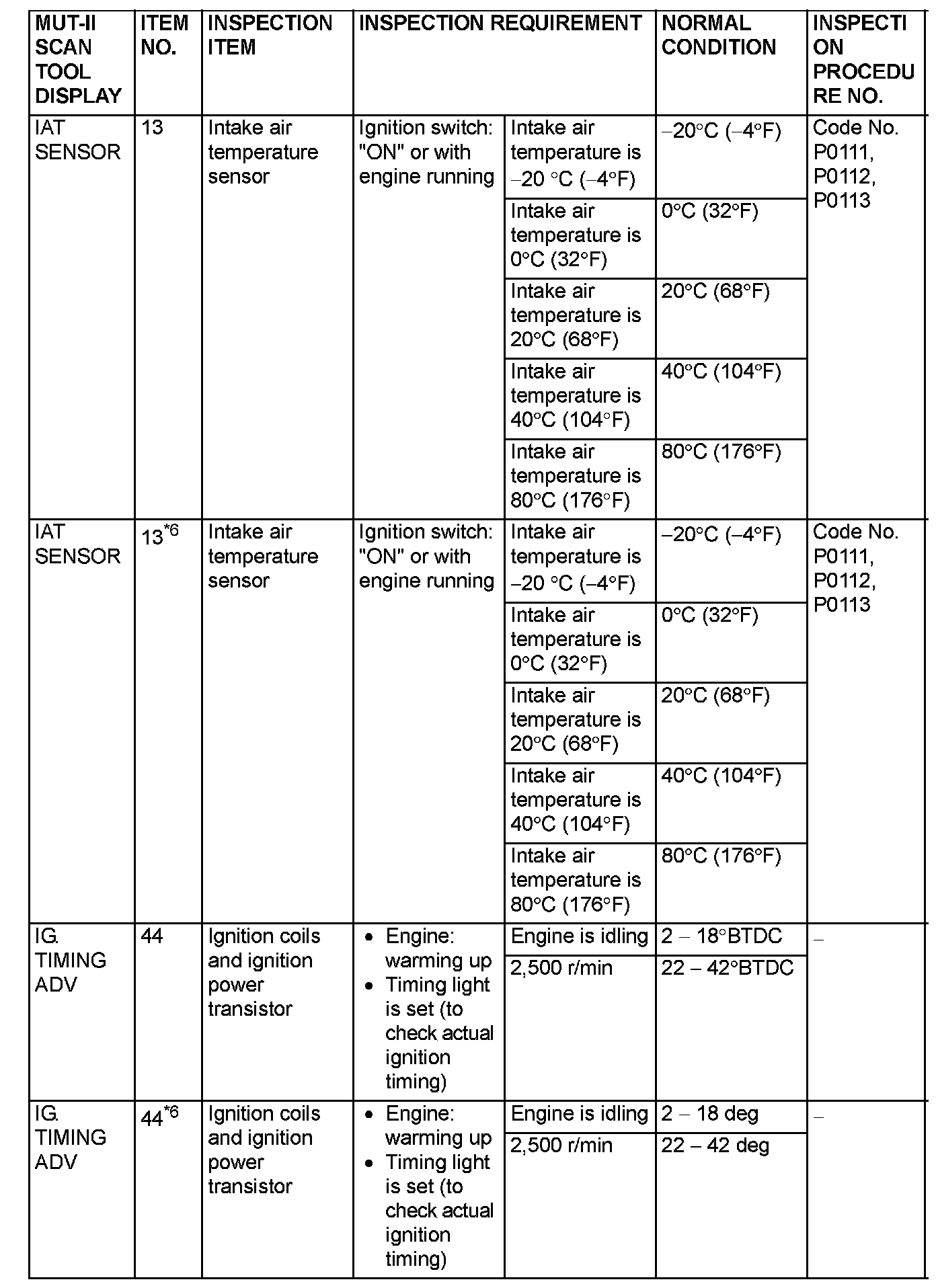

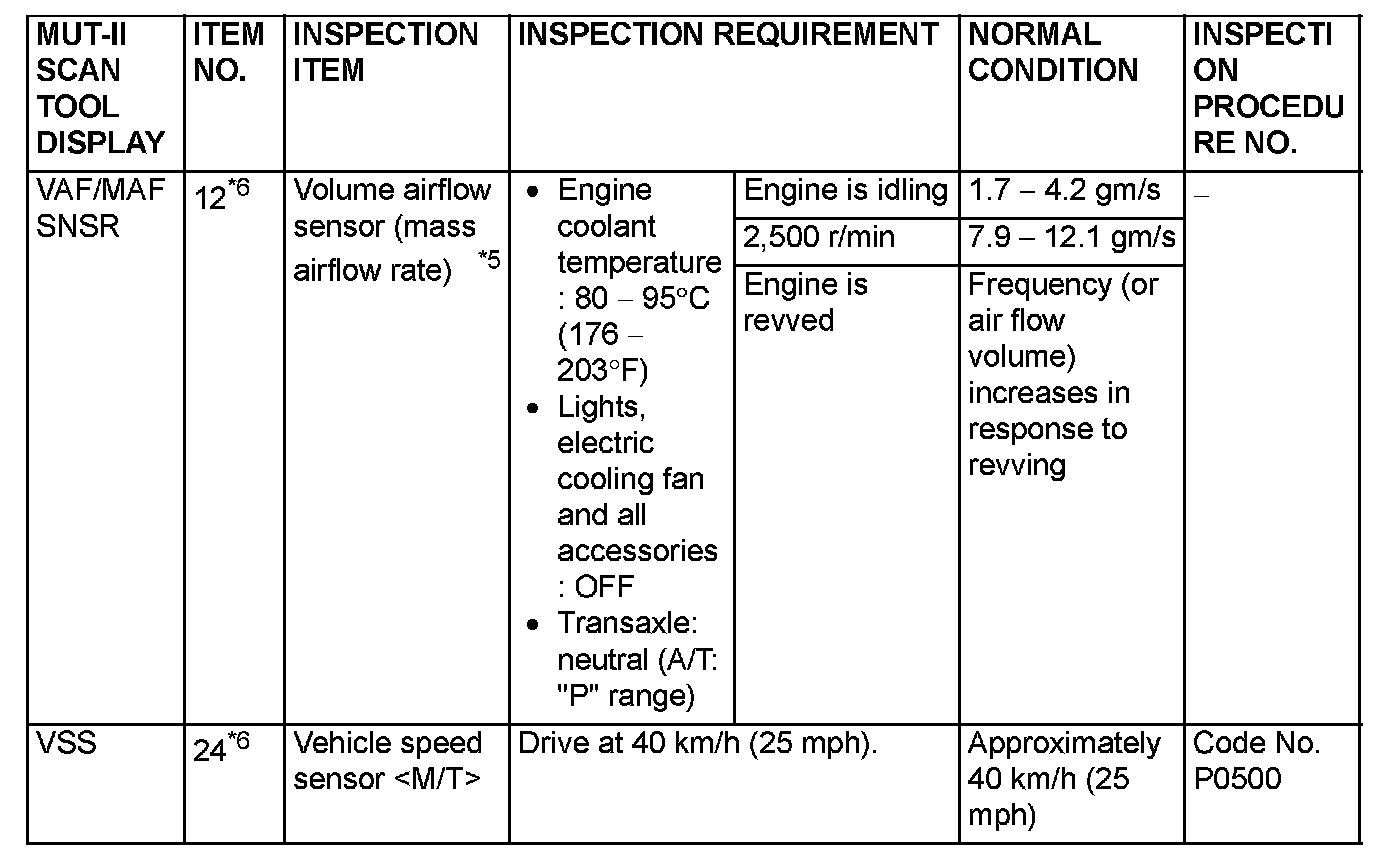

Data List Reference Table - Part 3:

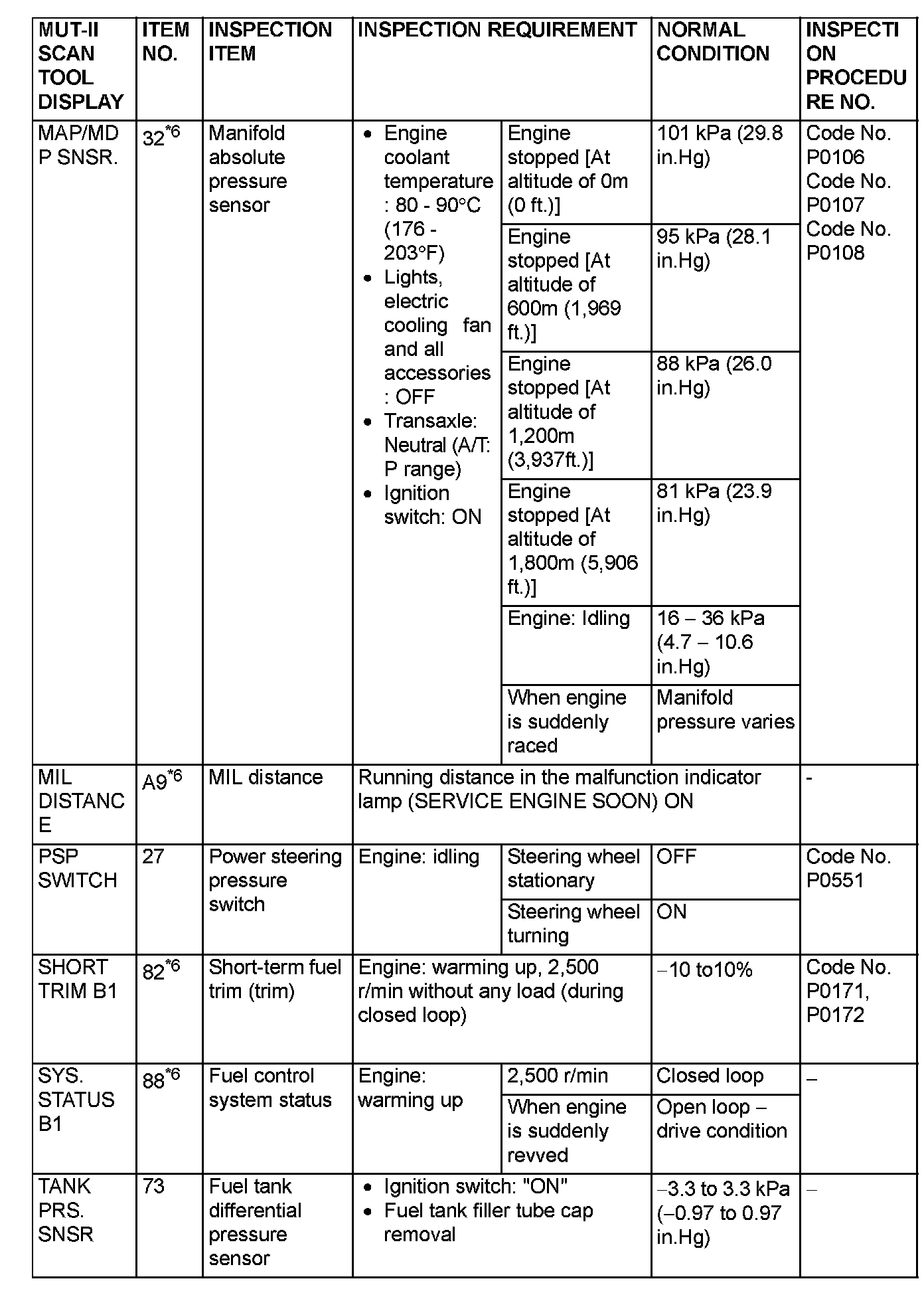

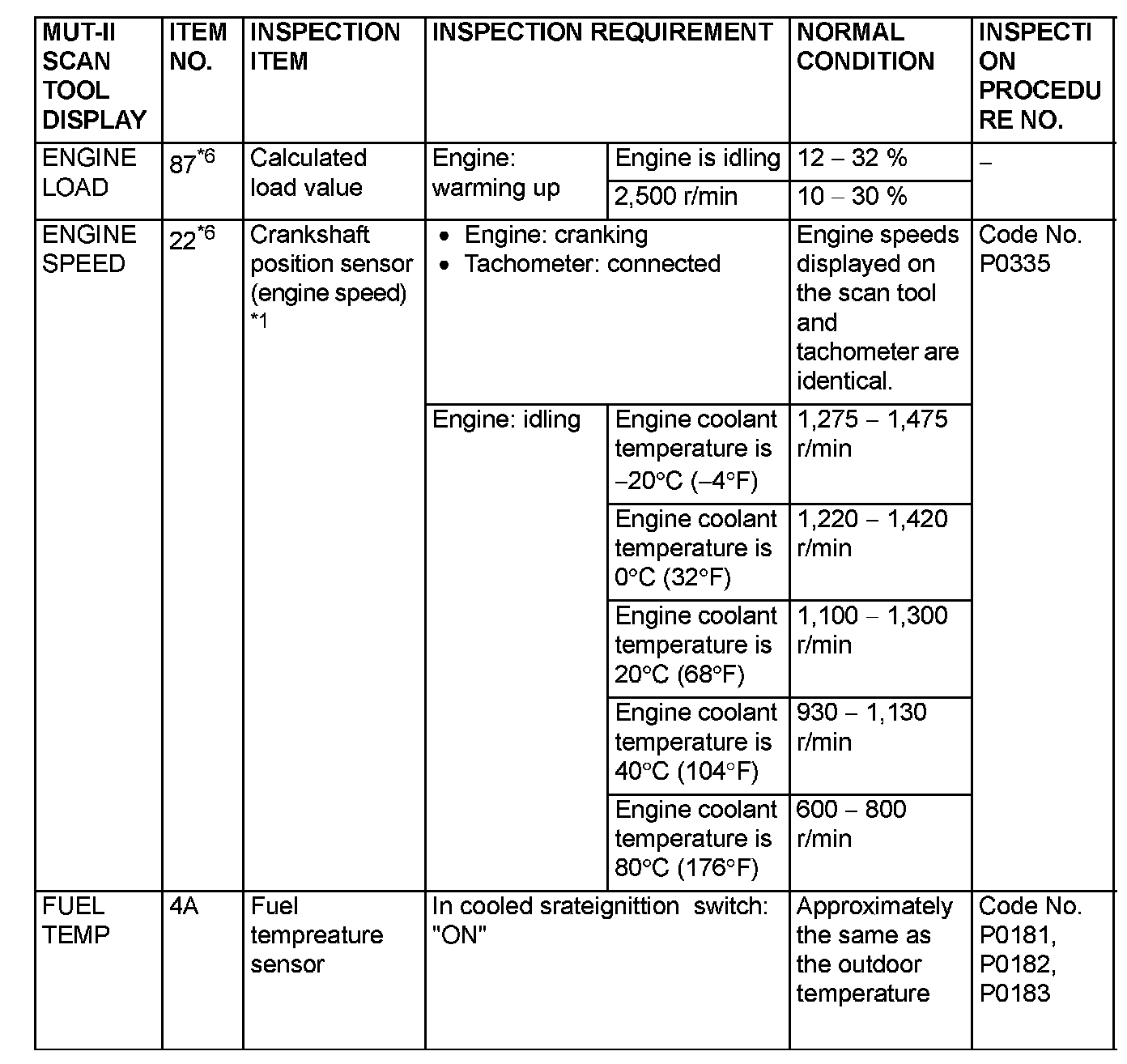

Data List Reference Table - Part 4:

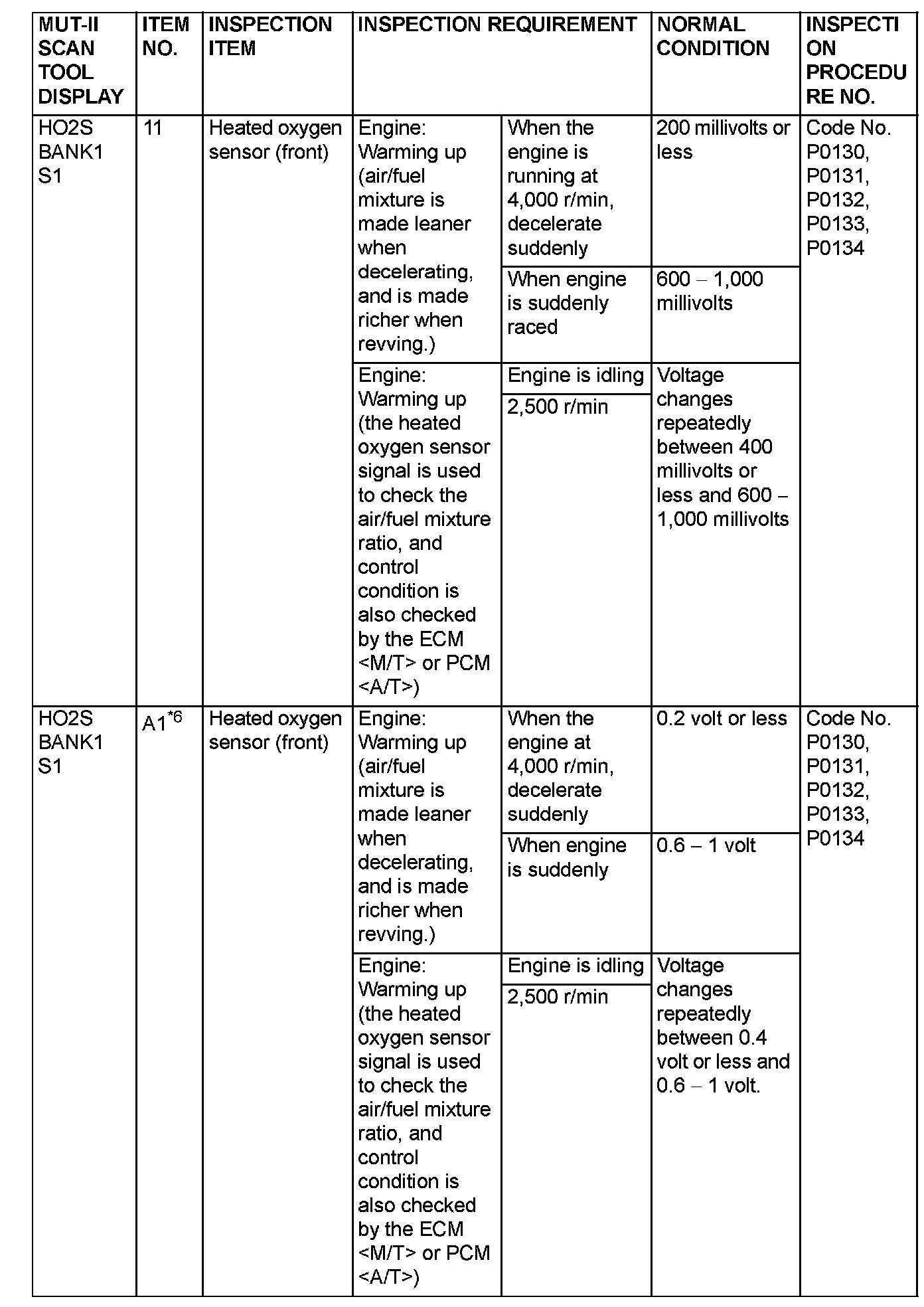

Data List Reference Table - Part 5:

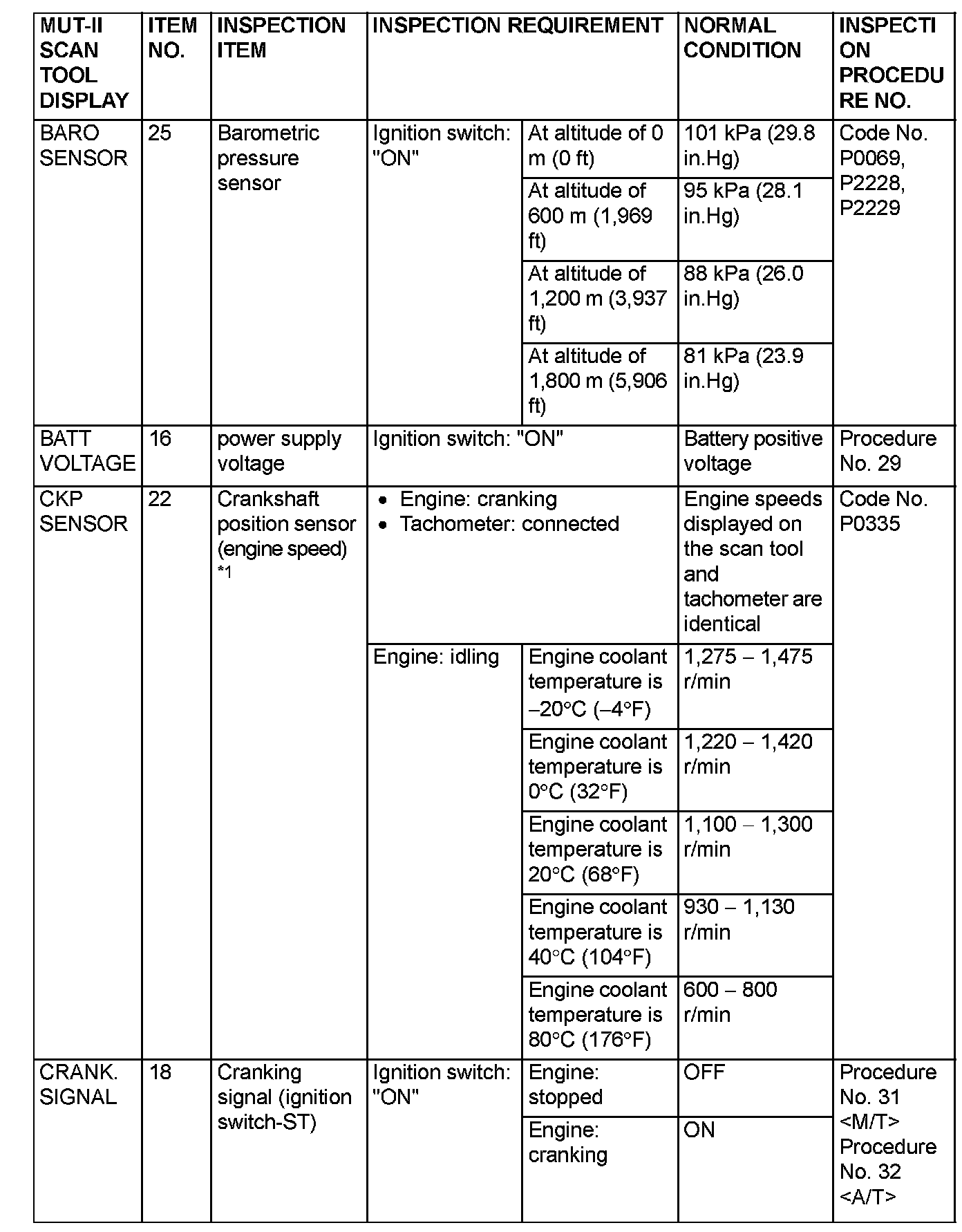

Data List Reference Table - Part 6:

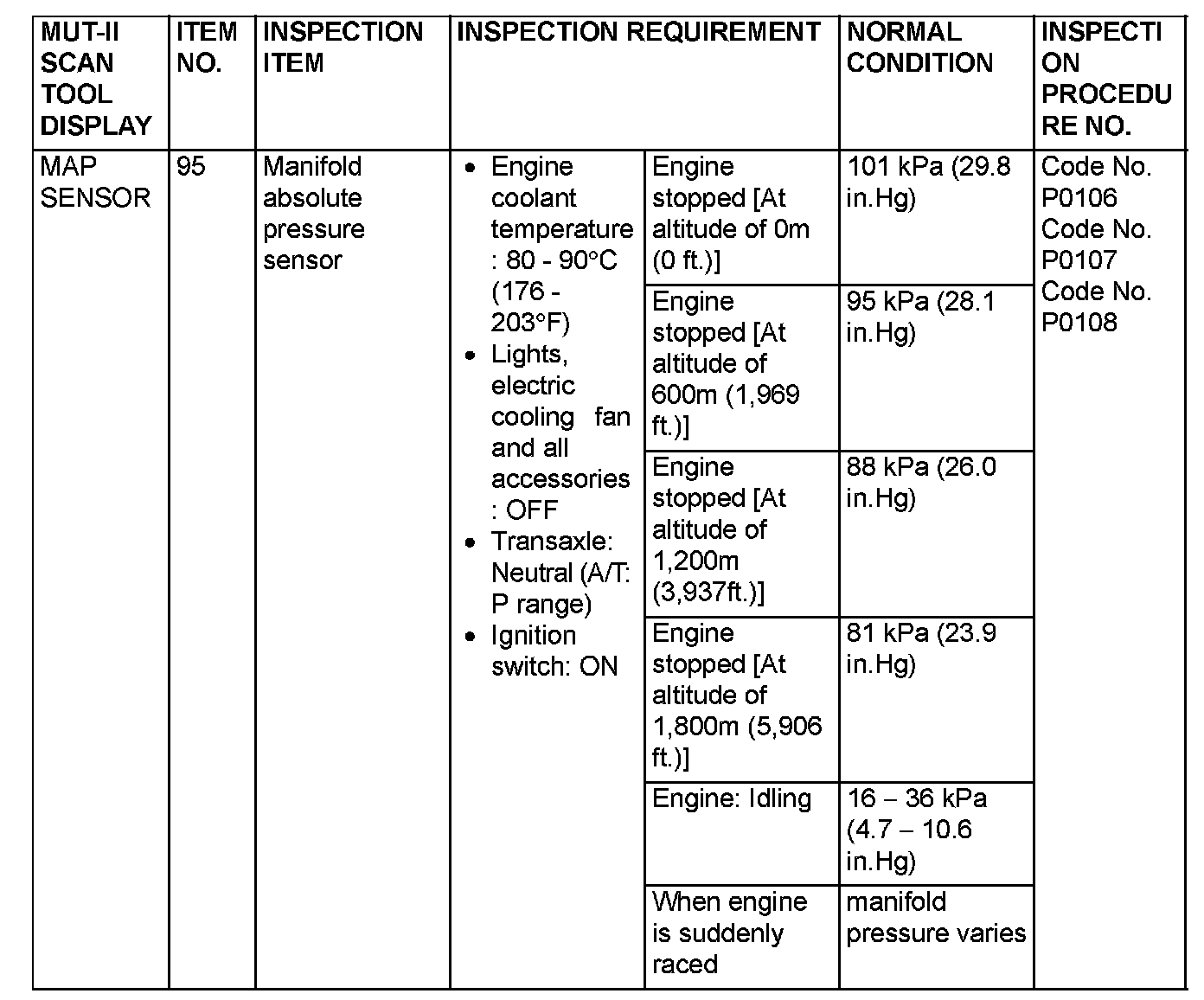

Data List Reference Table - Part 7:

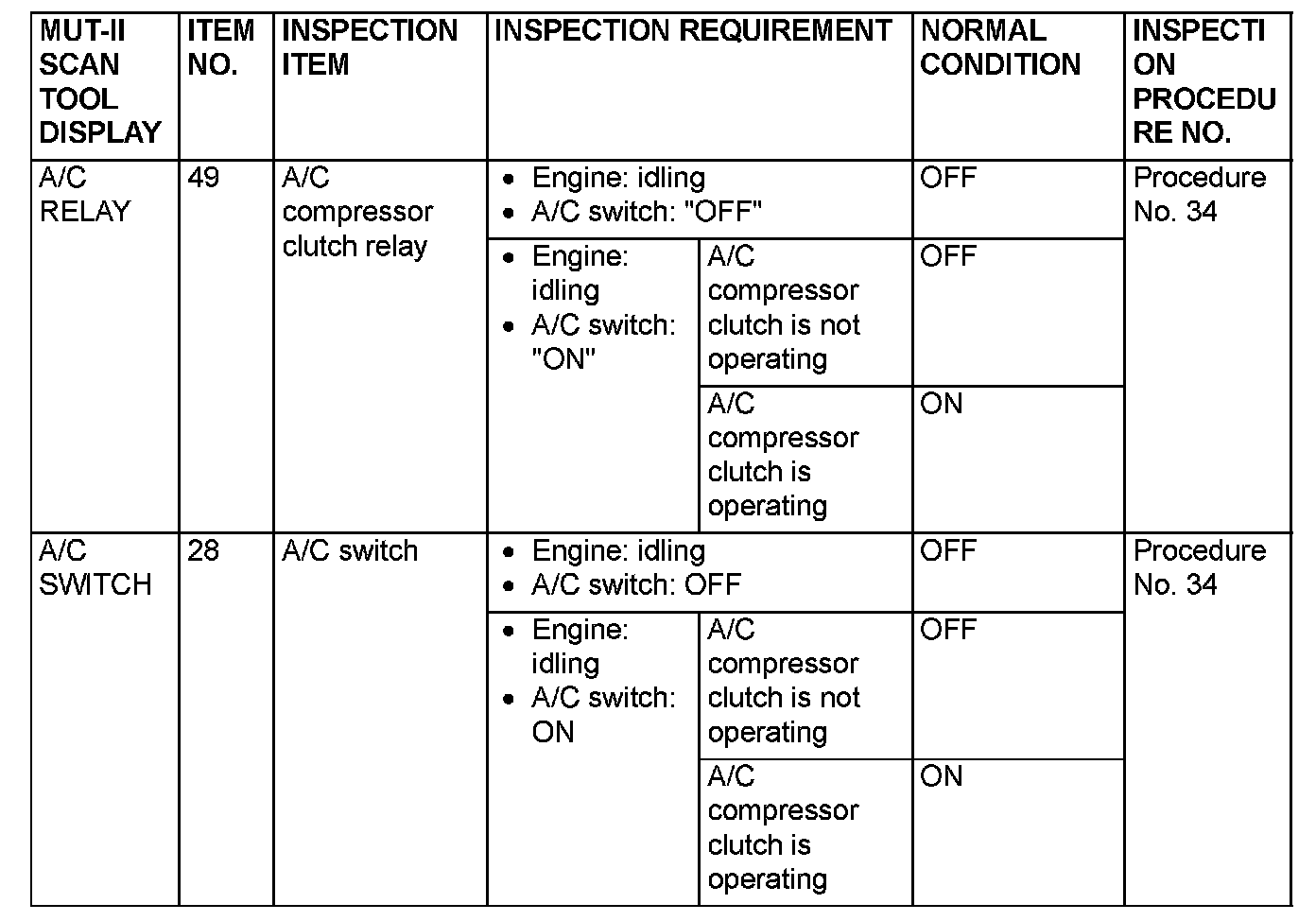

Data List Reference Table - Part 8:

Data List Reference Table - Part 9:

Data List Reference Table - Part 10:

Data List Reference Table - Part 11:

Data List Reference Table - Part 12:

CAUTION:
- When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.
- Driving tests always need two persons: one driver and one observer.

NOTE:
- *1: If the idle speed is lower than the standard value on a very cold engine [approximately -20° C ( -4° F)] even when the IAC motor is fully opened, the air volume limiter built in the throttle body could be defective.
- *2: In a new vehicle [driven approximately 500 km (311 mile) or less], the step of the stepper motor is sometimes 30 steps greater than the standard value. N
- *3: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11 volts.
- *4: In a new vehicle [driven approximately 500 km (311 mile) or less], the injector drive time is sometimes 10% longer than the standard time.
- *5: In a new vehicle [driven approximately 500 km (311 mile) or less], the volume airflow sensor output frequency is sometimes 10% higher than the standard frequency.
- *6: GST items. [Data list items consist of MUT-II items and GST items. GST items can be accessed through the use of a general scan tool (GST). When scan tool MB991502 (MUT-II) is used, MUT-II items appear alphabetically; then, GST items appear alphabetically. The black and white characters of the GST items are inverted from the MUT-II items.]
