B-101 to B-116

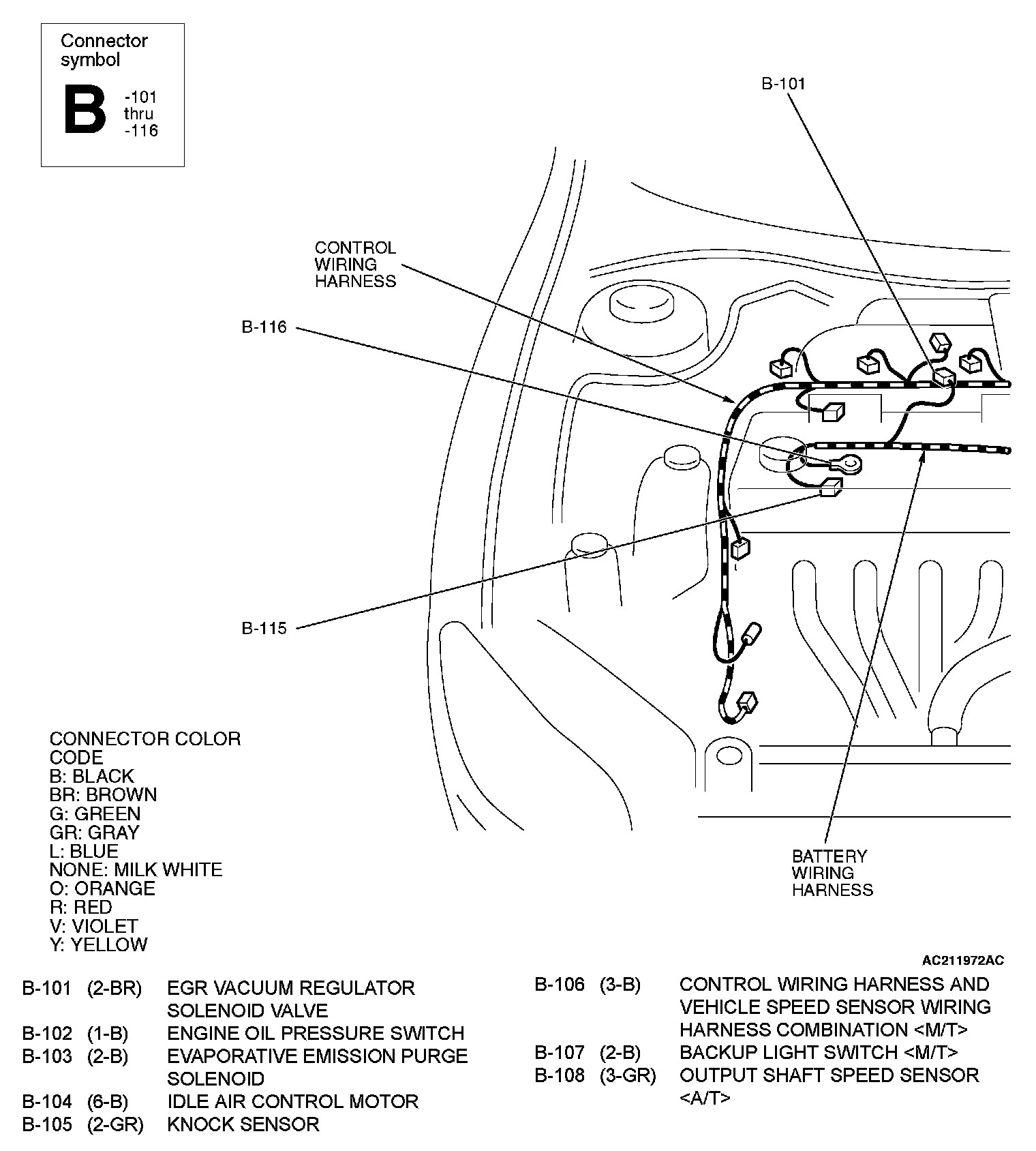

Engine And Transaxle - B Connector [ 101(2-BR) Thru 108(3-GR) ]:

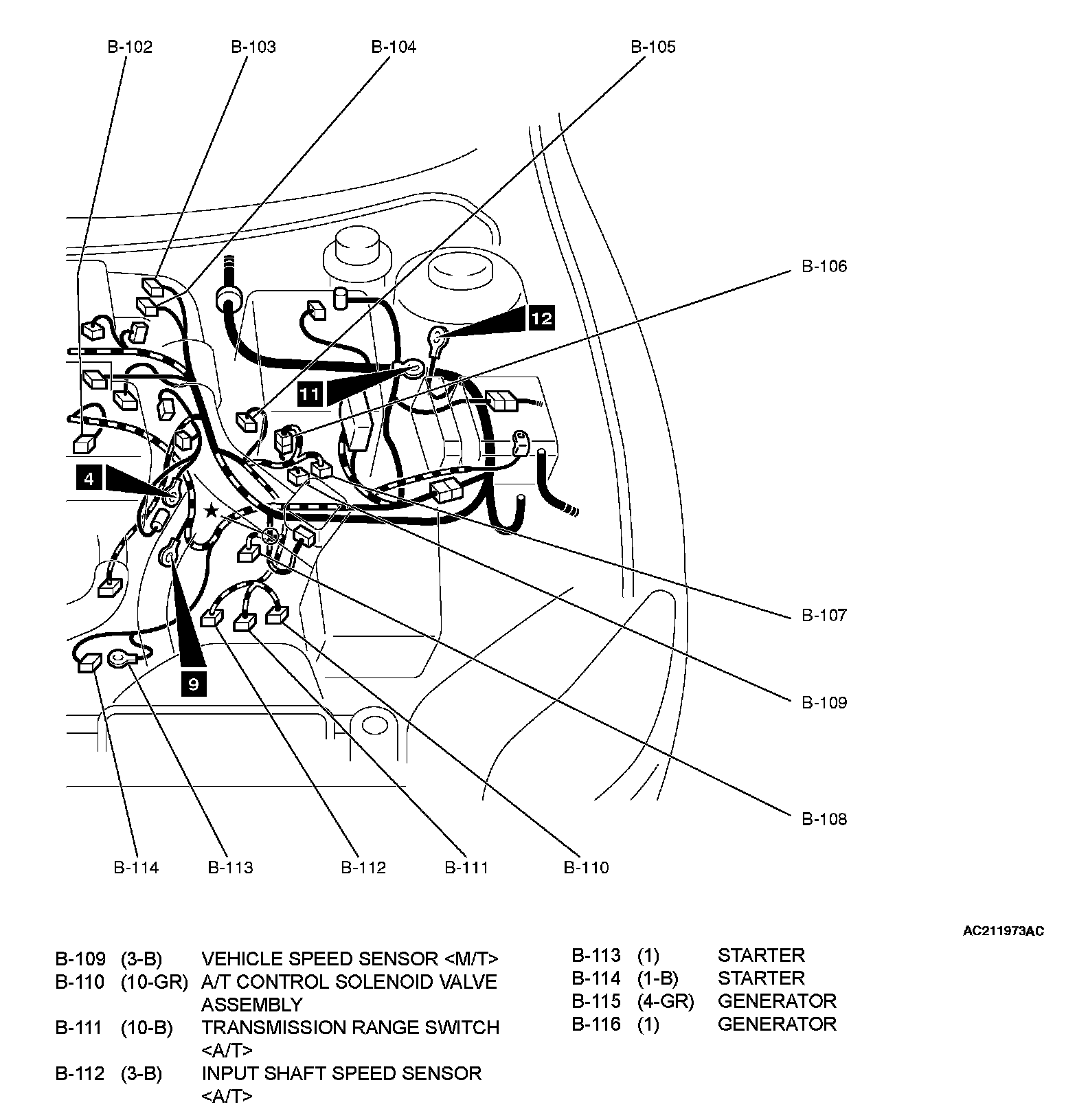

Engine And Transaxle - B Connector [ 109(3-B) Thru 116(1) ]:
