B-01 to B-21

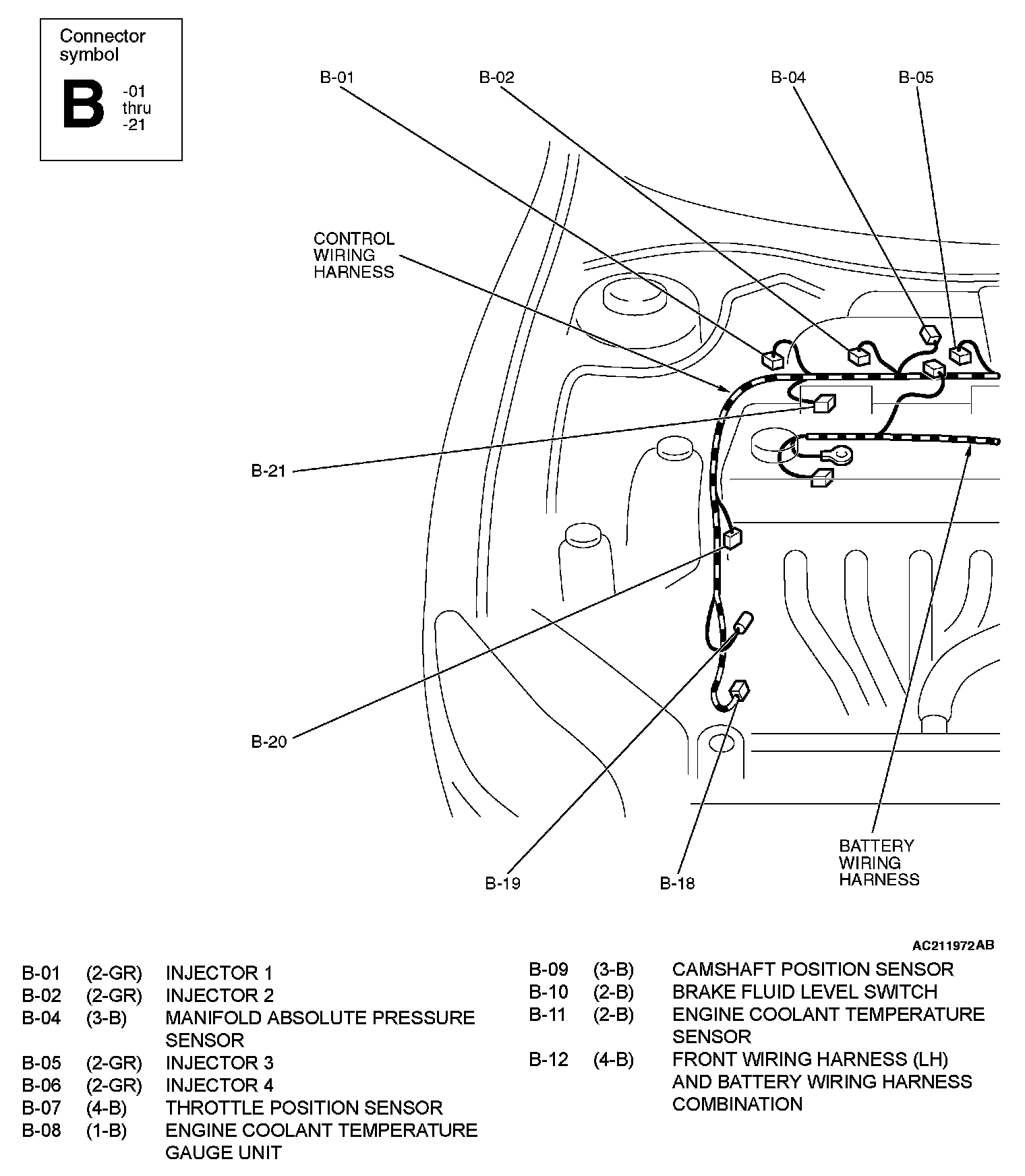

Engine And Transaxle - B Connector [ 01(2-GR) Thru 12(4-B) ]:

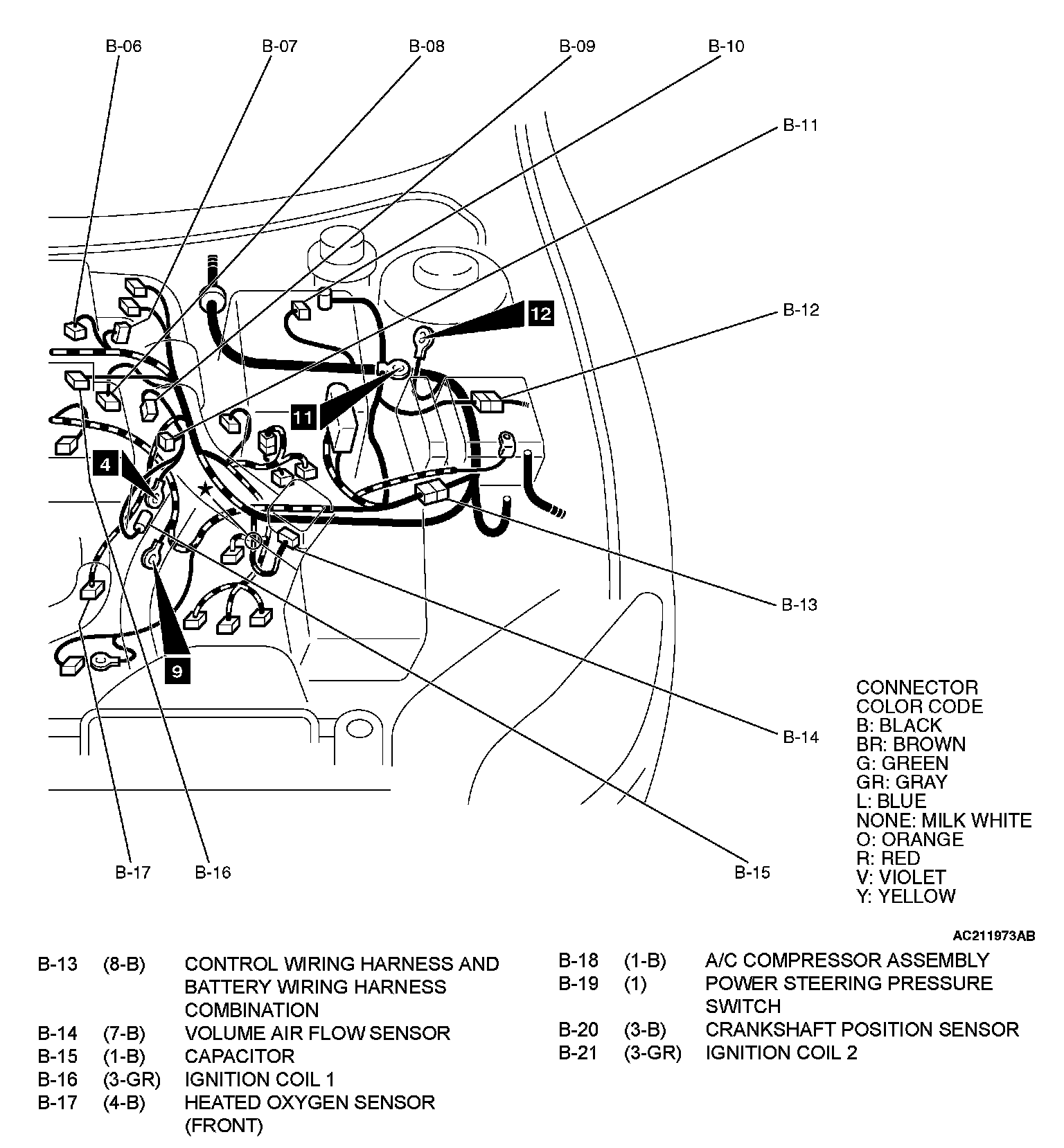

Engine And Transaxle - B Connector [ 13(8-B) Thru 21(3-GR) ]:
