Wiper Blade Replacement

REMOVAL
1. Lift wiper arm to raise blade off glass.

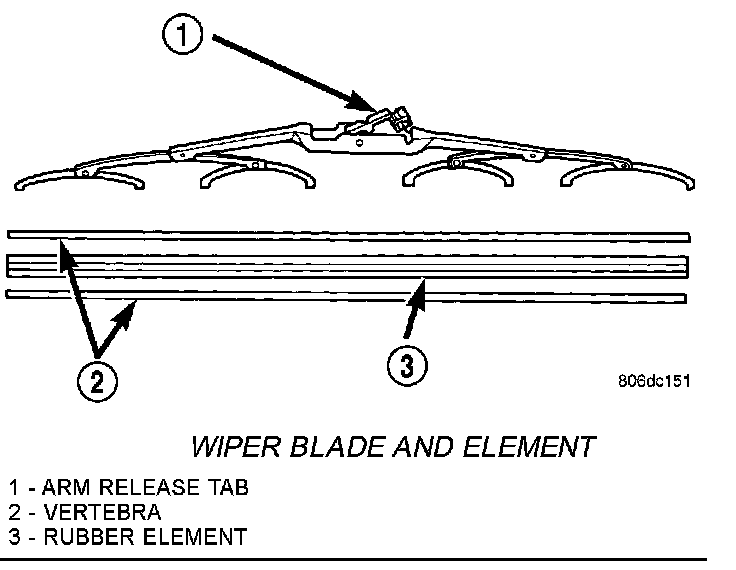

Wiper Blade And Element:

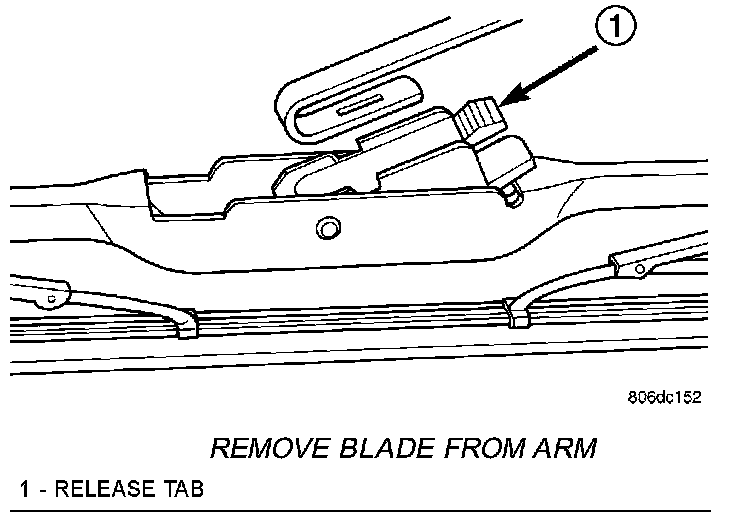

Remove Blade From Arm:

2. Remove blade assembly from arm by pushing release tab under arm tip and slide blade away from arm tip.
3. The driver's side wiper blade has a air foil on it and the air foil points downward.
4. Gently place wiper arm tip on windshield.

INSTALLATION
1. Gently lift the wiper arm tip off windshield.
2. The driver's side wiper blade has a air foil on it and the air foil points downward.
3. Install the blade assembly onto the wiper arm by firmly snapping it onto the arm tip.
4. Lower blade to glass
5. When complete turn ignition switch ON. Turn wiper switch OFF allowing the wiper blades to PARK. Then turn ignition switch OFF.
