Wiper and Washer Systems: Testing and Inspection

DIAGNOSIS AND TESTING

WINDSHIELD WASHERS

Windshield Washer Diagnosis:

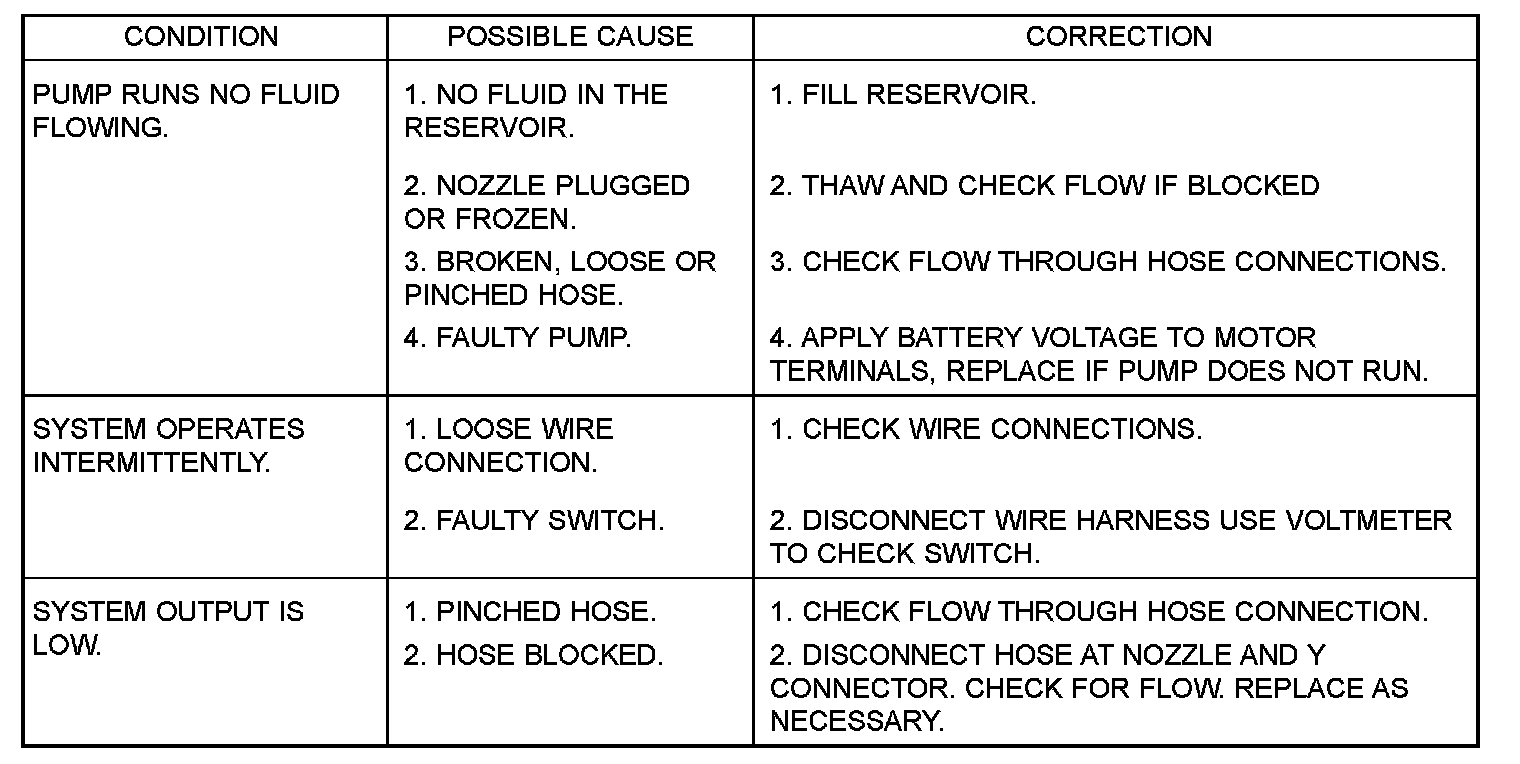

Whenever a windshield washer malfunction occurs, first verify that the windshield washer wire harness is properly connected to all connectors before starting normal diagnosis and repair procedures. Refer to the WINDSHIELD WASHER DIAGNOSIS table.

This System is controlled by the Body Control Module. Refer to Body Control Module/System Testing for additional testing. Testing and Inspection
