Mechanical Specifications

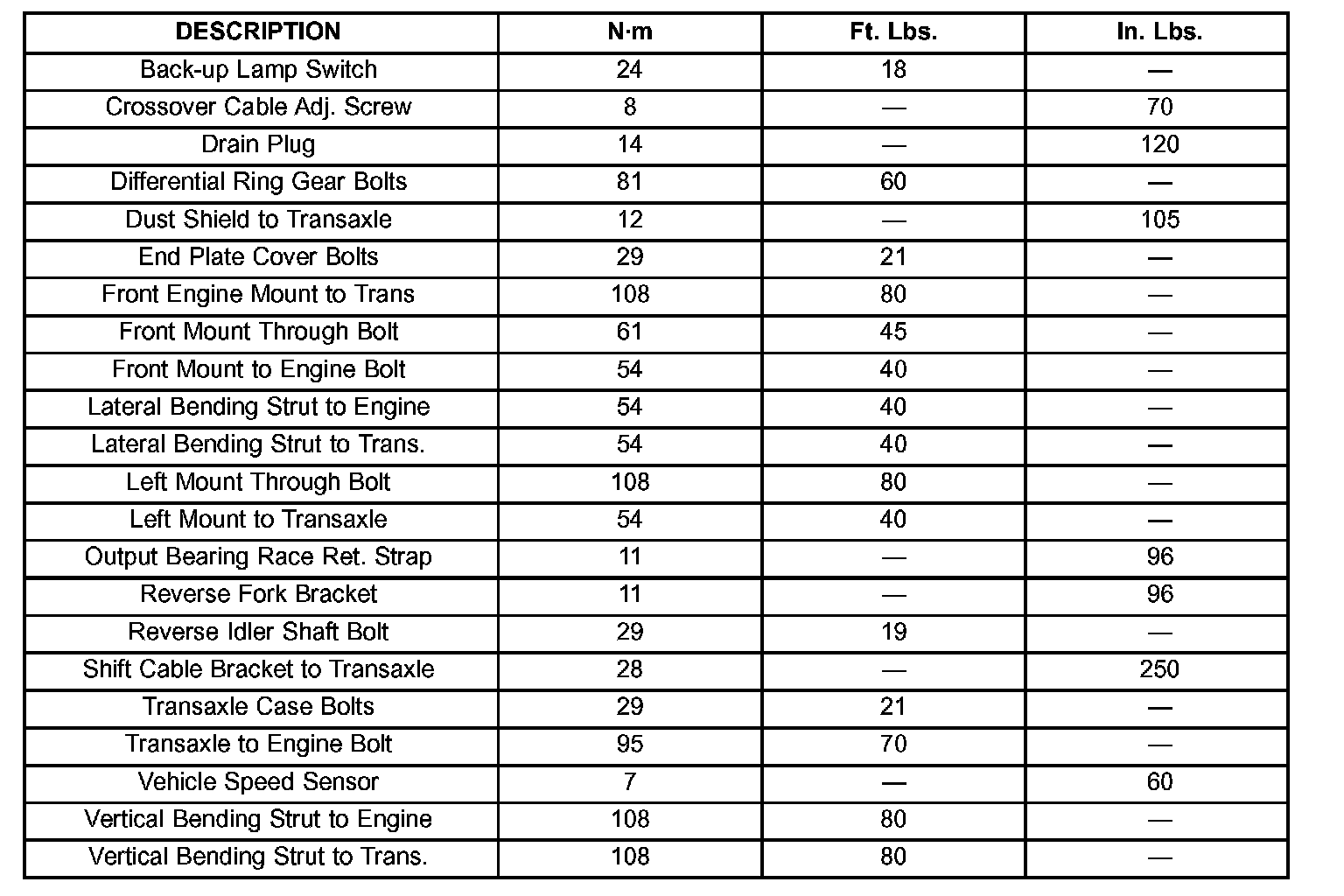

TORQUE SPECIFICATIONS
Bolts that have thread sealer or torque lock patches should not be reused. Always install new bolts in these applications.





TORQUE SPECIFICATIONS
