Installation

INPUT BEARING AND SLEEVE
INSTALLATION
1. Apply coating of Loctite sealant on bearing outer diameter. Position sleeve and bearing assembly at input bearing bore.





2. Install tool #C-4680-1 over input bearing (Fig. 89).

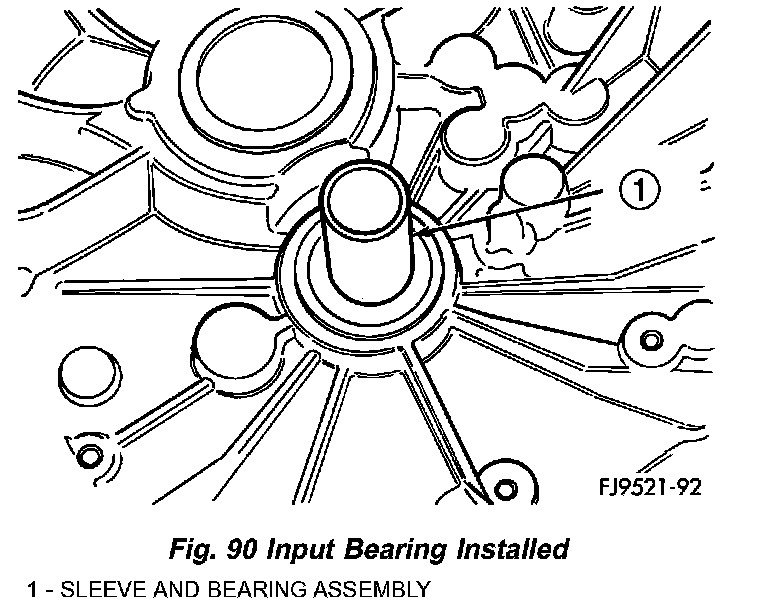

3. Using a suitable spacer tool and shop press, install input bearing into bore until it is fully seated (Fig. 90).
