Removal

DIFFERENTIAL BEARING CUPS
REMOVAL
1. Remove differential assembly from gear case.

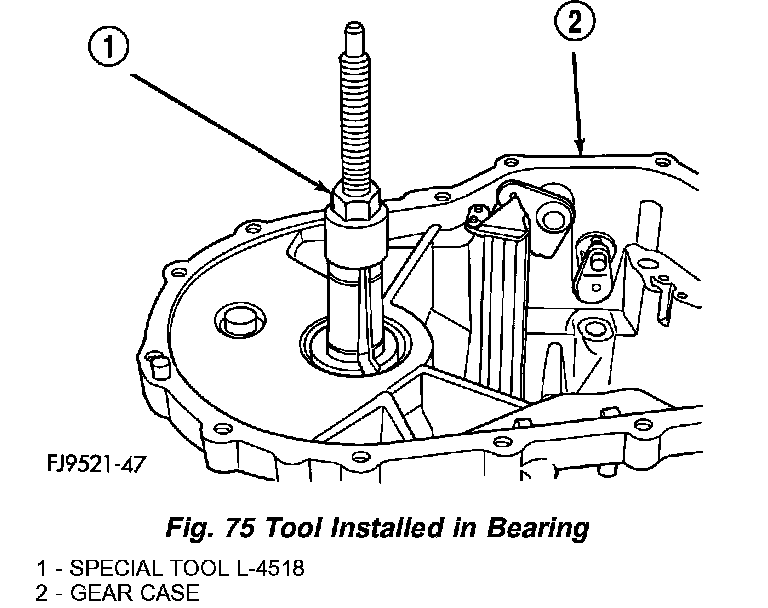

2. Install Miller tool #L-4518 into the differential bearing cup (Fig. 75).

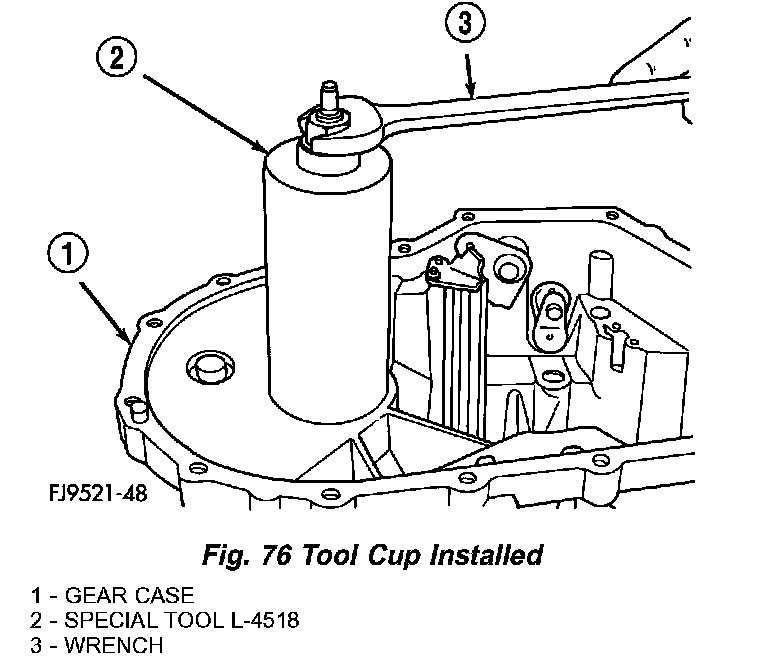

3. Install the tool cup over the tool (Fig. 76).
4. Tighten the tool until the race is removed from the case.
