Clutch System
DIAGNOSIS AND TESTING - CLUTCH SYSTEMClutch problem diagnosis will generally require a road test to determine the type of fault. Component inspection will then determine the problem after road testing.
Drive the vehicle at normal speeds during road test. Shift the transaxle through all gear ranges and observe clutch action. If chatter, grab, slip, or improper release is experienced, remove and inspect the clutch components. If the problem is noise or hard shifting, further diagnosis may be needed. The transaxle or other driveline components may actually be at fault.

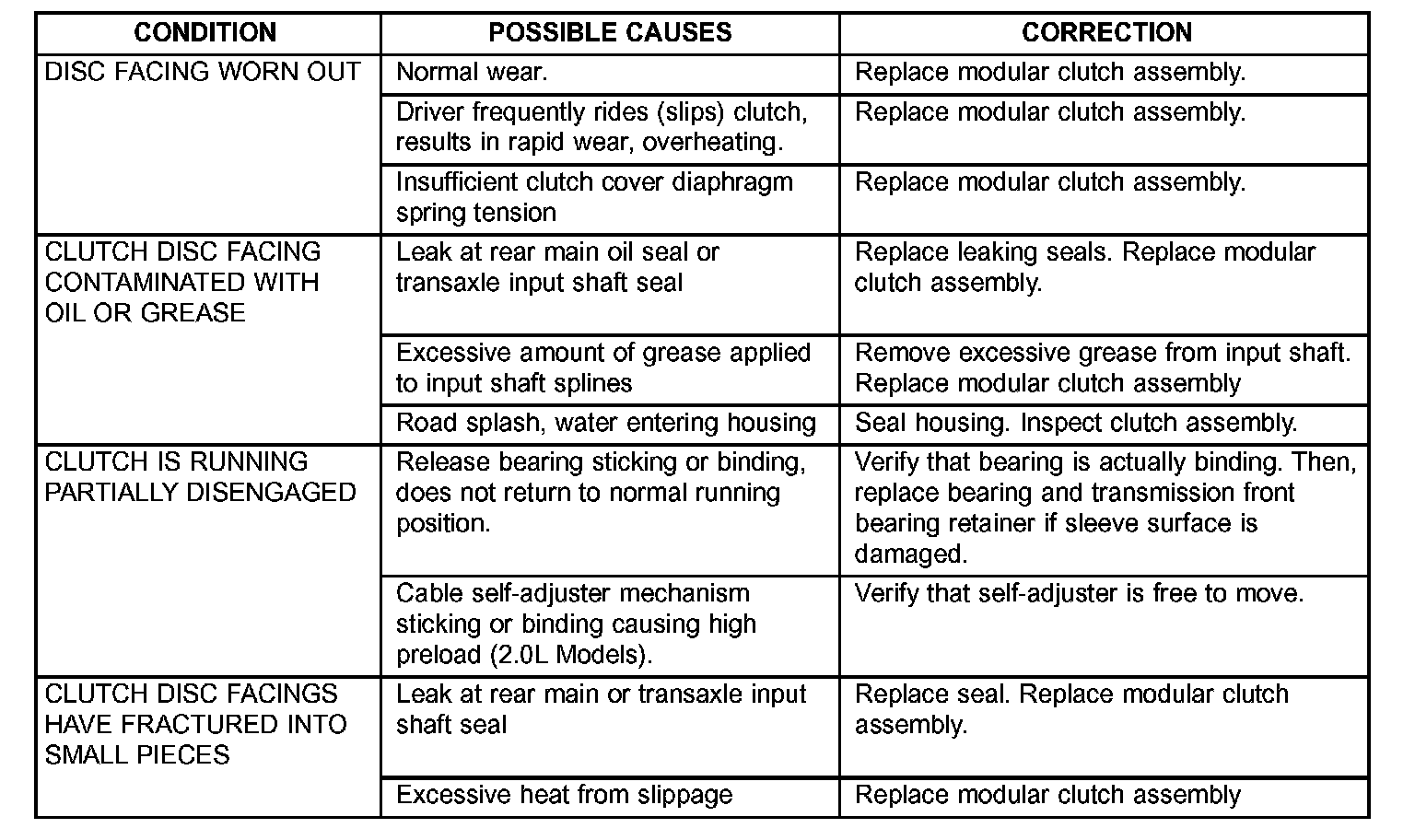

SERVICE DIAGNOSIS - CLUTCH GRAB/CHATTER

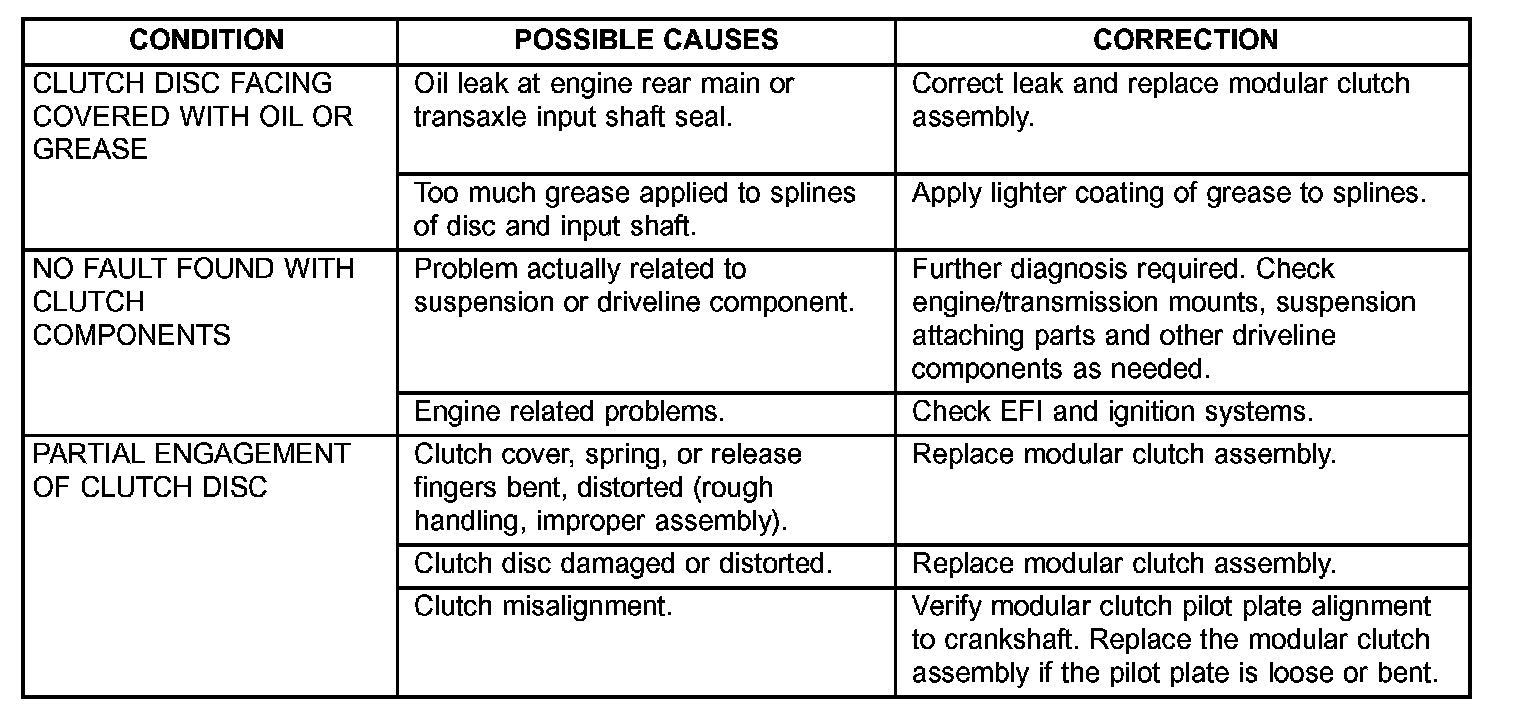

SERVICE DIAGNOSIS - CLUTCH SLIPS

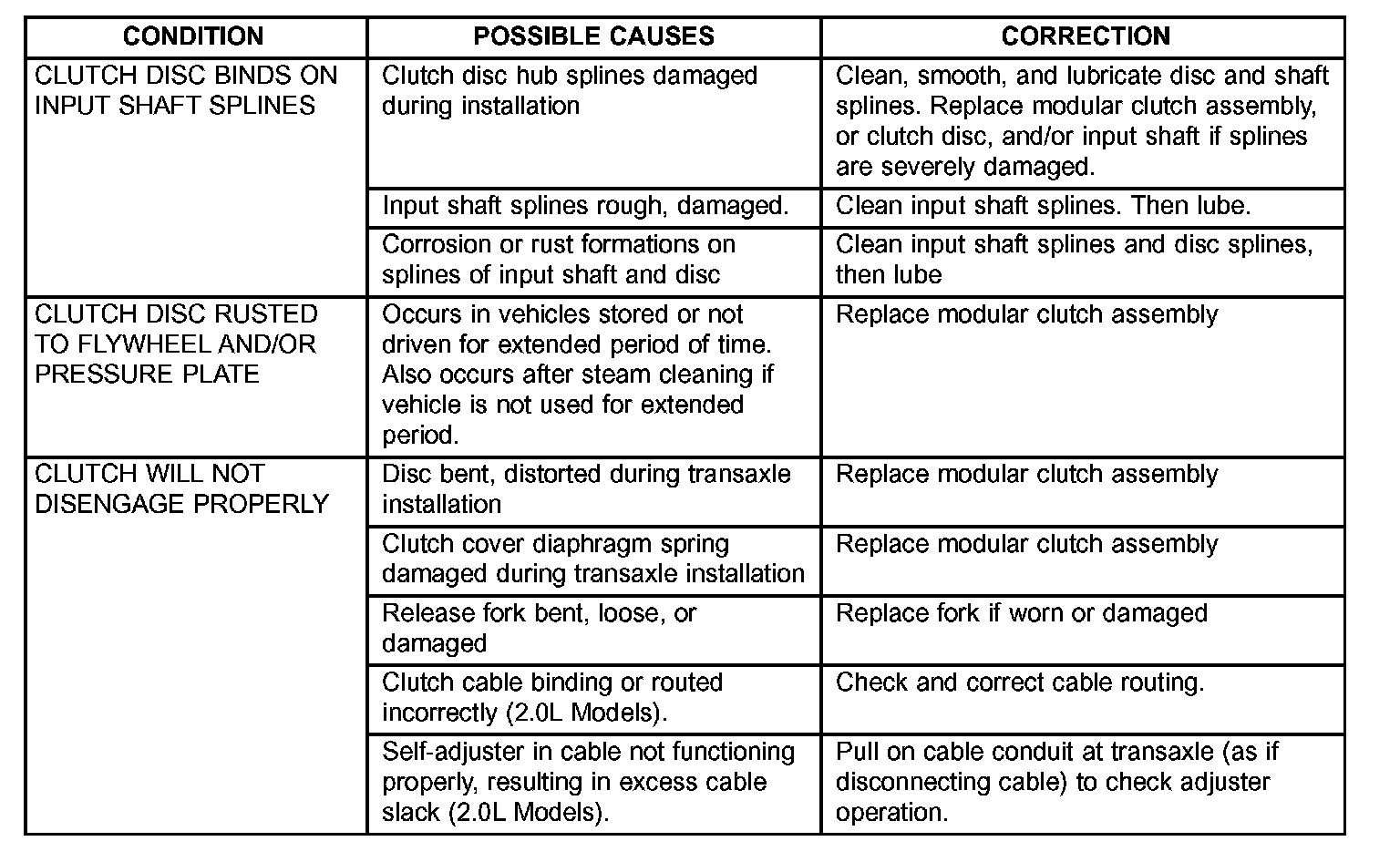

SERVICE DIAGNOSIS - IMPROPER CLUTCH RELEASE

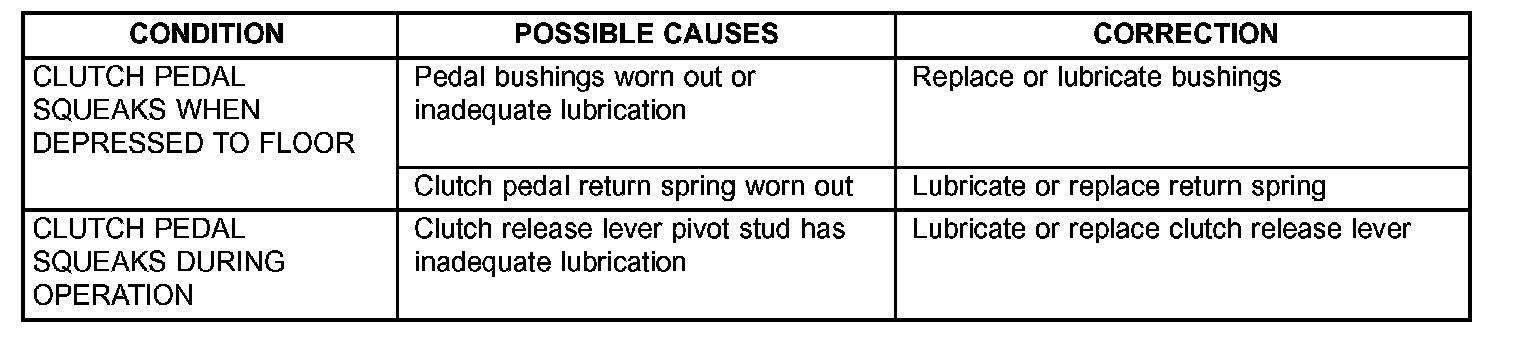

SERVICE DIAGNOSIS - CLUTCH PEDAL NOISE
