Power Steering Pump Pulley

DISASSEMBLY- PUMP (PULLEY)
1. Remove power steering pump from engine.

CAUTION: Do not hammer on power steering pump pulley or shaft to remove power steering pump pulley. This will damage the pulley and the power steering pump.

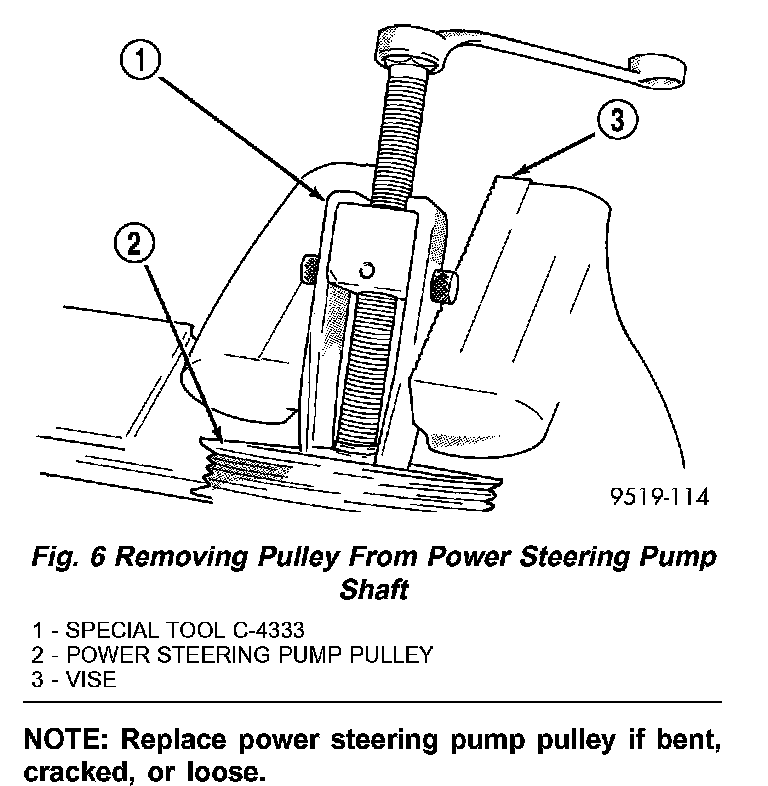

2. Mount Puller, Special Tool C-4333, on power steering pump pulley. Mount puller (with power steering pump) in a vise (Fig. 6). This will keep shaft of power steering pump from turning while removing pulley.
3. Tighten puller and remove pulley from shaft of power steering pump.

NOTE: Replace power steering pump pulley if bent, cracked, or loose.

ASSEMBLY- PUMP (PULLEY)

CAUTION: Do not hammer on power steering pump pulley or shaft to install power steering pump pulley. This will damage the pulley and the power steering pump.





1. Place power steering pump pulley squarely on end of power steering pump shaft (Fig. 7).





2. Place Installation Spacer (Fig. 8), Special Tool 6936, on top of the power steering pump pulley.

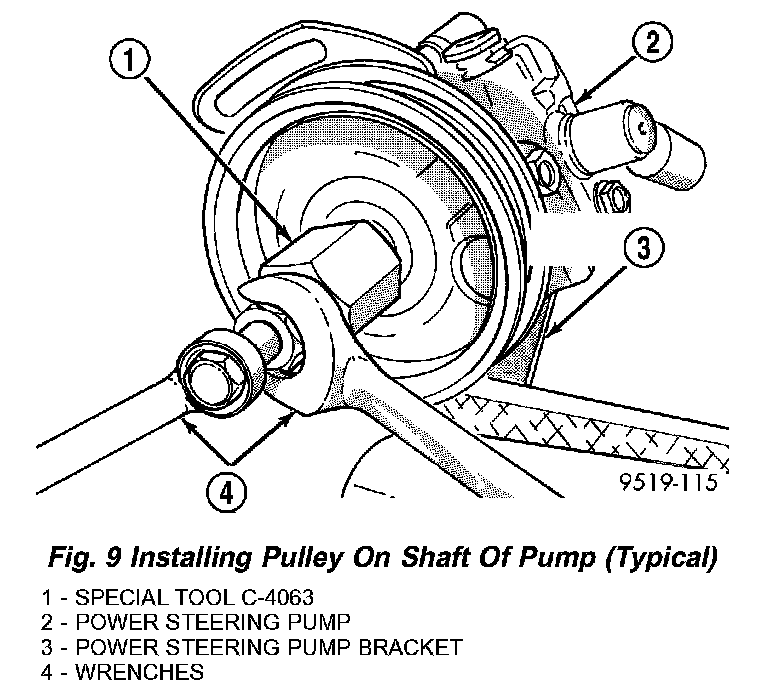

3. Mount Installer, Special Tool C-4063, in internal threads of the power steering pump shaft and against Special Tool 6936 on power steering pump pulley (Fig. 9).
4. Ensuring that special tool and pulley remain aligned with pump shaft, force pulley onto power steering pump shaft until Special Tool 6936 is against the end of the power steering pump shaft. When Special Tool 6936 is against the shaft of the power steering pump, Special Tool C-4063 will no longer be able to be turned.
5. Remove Installer from power steering pump.
6. Install power steering pump and mounting bracket back on engine.
