Crankshaft Gear/Sprocket

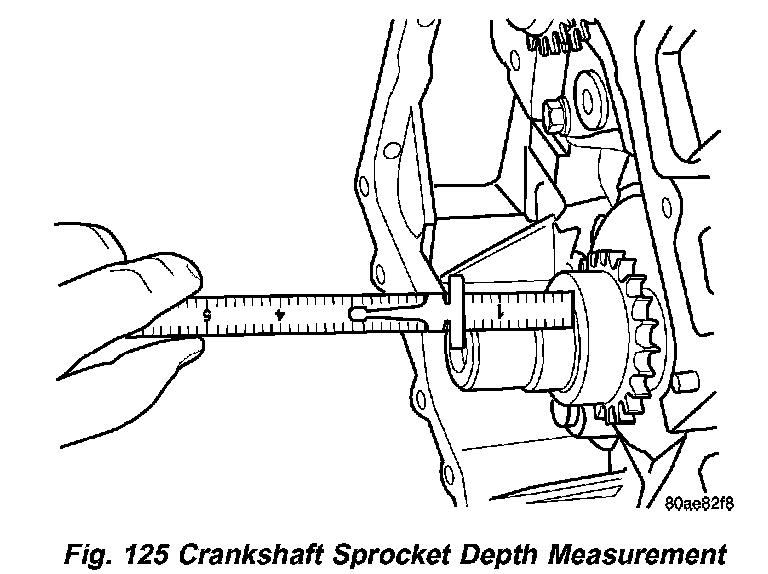

Verify that crankshaft sprocket is installed to proper depth by measuring from sprocket outer face to end of crankshaft (Fig. 125). Measurement should read: 39.05 ± 0.50 mm (1.5374 ± 0.020 inch).
Verify that crankshaft sprocket is installed to proper depth by measuring from sprocket outer face to end of crankshaft (Fig. 125). Measurement should read: 39.05 ± 0.50 mm (1.5374 ± 0.020 inch).
