Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL
1. Remove the negative battery cable.

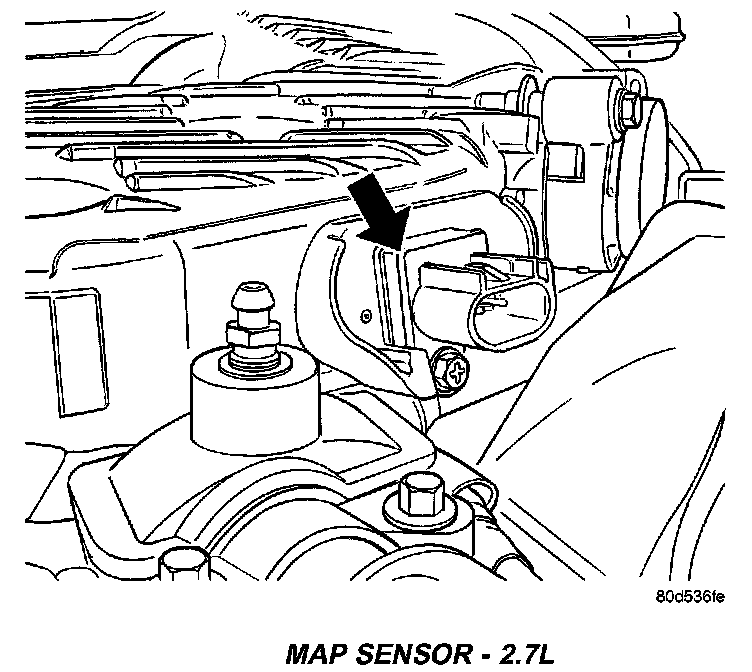

Map Sensor - 2.7L:

2. Disconnect the electrical connector from the MAP sensor.
3. Remove bolt from sensor.
4. Remove sensor.

INSTALLATION

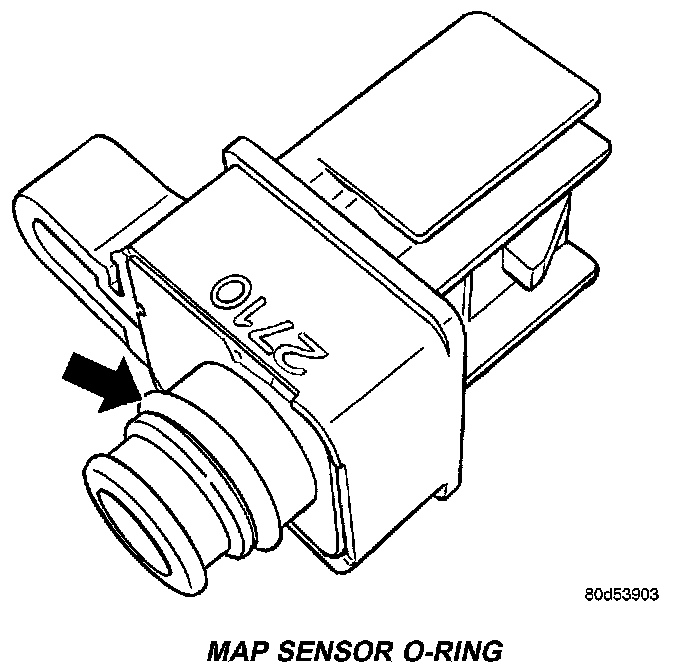

Map Sensor O-ring:

1. The sensor mounts onto intake manifold plenum. Tighten screws to 4.5 Nm (40 in. lbs.) torque.
2. Attach electrical connector to sensor.
3. Install the negative battery cable.
