Home >> Chrysler >> 2005 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Specifications

Evaporative Emissions System: Specifications

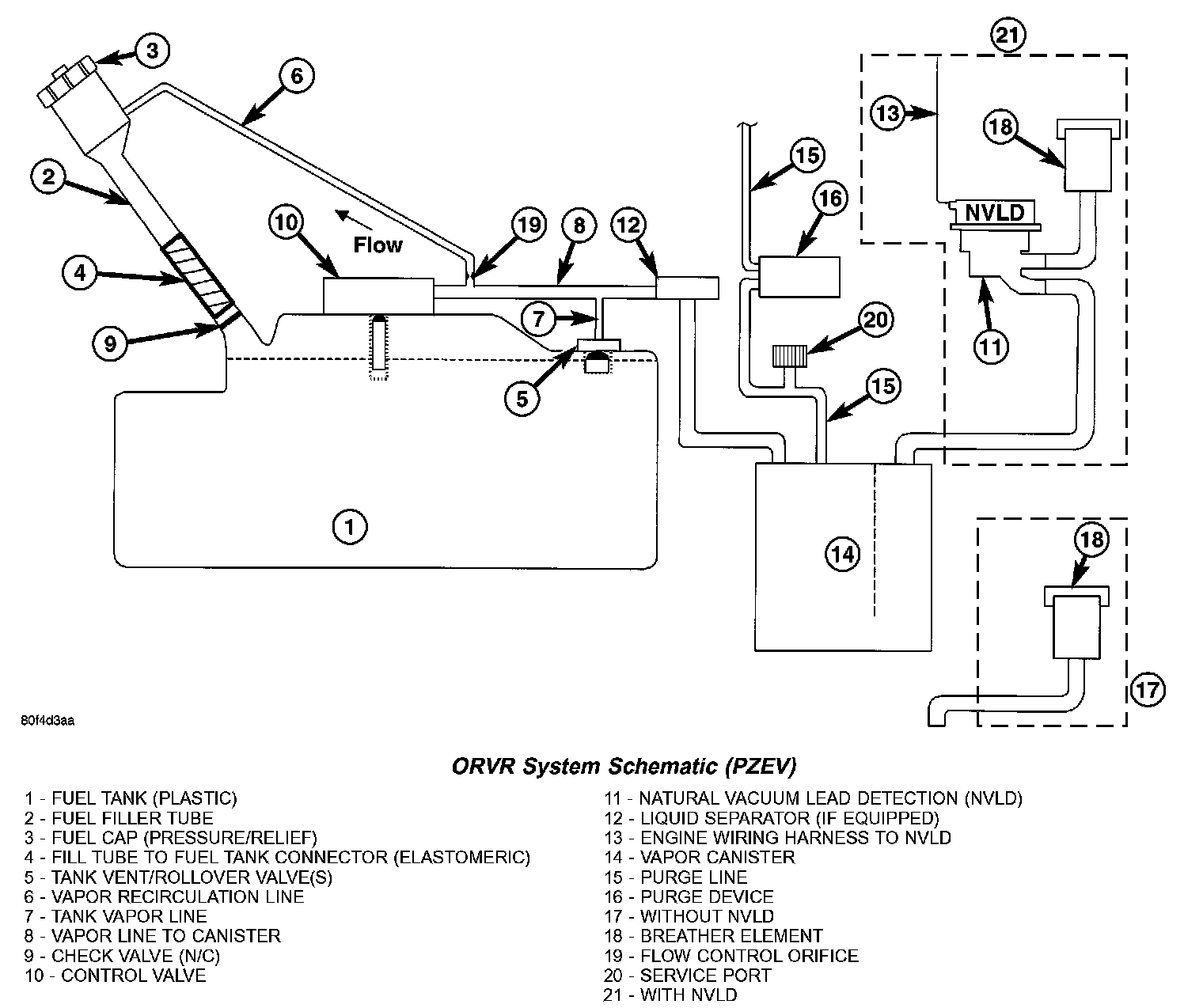

ORVR System Schematic (PZEV):
